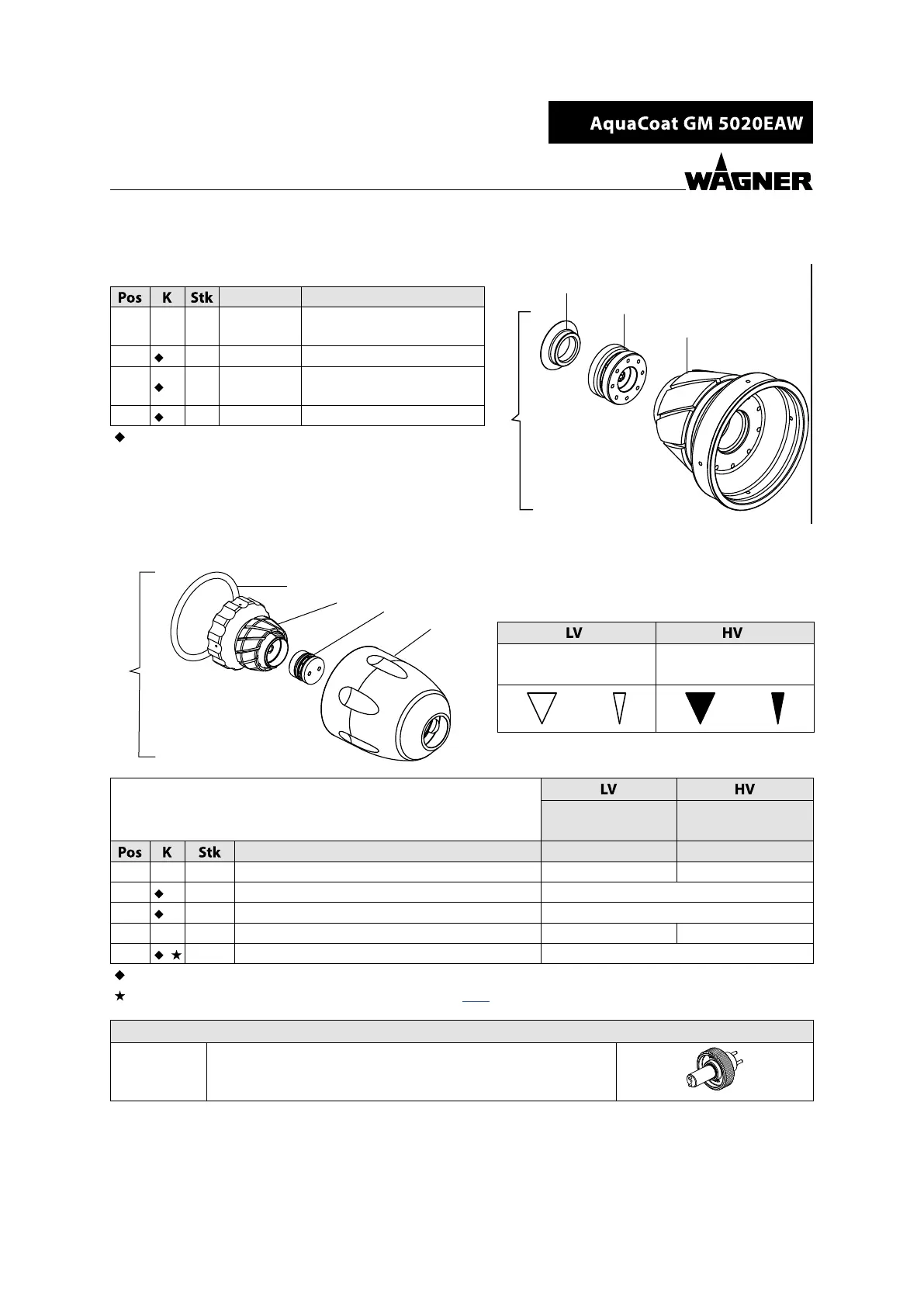

OPERATING MANUAL
VERSION 02/2018 ORDER NUMBER DOC 2366717
14.5.1.2 AWR 5000 (D12) NOZZLE
AWR 5000 (D12) nozzle spare parts list
B_03264
4
3
2
1
Order No. Designation
1 1 2315051
Nozzle, complete AWR 5000
(D12)
2
1 2327661 Nozzle, AR (D12)
3
1 2327667
Nozzle attachment, AWR
(D12)
4
1 2327663 Air diuser, AR (D12)
= Wearing parts
14.5.2 ADJUSTABLE EAWRV 5000 ROUND JET NOZZLES
B_05980
1
3
2
5
4
Markings on union nut
Low-viscosity (LV)
products
High-viscosity (HV)
products
B_05984
B_05985
EAWRV 5000 spare parts list
Low-viscosity (LV)
products
High-viscosity (HV)
products
Designation Order No. Order No.
1 1 Nozzle set, EAWRV 5000 2366998 2366997
2
1 Nozzle, EARV 2361273
3
1 Nozzle insert, EAWRV 2366986
4 1 Union nut, EARV 2361272 2365978
5
1 O-ring, sheathed 2311217
= Wearing parts
= Included in GM 5020EAW service set. See Chapter 14.4.
Mounting tool
353210 Air nozzle spanner
B_00117
