Je bekijkt pagina 119 van 136
119
OPERATING MANUAL
VERSION 02/2018 ORDER NUMBER DOC 2366717

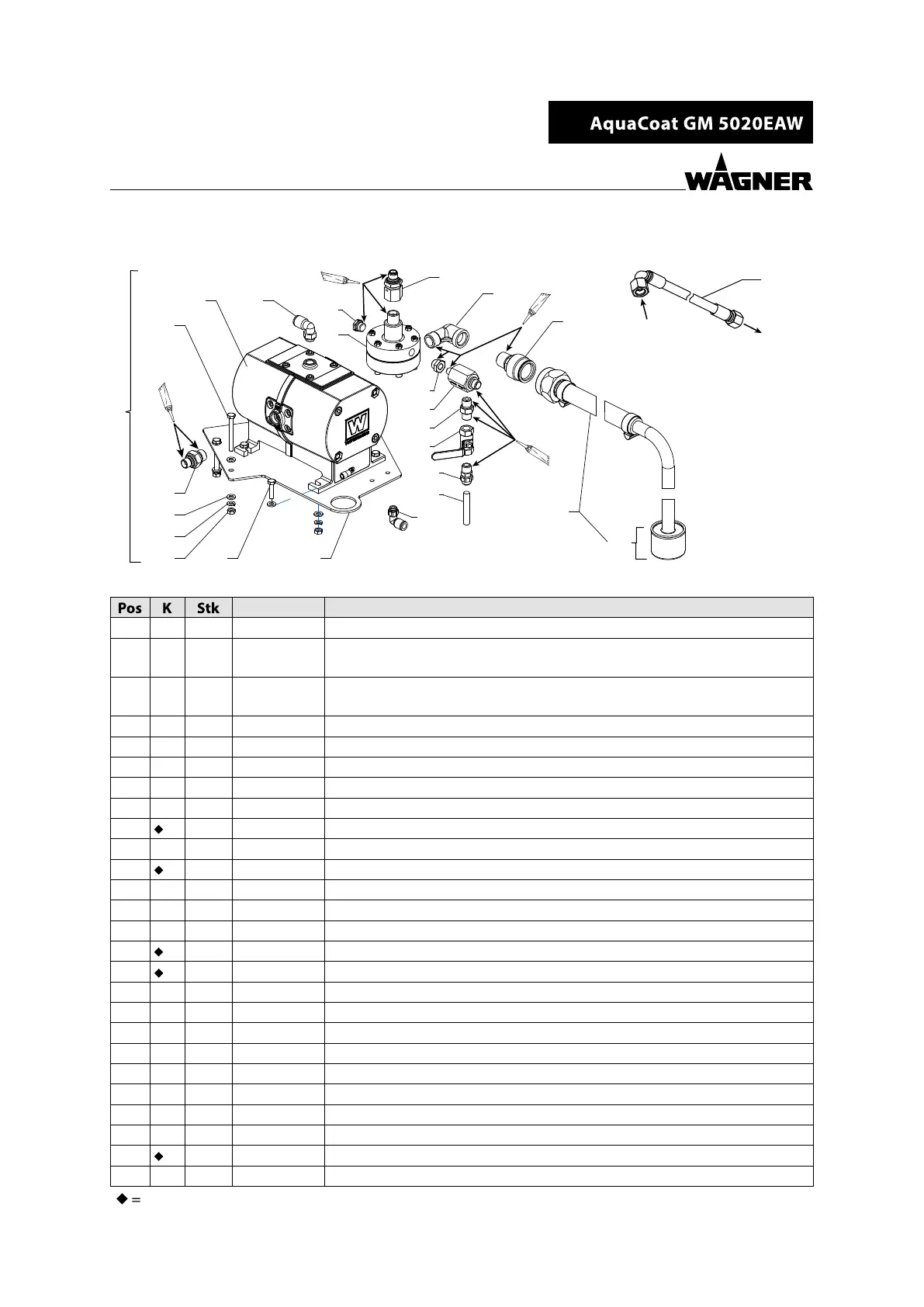

14.3.2 DD10 SET WITH PRODUCT PRESSURE REGULATOR
B_06782
17
1
13
5
14
30
3
4
6
7
8
9
10
12
1819
20
21
22
23
30
30
30
11
16
15
28
Pos 22
Pos 5
2 24
DD10 set spare parts list for AquaCoat with product pressure regulator
Order No. Designation
1 1 2390123 DD10 set for AquaCoat with product pressure regulator
2 1 2368651
Double diaphragm pump, TOPFINISH DD10
Refer to pump's operating manual for details
3 1 T0170.00BI
MPR 40/0.5-8 bar pneumatic SSt
Refer to product pressure regulator's operating manual for details
4 1 9998274 Threaded plug, G1/4"
5 1 2331971 Fitting, SF-FM-G3/8-G1/4-530 bar-SSt
6 1 9985559 Reducing tting
7 1 2372632 Fitting, DF-MM-R1/8-G1/4-350 bar
8 1 2325839 Fitting, DF-MM-R1/4-R1/4-530 bar-SSt
9
1 M513.00IA Ball valve, 1/4'' SS
10 1 M057.07 Fitting, 1/4"x8"
11
0.1 m S103.07 Hose
12 1 9992757 Male stud elbow, 8-1/8
13 1 2315783 Fitting, EF-MF-R1/2-G1/2-SSt
5 1 2329560 Fitting, DF-MM-R1/2"-M36-PN15-SSt
15
1 2324110 Suction hose, complete DN16-SSt
16
1 2323396 Suction lter, DN16-18mesh-SSt
17 1 2372633 Mounting plate
18 4 9900224 Hexagon screw without shaft
19 8 9910102 Hexagon nut
20 8 9921502 Spring washer
21 16 9920103 Washer
22 1 2325826 Fitting, DF-MM-G3/8-G1/4-530 bar-SSt
23 4 3061695 Hexagon screw without shaft
24 1 9999208 Male stud elbow, 10-1/4
28
1 2333833 HP hose, complete
30 1 9992831 Loctite® 542 - 50 ml
Wearing parts
