118
OPERATING MANUAL
VERSION 02/2018 ORDER NUMBER DOC 2366717
14.3 PUMP SETS

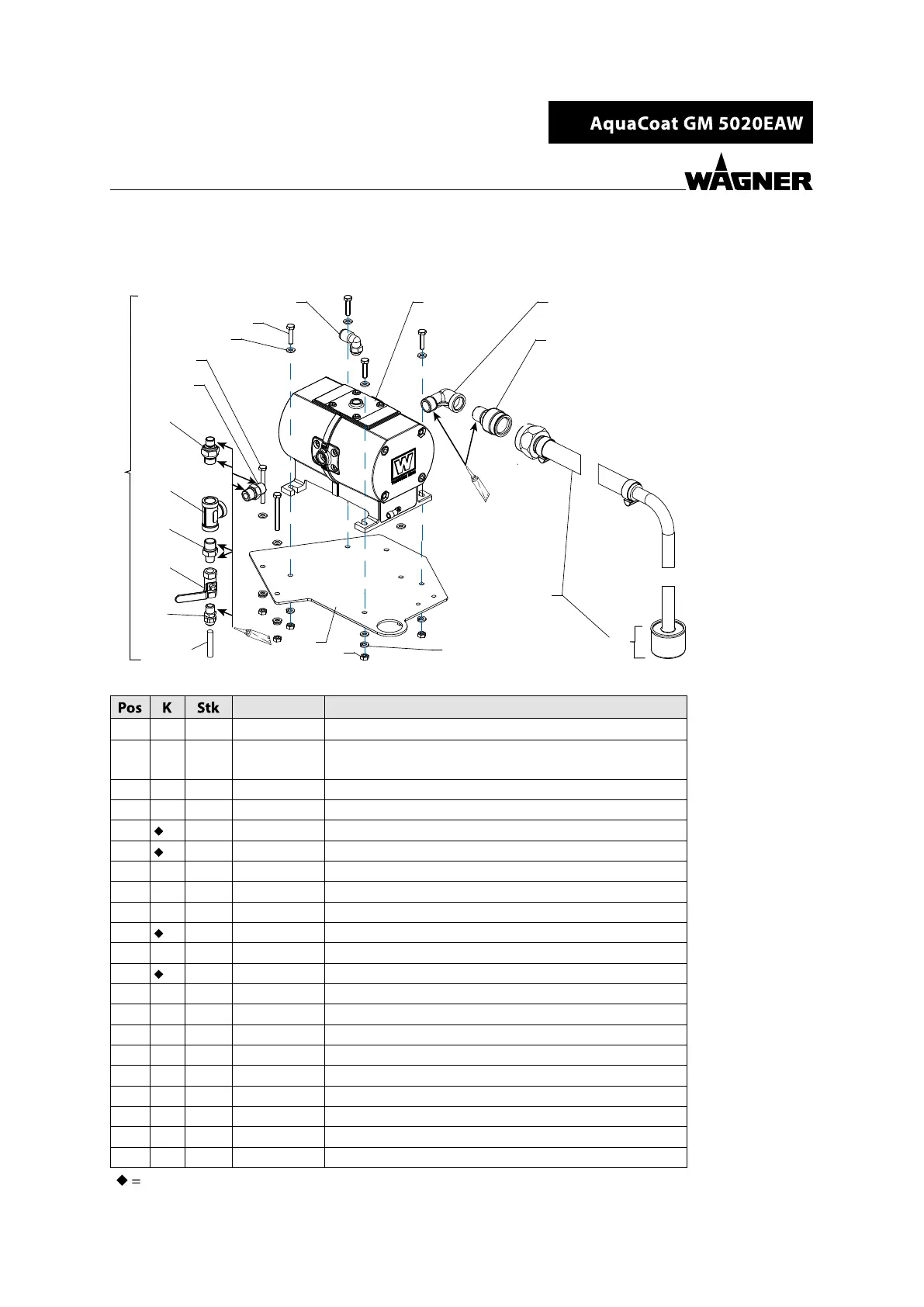

14.3.1 DD10 SET
B_06765
11
9
7
1
2
4
3
30
12
13
14
15
16
17
18
19
30
10
20
6
5
8
DD10 set spare parts list for AquaCoat
Order No. Designation
1 1 2364024 DD10 set for AquaCoat
2 1 2368651
Double diaphragm pump, TOPFINISH DD10
Refer to pump's operating manual for details
3 1 2315783 Fitting, EF-MF-R1/2-G1/2-SSt
4 1 2329560 Fitting, DF-MM-R1/2"-M36-PN15-SSt
5
1 2324110 Suction hose, complete DN16-SSt
6
1 2323396 Suction lter, DN16-18mesh-SSt
7 8 9921502 Spring washer
8 8 9910102 Hexagon nut
9 1 2372633 Mounting plate
10
0.1 m S103.07N Hose, PA12 D8 anti-static
11 1 M057.07 Fitting, 1/4"x8"
12
1 M513.00IA Ball valve, 1/4'' SS
13 1 2328291 Fitting, DF-MM-R3/8-R1/4-530 bar-SSt
14 1 9985789 T-piece
15 1 2325826 Fitting, DF-MM-G3/8-G1/4-530 bar-SSt
16 1 2368425 Fitting, DF-MM-R3/8-R3/8-530 bar-SSt
17 4 3061695 Hexagon screw without shaft
18 16 9920103 Washer
19 4 9900224 Hexagon screw without shaft
20 1 9999208 Male stud elbow, 10-1/4
30 1 9992831 Loctite® 542 - 50 ml
Wearing parts
