OPERATING MANUAL
VERSION 02/2018 ORDER NUMBER DOC 2366717
B_05947
71
72
73
23
74
75
93
80
76
77
24
78
25
53
79
24
24
53
W
Cabinet door
Cabinet
Locking device for cabinet door
(View from top)
B_06768
95
96
97
98

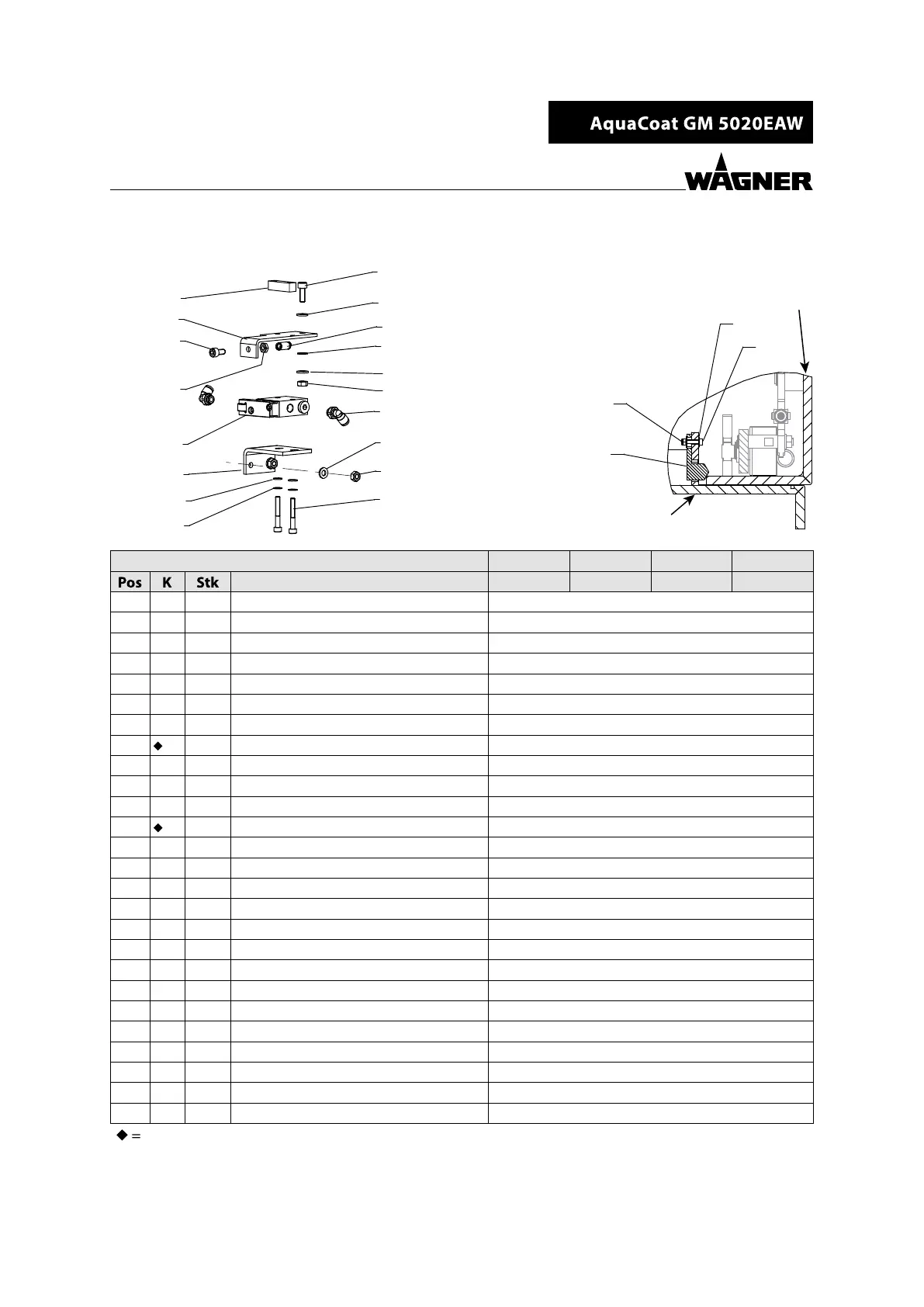

Spare parts list for AquaCoat basic device 5020 5020G 5010 5010G
Designation Order No. Order No. Order No. Order No.
71 1 Valve holder 2362721
72 1 Roller lever valve, RS-3-1/8 2362775
73 1 Hexagon nut, 0.5 d 9911005
74 1 Grounding plate 2362722
75 2 Washer 9920101
76 2 Hexagon socket cylinder head screw 9907001
77 1 Hexagon socket cylinder head screw 9900325
78
1 Pressure spring, 1.0x8.0 L=17 123357
79 3 Male stud elbow 6-1/8, Ex 9998110
80 1 Threaded anchor plate 2373026
81 1 Shorting member 2358920
82
1 Standard cylinder, ESNU-20-50-P-A 2359249
83 1 Hexagon screw without shaft 9907222
84 1 AquaCoat resistor, 3 GOhm 353864
85 1 Roll snapper 2362973
86 2 Washer 9920114
87 2 Screws, PT llister head 9905504
88 1 Rod clevis, SG-M8 2359255
89 2 Washer 2358919
90 3 Securing ring 9998144
91 4 Hexagon socket cylinder head screw 9900315
93 2 Lock washer internal teeth 9922106
95 4 Washer 9920308
96 2 Hexagon socket cylinder head screw 9906004
97 2 Spring element 2373035
98 2 Self-locking hexagon nut 9910202
Wearing parts
