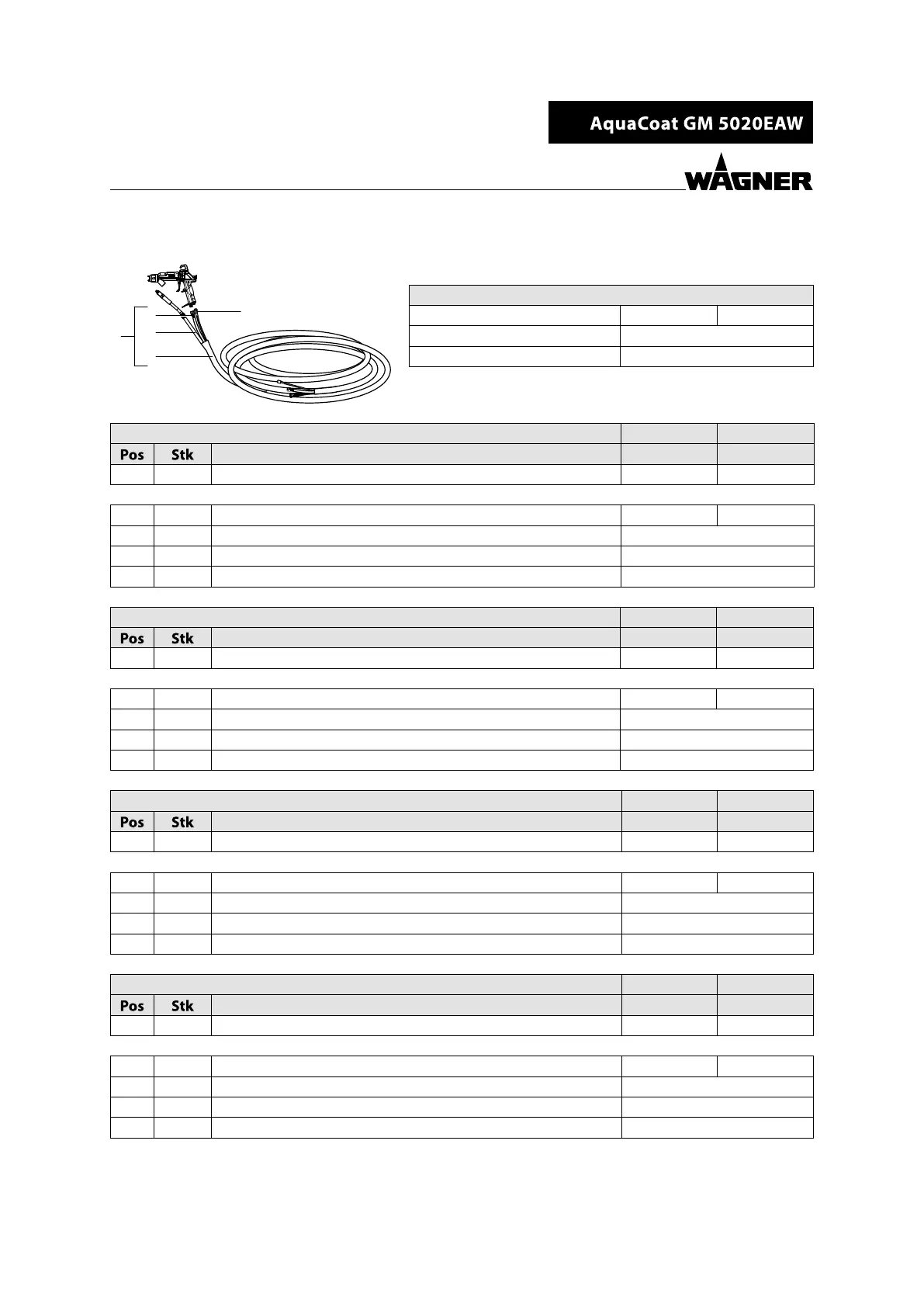

OPERATING MANUAL
VERSION 02/2018 ORDER NUMBER DOC 2366717
13.4 HOSES AND CABLES
2
3
4
5
B_03512
1
Note:
Product hose
Inside diameter DN 6 DN 3
Product FEP
Nominal pressure 2 MPa; 20 bar; 290 psi
7.5 m; 24.6 ft DN 6 DN 3
Designation Order No. Order No.
1 1 Hose set, GM 5000EAW (7.5 m; 24.6 ft) 2339183 2363105
Consists of:
2 1 Product hose, complete EACW (7.5 m; 24.6 ft) 2309907 2363037
3 1 Air hose, complete DN 8 (7.5 m; 24.6 ft) 2345336
4 1 Gun cable, GM 5000E (7.5 m; 24.6 ft) 2339156
5 8 m Protective hose mesh, PP30 (8 m; 26.2 ft) 3676437
10 m; 32.8 ft DN 6 DN 3
Designation Order No. Order No.
1 1 Hose set, GM 5000EAW (10 m; 32.8 ft) 2339184 2363106
Consists of:
2 1 Product hose, complete EACW (10 m; 32.8 ft) 2309909 2363038
3 1 Air hose, complete DN 8 (10 m; 32.8 ft) 2345337
4 1 Gun cable, GM 5000E (10 m; 32.8 ft) 2339157
5 10.5 m Protective hose mesh, PP30 (10.5 m; 34.4 ft) 3676437
15 m; 49.2 ft DN 6 DN 3
Designation Order No. Order No.
1 1 Hose set, GM 5000EAW (15 m; 49.2 ft) 2339185 2363107
Consists of:
2 1 Product hose, complete EACW (15 m; 49.2 ft) 2309910 2363039
3 1 Air hose, complete DN 8 (15 m; 49.2 ft) 2345338
4 1 Gun cable, GM 5000E (15 m; 49.2 ft) 2339158
5 15.5 m Protective hose mesh, PP30 (15.5 m; 50.8 ft) 3676437
20 m; 65.6 ft DN 6 DN 3
Designation Order No. Order No.
1 1 Hose set, GM 5000EAW (20 m; 65.6 ft) 2339186 2363108
Consists of:
2 1 Product hose, complete EACW (20 m; 65.6 ft) 2309911 2363040
3 1 Air hose, complete DN 8 (20 m; 65.6 ft) 2345339
4 1 Gun cable, GM 5000E (20 m; 65.6 ft) 2339159
5 20.5 m Protective hose mesh, PP30 (20.5 m; 67.2 ft) 3676437
