Technical Manual
WDGA with CANopen Interface
8 - Setting-up the encoder
© Wachendorff Automation GmbH & Co. KG
40

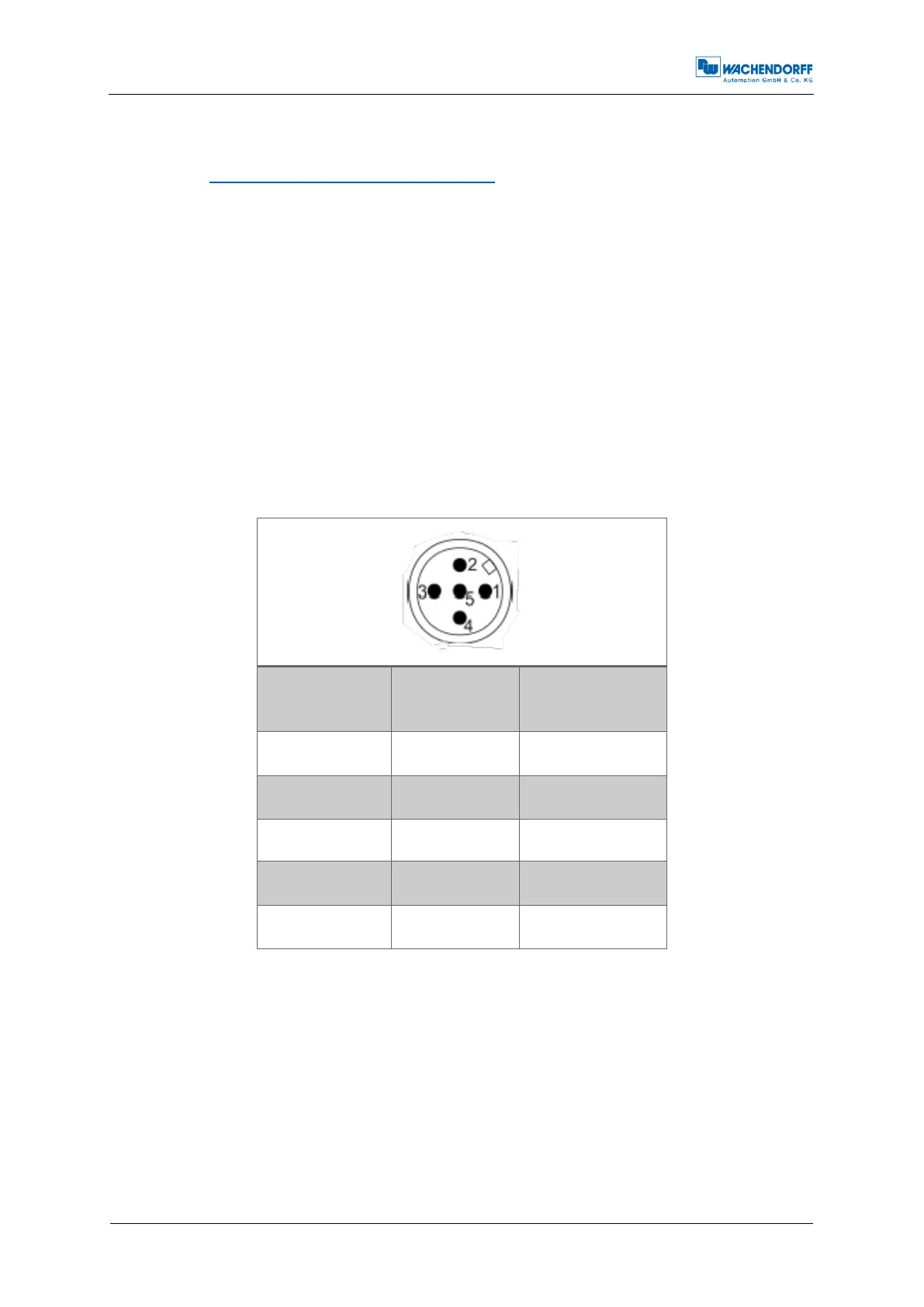

Use the M12 sensor connector or the stub cable to connect the encoder with the bus.
We recommend the use of a T-adapter. Terminations and other accessories are also
available at www.wachendorff-automation.com.
Pin assignment (according to CiA 303):
(Variations possible (e.g. 58V))
Definition
Wire colour
(Encoder
with cable)
Pin
(Encoder with
connector)
Supply
U
B
(10-30V)
brown
2
Ground
(GND)
white
3
CAN
High
green
4
CAN
Low
yellow
5
CAN
GND
grey
1
Table 8.1: Pin and cable assignment
