Technical Manual
WDGA with EtherNet/IP
6 - Commissioning
© Wachendorff Automation GmbH & Co. KG
50
If you have selected the correct file, you should not have received an error message
now. See Figure 6.13. Click "Next" again.

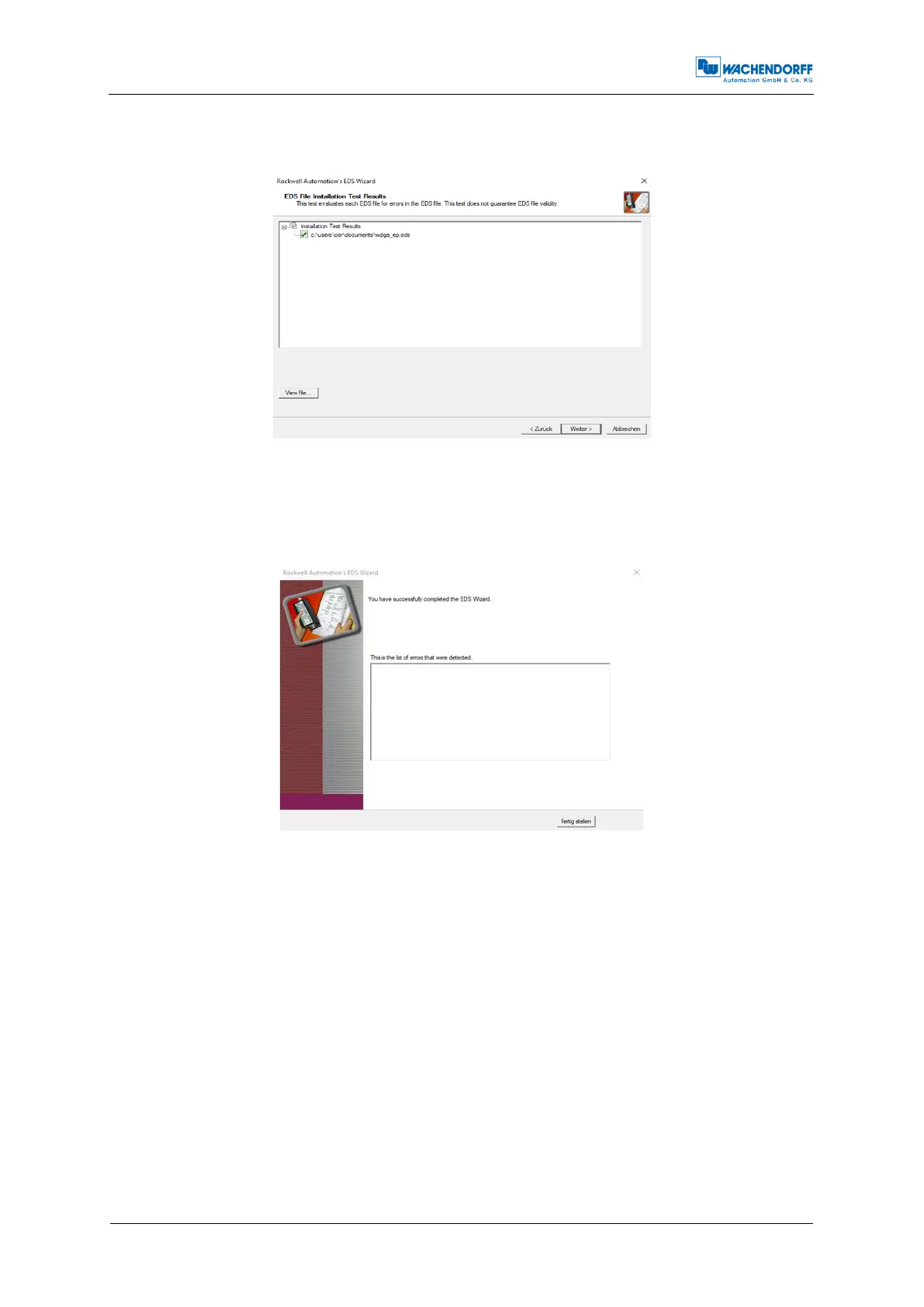

Figure 6.13: EDS installation
Now finish the installation by clicking on "Next" in the next two windows until you reach
the window shown in Figure 6.14. Now click on "Finish". The installation of the EDS file
is now finished.
Figure 6.14: Installation successful
Now select the tab "A1/A2, Ethernet" in the left column of the Studio 5000 project
navigation. The hardware view opens, and the hardware catalogue is now visible in
the new window.
