Technical Manual
WDGA with CANopen Interface
3 - Device description
© Wachendorff Automation GmbH & Co. KG
6
3.3 LED status indicator and signal codes
Definition of LED indication types:
= red LED indications = "Physical Layer" information
= green LED indications = "NMT-Status" information
= LED off
→ = continue like first cycle
LED-Indications [ms]:
Green ON
Encoder is in
OPERATIONAL
state
0
500
1000
1500
2000
2500
Green blinking
Encoder is in
PRE-
OPERATIONAL
state us
0
500
1000
1500
2000
2500
Green
single flash
Encoder is
in
STOPPED
state
0
500
1000
1500
2000
2500
Red ON
NOT ready /
BUS-OFF
0
500
1000
1500
2000
2500
Red single
flash
Warning,
occurrence
of error
frames
0
500
1000
1500
2000
2500

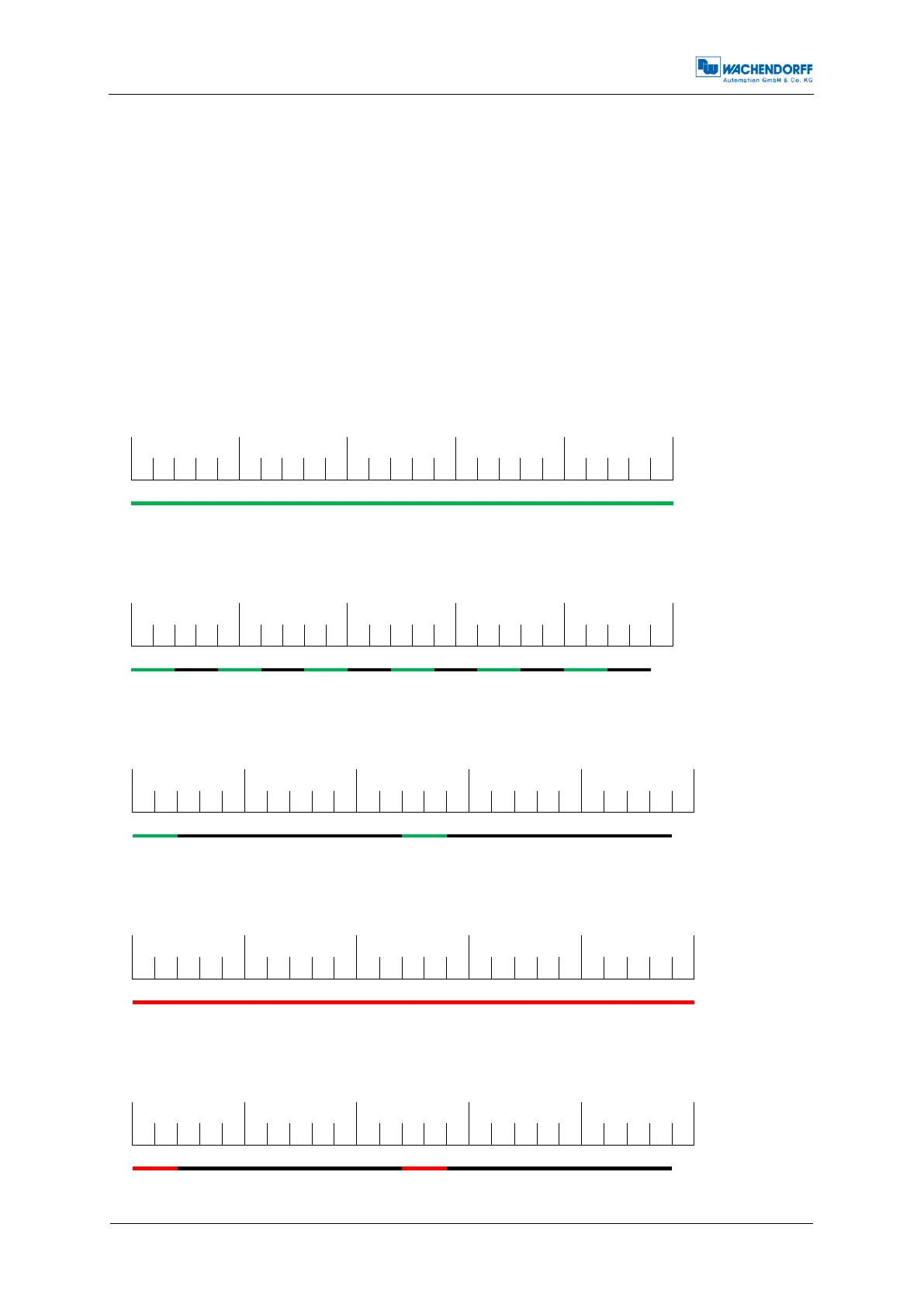

Figure 3.2: LED indications 1
