Technical Manual
speedMATE
5 - Miscellaneous
© Wachendorff Automation GmbH & Co. KG
21
5 Miscellaneous
5.1 Maintenance and cleaning
The speedMATE is maintenance-free. It is recommended to check the sensor window
for damage or contamination at regular intervals. If necessary, remove dust with a
brush. Then clean carefully by dabbing with a lint-free cloth soaked in alcohol. Avoid
scratches or streaks. Antistatic plastic cleaner and special optical cloths are
recommended for cleaning.
5.2 Notes
The greater the distance in relation to the respective surface, the smaller the
measurement deviations caused by this.
Vibrations must be avoided.
The sensor must be mounted perpendicular to the surface to be measured and the
measuring axis must be aligned parallel to the direction of movement - otherwise there
will be a systematic deviation (see illustration)
The sensor must be mounted at a distance of between 15 and 60 mm. Depending on
the surface condition, the optimum value is visualized by a "green" display on LED 2.

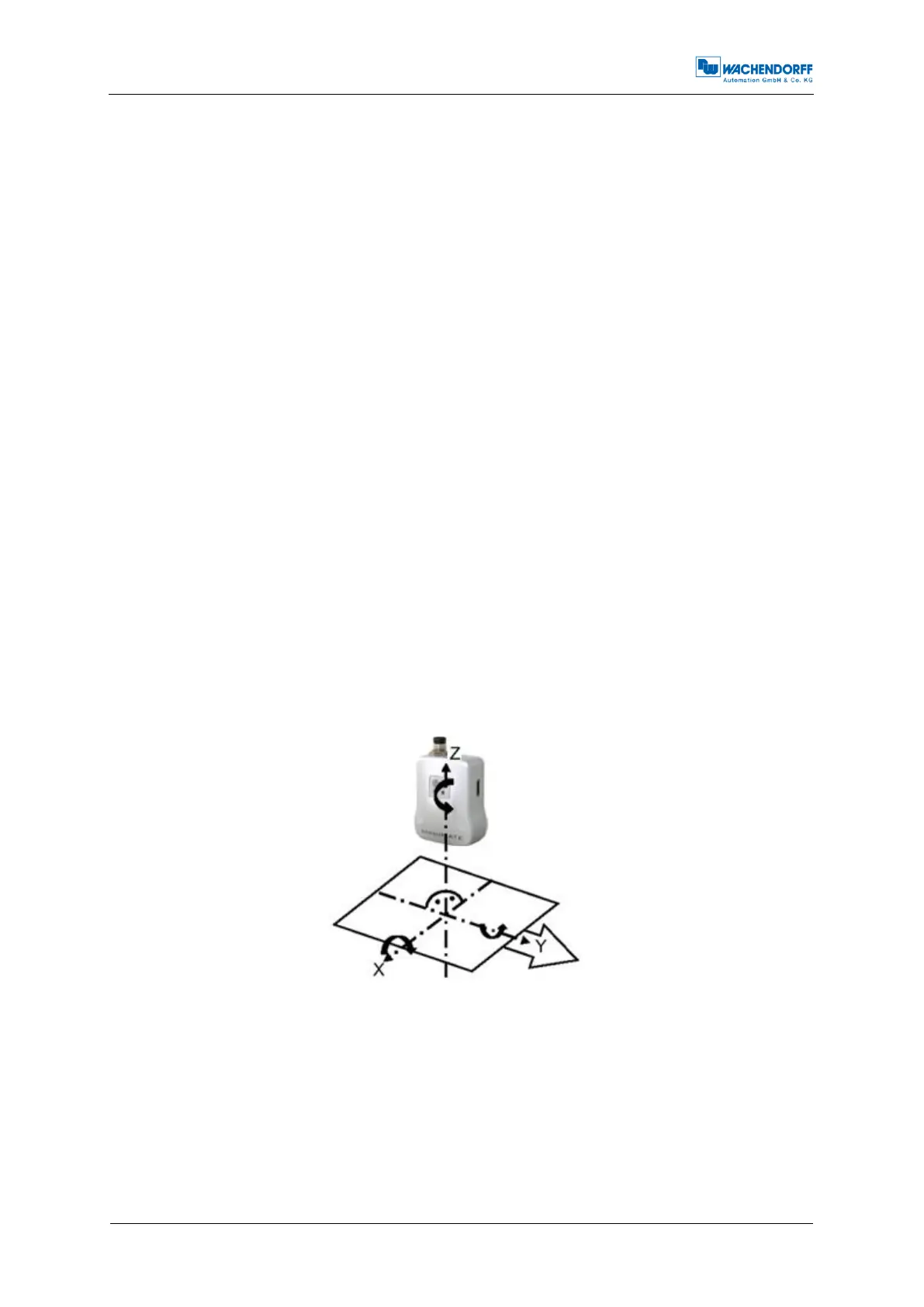

Figure 5.1: Directions of movement
