thermostat and the solenoid.
iii. The solenoid will close the gas valve and shutoff gas to the burner.
iv. Pilot remains lit.
5. Fan control switch to OFF.
A. Power is removed from one side of the convection motor.
i. The centrifugal switch will open and power will be removed from the
solenoid and the thermostat.
ii. The solenoid will close the gas valve and shutoff the gas to the burner.
iii. Pilot remains lit.

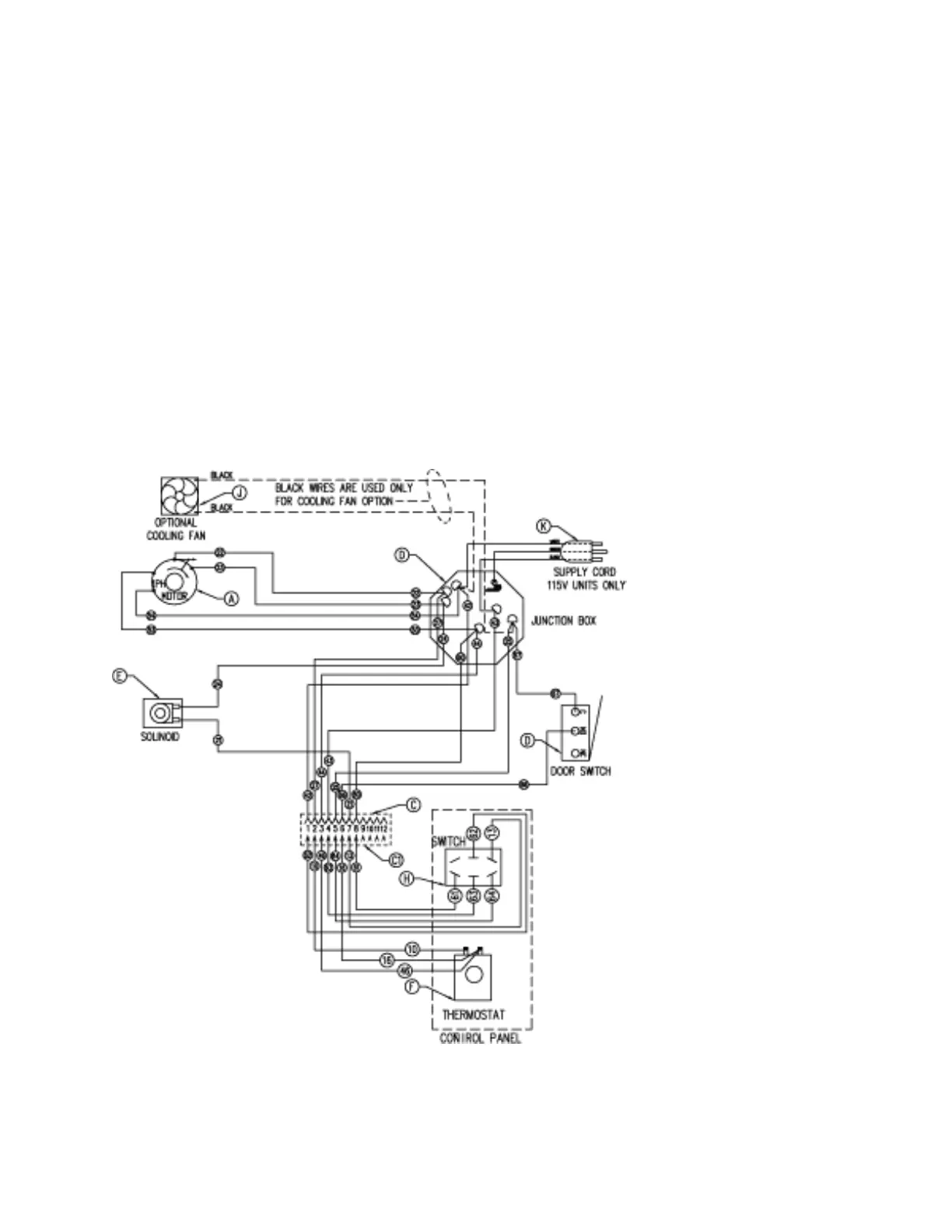

WIRING DIAGRAMS
Figure 41: 120V C Model
