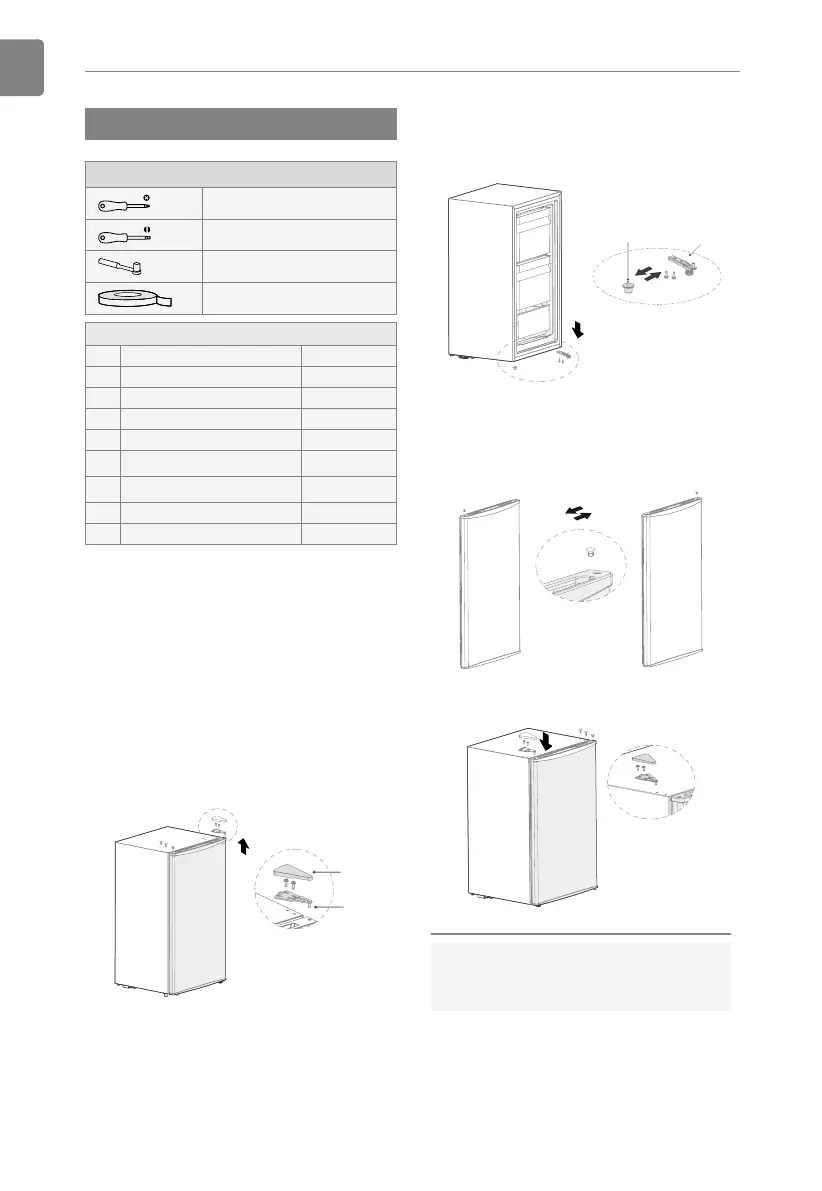

Install Instruction
Door Right-Left Change
List of tools to be provided by the user
Cross screwdriver
Thin-blade screwdriver
5/16″ socket spanner
Masking tape
Parts to be used for door reverse
SN Parts Quantity
1 Upper hinge 1
2 Hinge cover 1
3 Tapping locking screw 5
4 Pin 2
5 Lower hinge assembly 1
6 Leveling foot 1
7 Tapping screw 1
8 Hole cap 1
Note:
(1.2.3.4.5.6)Pre-installed on the refrigerator, still
used when door is reversed.
(7.8)Pre-installed on door end caps, still used when
door is reversed.
STEP
1. Power off the refrigerator, and remove all
objects;
2. Dismantle the hinge cover, screws ,upper
hinge and shaft sleave , and remove the
hole cap and pins from the other side;
Hinge cover
Upper hinge
3. Remove the door first, then remove the
lower hinge assembly and leveling foot,
interchange the positions of the lower
hinge assembly and levelling foot and
install them;
4. Dismantle the stopper under the door,
then assemble the stopper on the other
side;
Lower hinge
assembly
Leveling
foot
5. Install the door on the lower hinge
assembly, and then install the upper
hinge, hinge cover, pins and hole cap in
sequence.
The picture above is only for reference. The actual
configuration will depend on the physical product
or statement by the distributor
