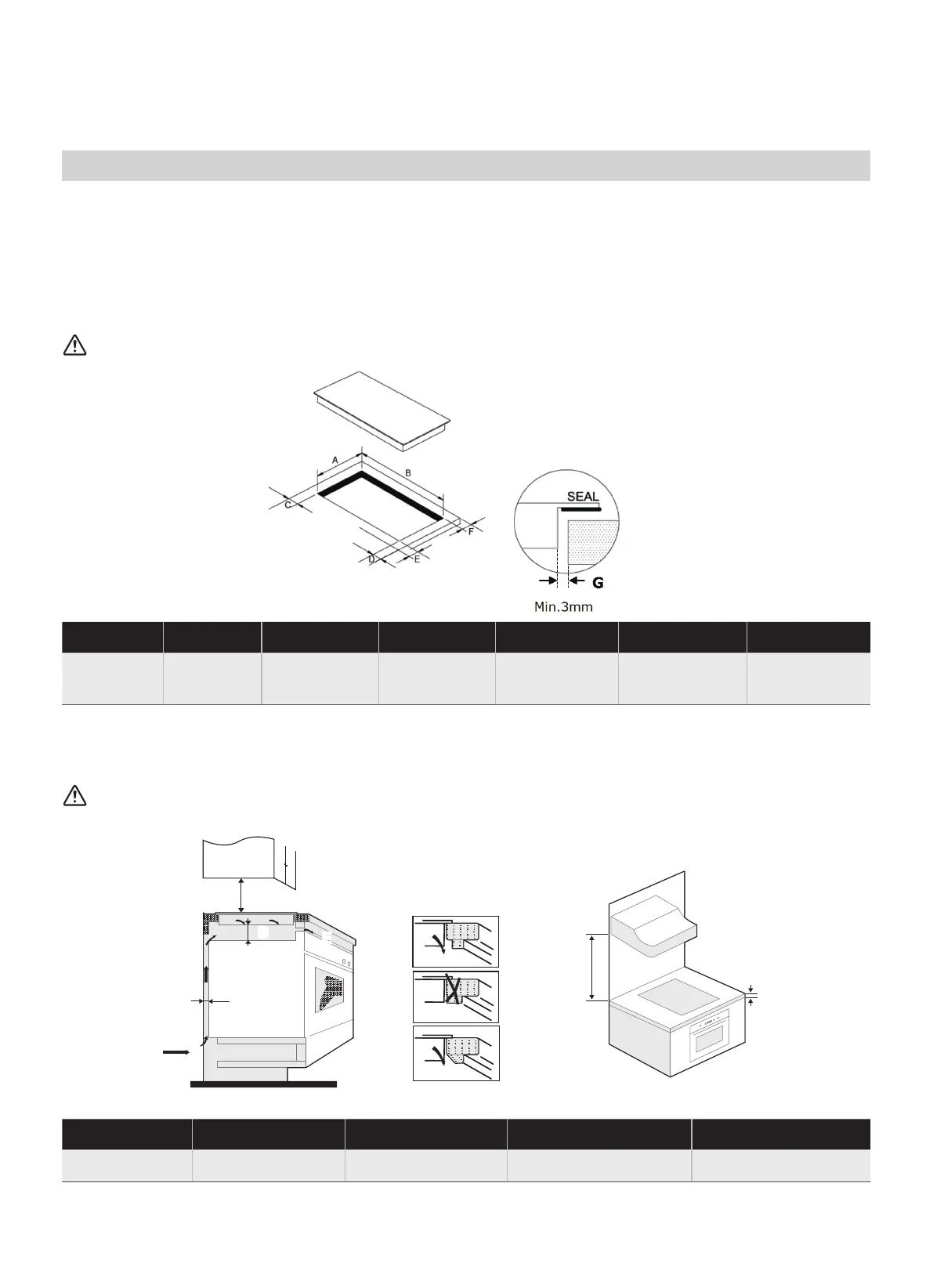

Cut out the work surface according to the sizes shown in the drawing.
For the purpose of installation and use, a minimum of 50mm space shall be preserved around the hole.
Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant and insulated
work surface material (Wood and similar fibrous or hygroscopic material shall not be used as work
surface material unless impregnated) to avoid the electrical shock and larger deformation caused by
the heat radiation from the hotplate. As shown below:
Under any circumstances, make sure the Induction cooker hob is well ventilated and the air inlet and
outlet are not blocked. Ensure the Induction cooker hob is in good work state. As shown below.
Selection of Installation Equipment
PRODUCT INSTALLATION
Note: The safety distance between the sides of the hob and the inner surfaces of the worktop
should be at least 3mm.
Note: The safety distance between the hotplate and the cupboard above the hotplate should be at
least 760mm.
268+4
A(mm)
B(mm)
50 min.
C(mm)
50 min.
D(mm)
50 min.
E(mm)
50 min.
F(mm)
3mm min.
G
760
A(mm)
50 min.
B(mm)
20 min.
C(mm)
Air intake
D
Air exit 5mm
E
A
B
EE
C
D
wall
Min.30mm
760mm
-0
500+4
-0
