4.8.2 Parallel Communication line Connection

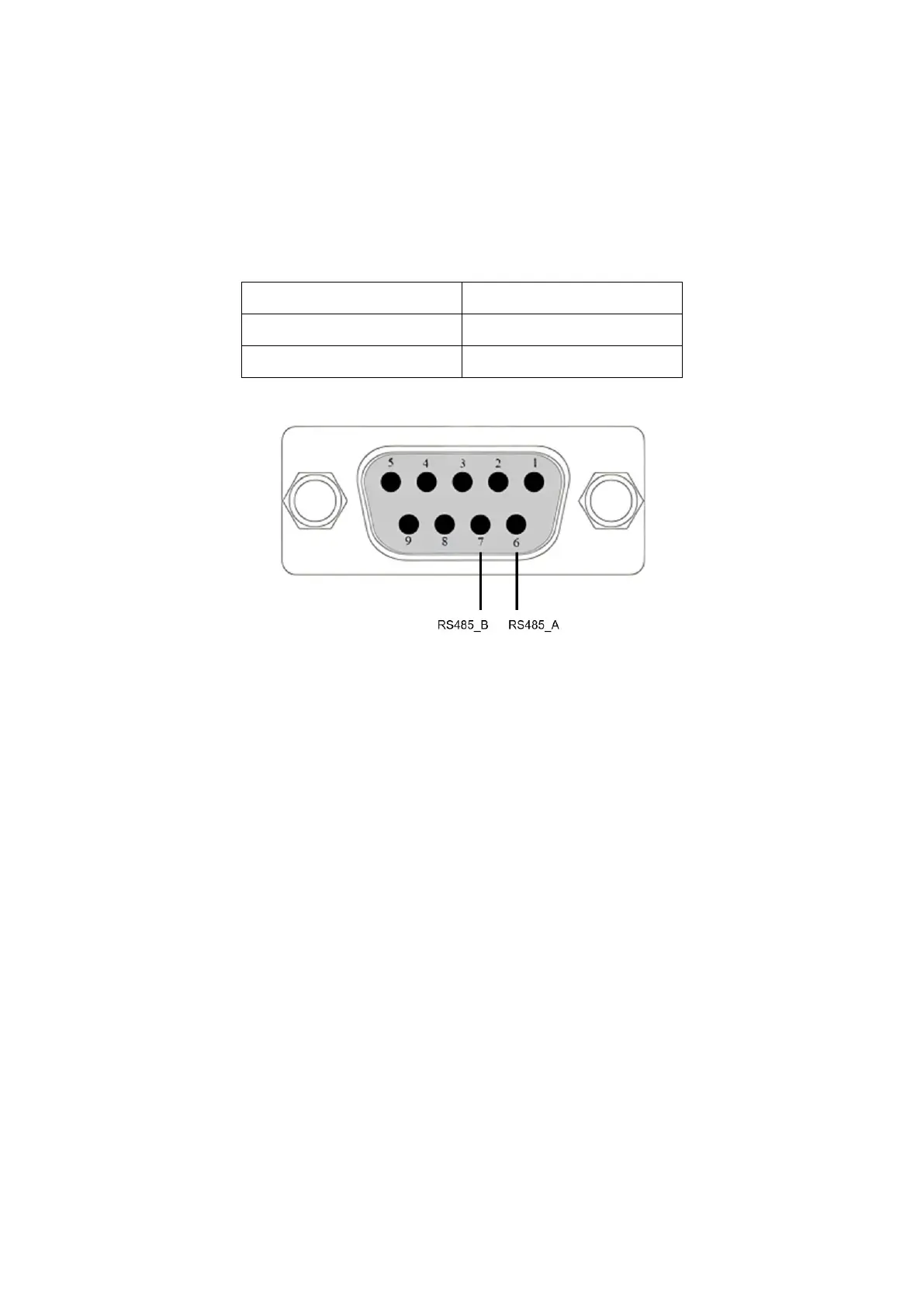

The EL-1000 series parallel communication uses RS485. Users can
communicate through the DB9 interface, with the communication pins as
shown in the diagram below: Pin 6 and Pin 7.
Pin Function
Pin 6
RS485_A
Pin 7
RS485_B
4.8.3 Operating Instructions
First setting Master address
To set a unit as the master, go to the "System Settings" page on the
panel, and select "Master" under the "Master/Slave" option.
Then set the address (the default address for the master is 10).
Finally, select Enable Parallel.
Then, configure the addresses for the parallel slave
To set a unit as a slave, go to the "System Settings" page on the panel
and select "Slave" under the "Master/Slave" option.
Then, set the address (slave addresses range from 1 to 9, and it is
recommended to start from 1).
Finally, select Enable Parallel.
Set the current parameters on the master and power it on.
Finally, configure the relevant operating parameters (such as current,
resistance, power, etc.) in the master unit's parameter settings.
