Error! Use the Home tab to apply 标题 1 to the text that you want to appear
here..Error! Use the Home tab to apply 标题 1 to the text that you want to appear
here.
28

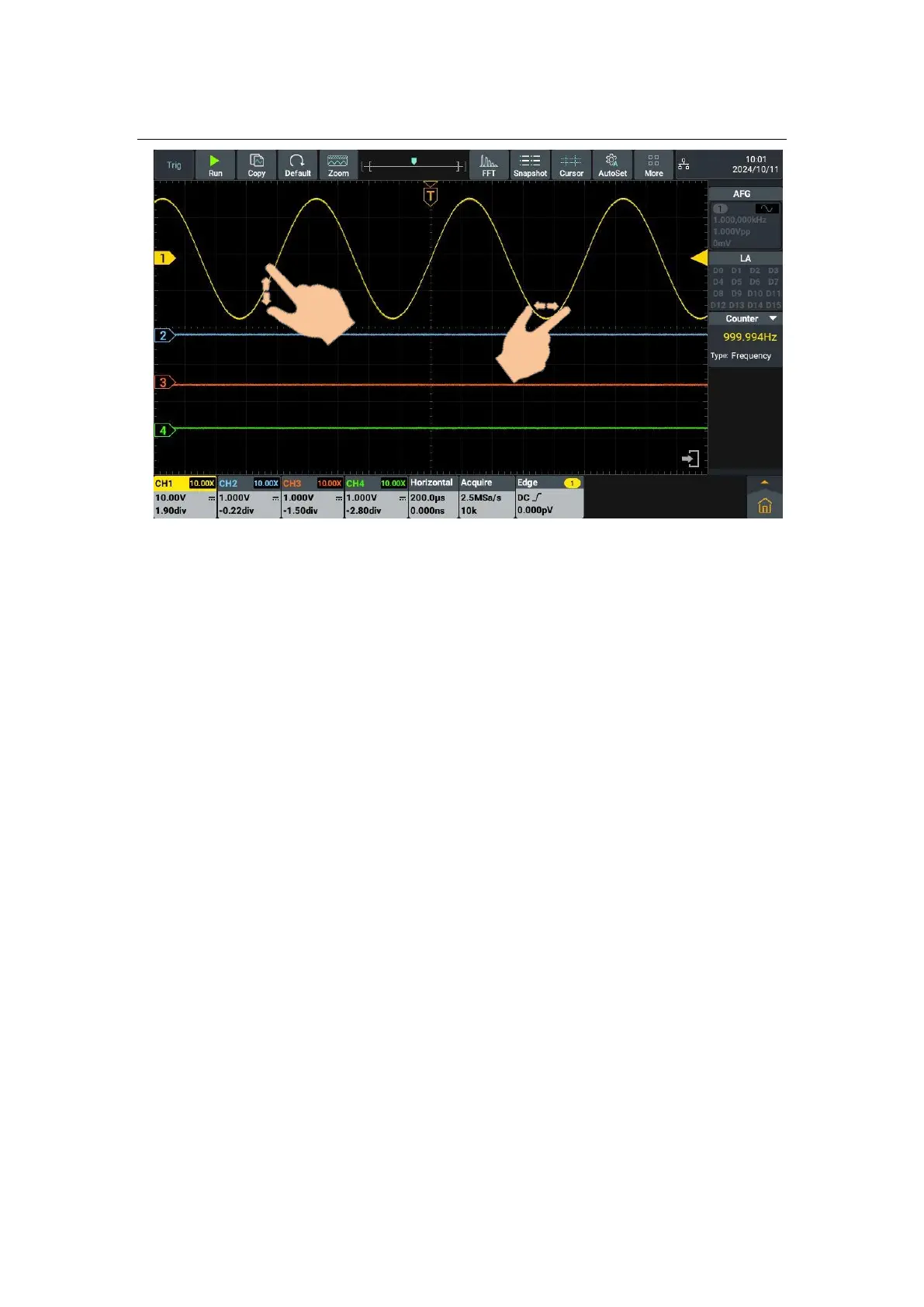

Pinching and pulling in the vertical
direction controls the voltage gear of
the current channel
The horizontal time base can be
controlled by pinching and pulling
apart along the horizontal direction
◼ In the waveform display area, double-click the screen and slide the hand
up and down/left and right to zoom the control voltage scale and time
base.
Operate The Touch Screen In Waveform Amplification
Mode
Press Horizontal Scale knob to enter the waveform zoom mode, the main
window is displayed at the top half of the screen and the amplified window is
displayed at the bottom half of the screen. The amplified window is the
amplified part of the main window that is selected.
