10
channel.
6. Horizontal control area: Contain two knobs.
⚫ “Horizontal Position” knob is to control the horizontal position triggered.
⚫ “Horizontal Scale” knob is to control time base scale.
7. Probe compensation: 3.3V/1kHz signal output.
8. Channel input port area.
9. LA single input port area.
10. USB Host Interface: When the oscilloscope is connected to an external
USB device as a “master device”, the USB Host interface is used to
transmit the data (Note: the devices that can be connected include a mouse,
keyboard, USB flash drive, etc.).
11. Instrument switch with memory (self-lock) switch and auto memory of last
shutdown; if the instrument is shut down by powering the supply off, there is
no need to press the switch to start it up after next power-on; if the
instrument is shut down by pressing the switch key, it is required to press
the switch key again to power it on.

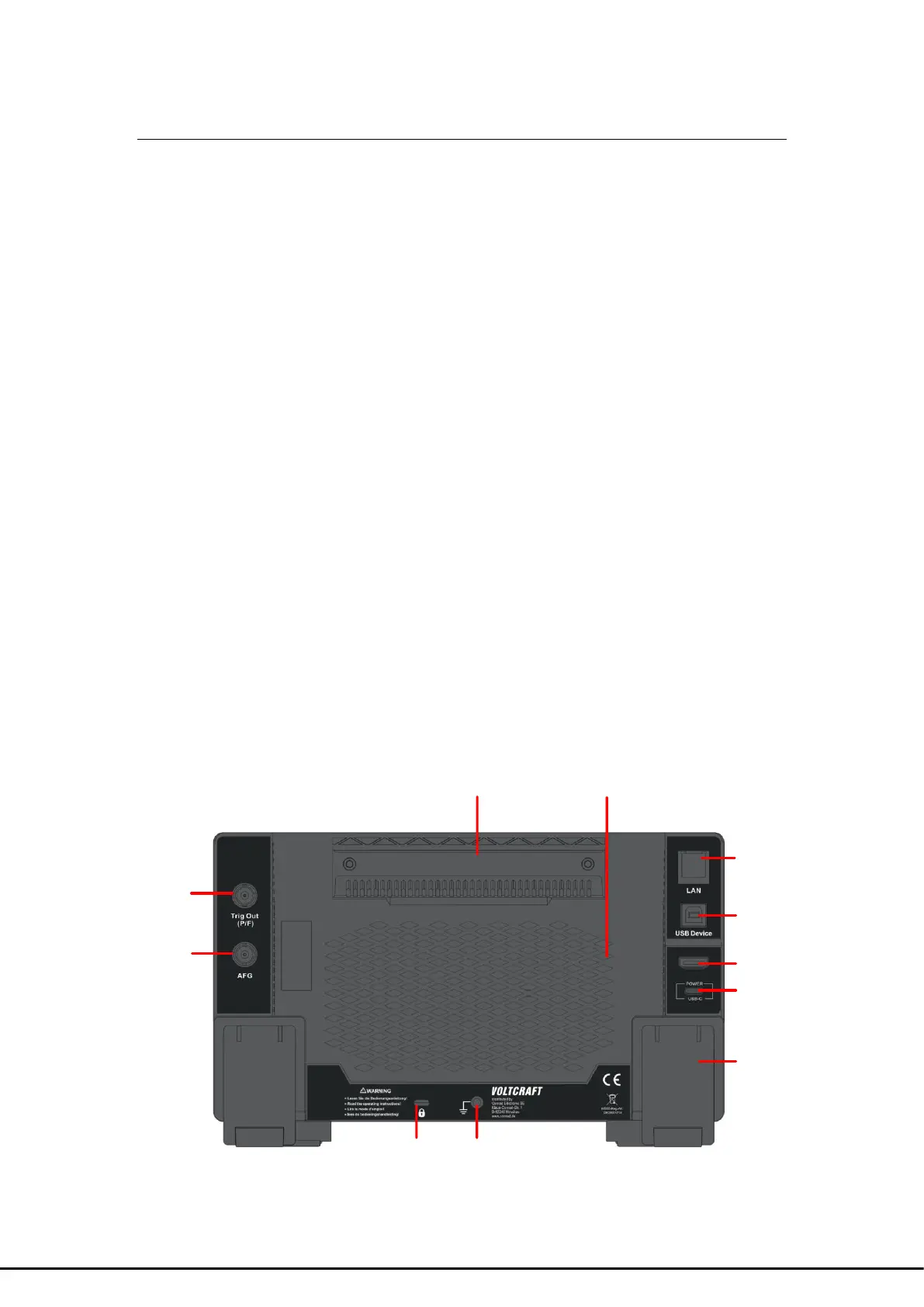

Rear Panel
11
10
9
8
7
6
5
4
3
2
1
