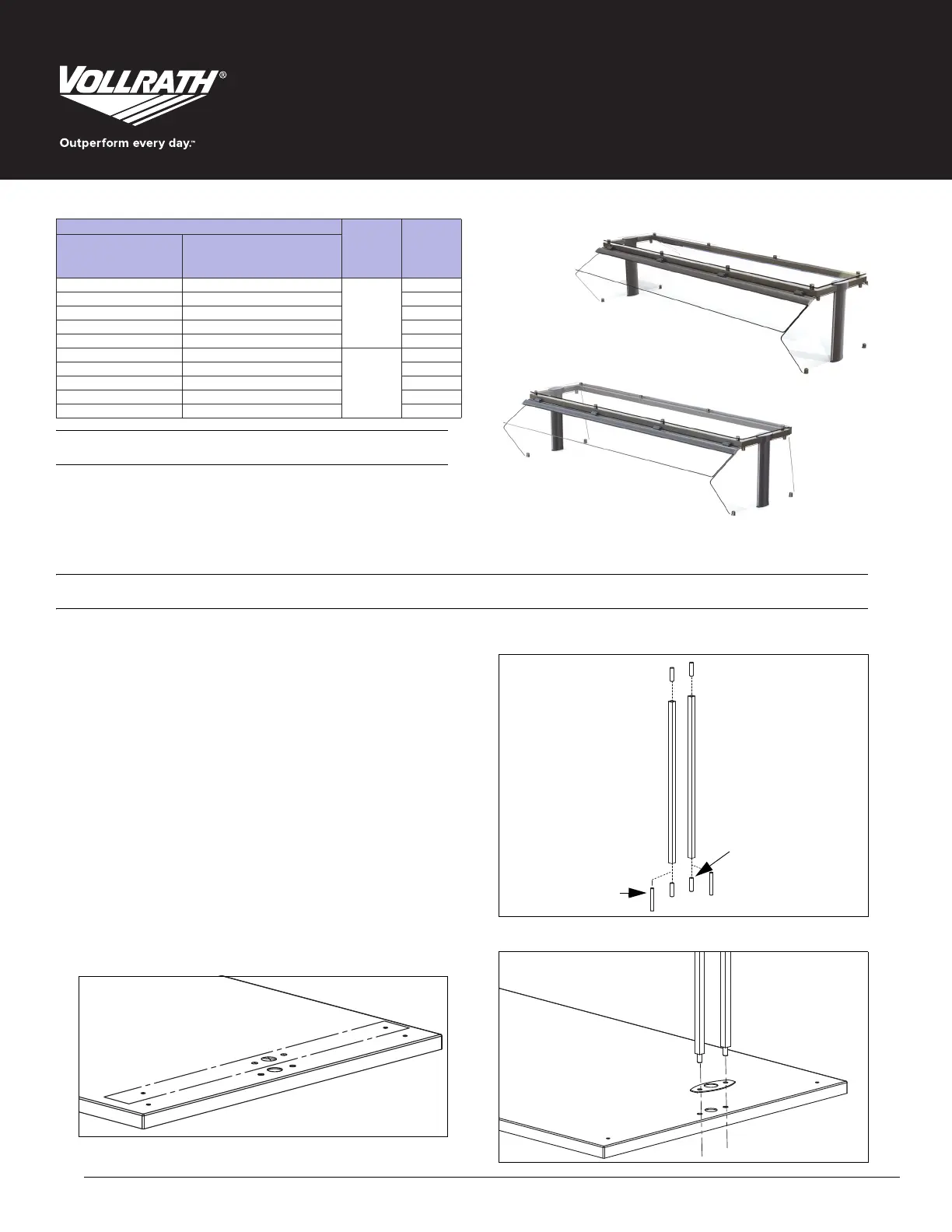

Installation Instructions
©
2017 The Vollrath Company L.L.C. Part No. 350588-1 ml 10/17/17
Low Profile Hinged Glass Breath Guards
Please register your product at Vollrath.com/ProductRegister
TABLE OF CONTENTS
Breath Guard Installation .............................................page 1
Single-Sided RetroFit Kit Installation ...........................page 5
Heat Strip Installation ..................................................page 7
Light Strip Installation .................................................page 8
BREATH GUARD INSTALLATION
Before You Begin
1. Download the specification sheet from Vollrath.com. You will need
to refer to this document for dimensions and NSF requirements.
2. Know the countertop manufacturer's requirements for preparing and
installing equipment into the countertop prior to starting installation.
Tools You Will Need
Drill Mounting Holes
NOTICE: Countertop materials require specific preparation. Refer to
the countertop manufacturer for instructions regarding the
proper installation of equipment into the material.
1. Place the cut out template over one end of the countertop. Follow the
instructions on the template.
2. Repeat step 1 on the other end of the countertop.
Assemble and Mount the Breath Guard
1. Assemble the tie rods.
2. Set the mounting gasket in place. Insert the tie rods through the
holes in the gasket and countertop.
Item No.
Style Length
For Signature Server
®
With Stainless Steel
Countertops
For Drop-ins and Signature
Server
®
With Non-Stainless
Steel Countertops
— LP55277
Double-
Sided
Buffet
2-Well/Pan
55278 LP55278 3-Well/Pan
55279 LP55279 4-Well/Pan
55280 LP55280 5-Well/Pan
55281 LP55281 6-Well/Pan
— LP55319
Single-
Sided
Buffet with
Top Shelf
2-Well/Pan
55315 LP55315 3-Well/Pan
55316 LP55316 4-Well/Pan
55317 LP55317 5-Well/Pan
55318 LP55318 6-Well/Pan
• Drilling template, included • ⁹⁄₃₂" drill bit
• Allen wrench, included • ¹³⁄₃₂" drill bit
•Hammer •1
" drill bit
•Drill •⁷⁄₁₆"
combo wrench
• Spotting punch • ⁹⁄₁₆ " combo wrench
Solid-surface and
laminate countertops:
use longer mounting
hardware
Stainless steel
countertops: use shorter
mounting hardware
