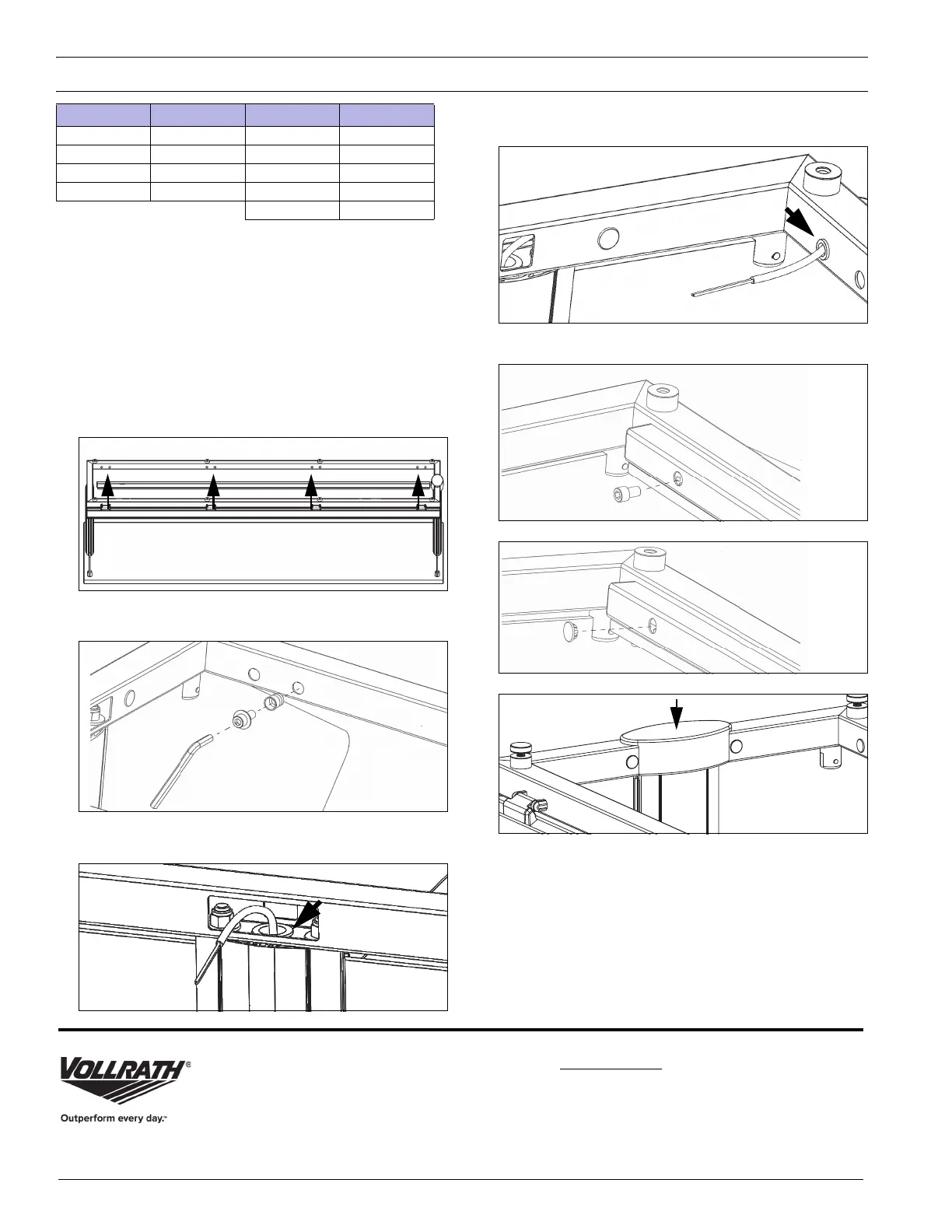

LIGHT STRIP INSTALLATION
NOTICE: Light assembly connection must be performed by a
licensed electrician.
If this is a retrofit installation
1. Remove the upright caps and top glass before proceeding with the
installation.
2. Remove the frame plugs from the insides of the long sides of the top
frame.
Installation
1. Center and hold the light assembly up to the inside of the front or
back frame tube. Mark holes that will require mounting anchor.
2. Press the threaded inserts into the marked frame holes. Install a bolt
with washer into an anchor and tighten with the supplied allen
wrench until snug wrench. Repeat for each hole.
3. Install the included large grommet into the frame hole on the power
supply end. Pull the power supply wiring from the cabinet up
through the hole in the upright.
4. Install the included small grommet into the end frame hole nearest
to the power supply. Pull the power supply wiring through the frame
and through the grommet installed in the end hole.
5. Wire the light. Tuck the wire nuts into the back of the light assembly.
6. Attach the light assembly to the frame tube with the supplied bolts.
7. Install the hole plugs into the light assembly holes.
8. Install the end caps.
Kit Item No.
For Use With
Kit Item No.
For Use With
350744 46' 350748 2 Well
350745 60' 350749 3 Well
350746 74' 350750 4 Well
350747 88' 350751 5 Well
350747 6 Well
