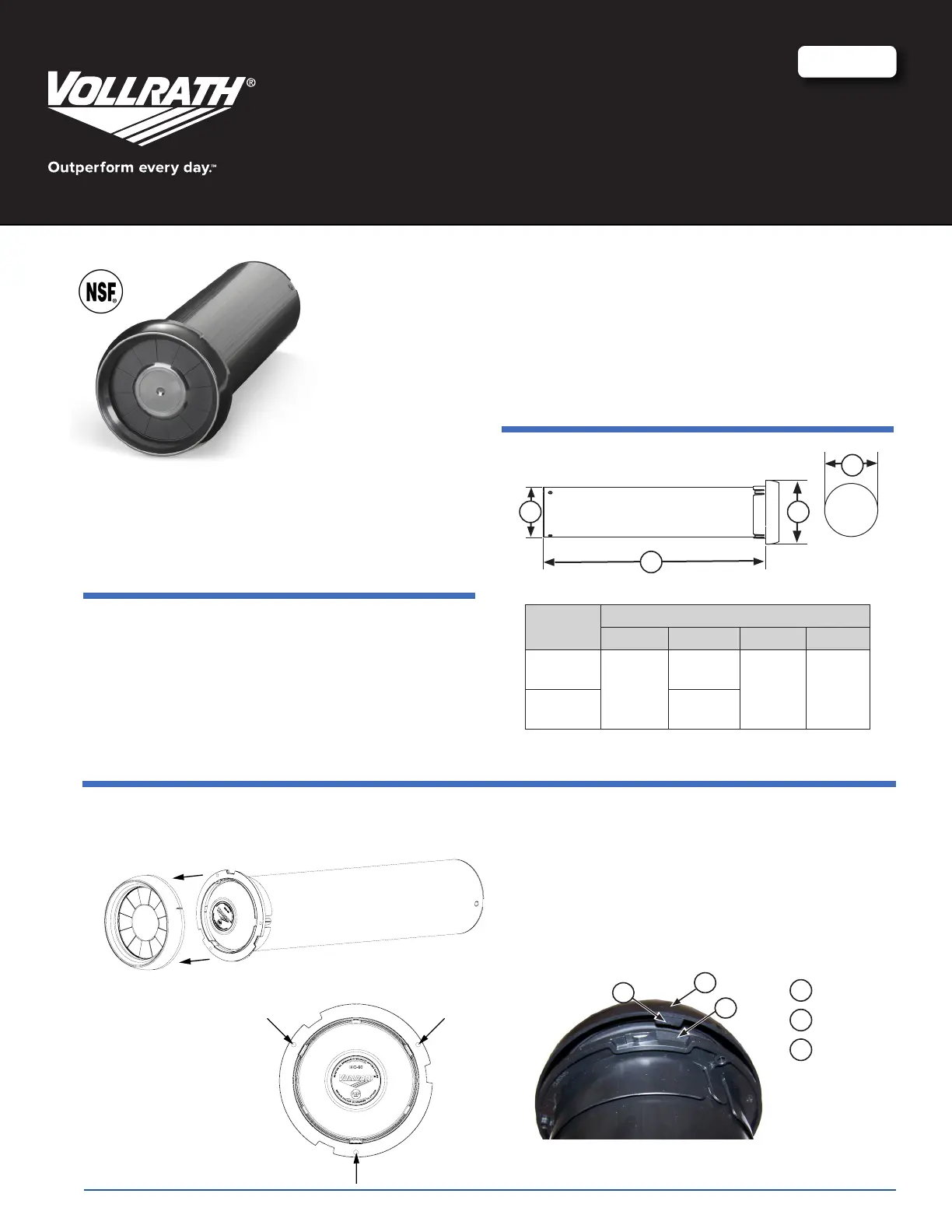

ENGLISH
Operator’s Manual
Item No. 8013051 Rev 4/9/15
INC-80 AND INC-80S18 CUP DISPENSER
Thank you for purchasing this Vollrath product. Before operating the equipment, read and
familiarize yourself with the following operating and safety instructions. SAVE THESE
INSTRUCTIONS FOR FUTURE REFERENCE. Save the original box and packaging.
Use this packaging to ship the equipment if repairs are needed.
Tools Needed
Medium size Phillips head screwdriver
Hole saw
Drill and 1/8” drill bit
Included parts: 3 #8 x 1” screws, 3 additional gaskets for dispensing
different diameter cups, parts bag for horizontal mounting
IN-CouNTer (VerTICal) INsTallaTIoN
dImeNsIoNs
3 1
4
2
Model
Dimension
1 2 3 4*
INC-80
6-5/8”
(16.8 cm)
23-1/8”
(58.7 cm)
5-1/4”
(13.3 cm)
5-1/2”
(13.9 cm)
INC-80S18
18-1/8”
(46 cm)
*Mounting hole diameter
1. Determine installation location.
2. Use a hole saw to cut a 5-1/2” (13.9 cm) hole in the countertop.
3. Remove the bezel/gasket from the dispenser.
4. Place dispenser in cutout hole.
5. Mark the three ange mounting
holes with a center punch.
6. Drill three 1/8” holes.
7. Secure dispenser into counter with included #8 x 1” screws.
8. Dispenser ships with medium size gasket installed. To change gasket to
t a different cup size, see “Change the Cup Size” on page 2.
9. Re-install the bezel (with gasket) onto tube.
• Align the three tabs on the bezel with the notches on the ange or use
the lines on the bezel to align the bezel with the ange.
• Rotate clockwise until you feel and hear a click, securing the
assembly together.
A
B
C
A
Tab
B
Notch
C
Alignment
line
