Flexvent™ installation manual 11
BACK TO TOC

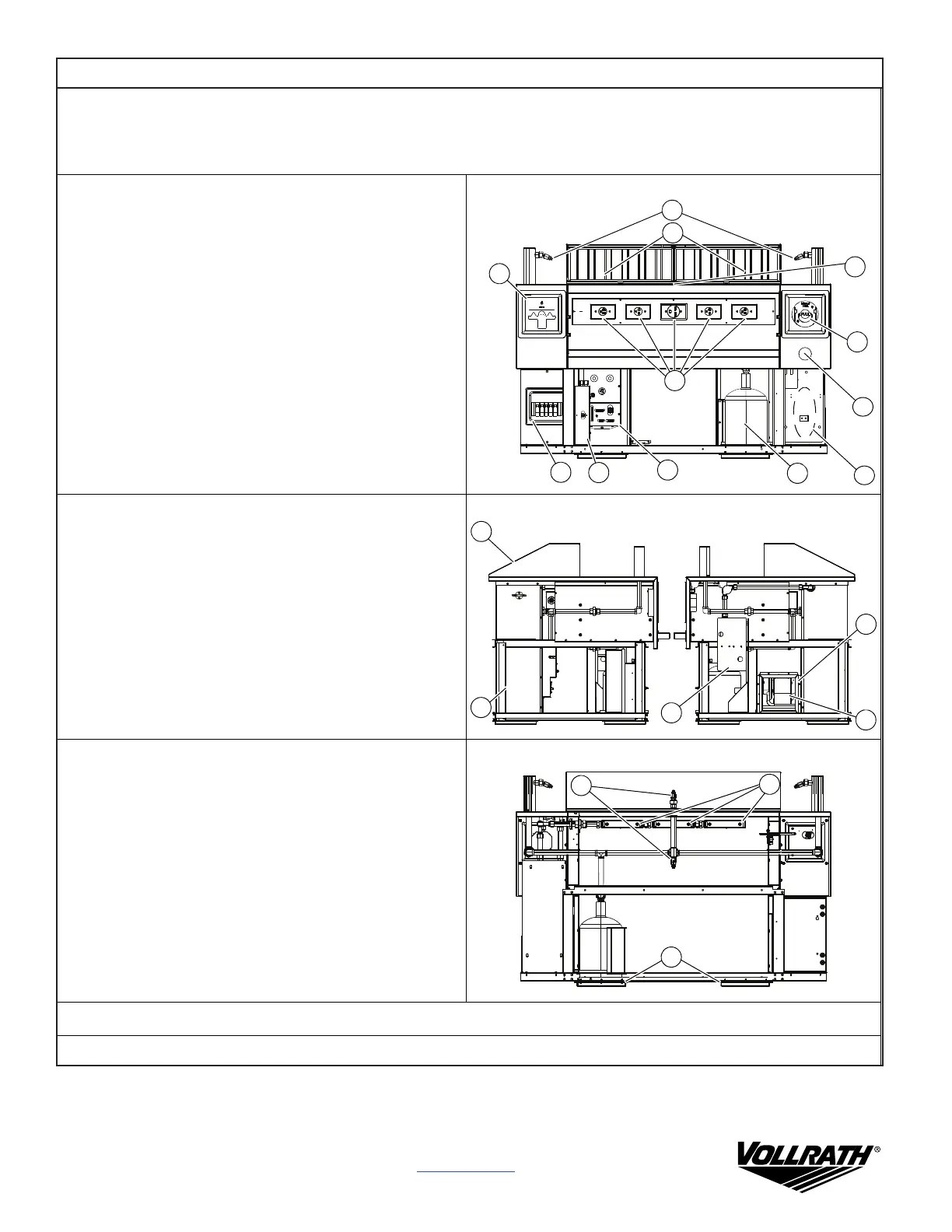

SYSTEM OVERVIEW
2 FlexVent™ Versatile Slide-In with Downdraft Vent System and Fire Suppression Operator’s Manual
SYSTEM OVERVIEW
The FlexVent™ unit consists of three integrated systems:
• FlexVent Ventilation and Filtration System
• Fire Detection System
• ANSUL
®
R-102 Restaurant Fire Suppression System
A. Discharge Nozzles — Appliance (2)
B. Grease Filters (2)
C. Grease Tray (1)
D. Manual Pull Station
E. Fire Suppression System Arming View Window
F. 1.5 Gallon Ansulex R-102 Tank, Ansulex Fire Suppressant*
G. Electrical Outlets*
H. Pressure Control**
I. Interlock Box**
J. Circuit Breakers and Box*
K. User Control
L. Nitrogen (N) Cartridge LT-20-R*
M. ANSUL Automan Regulated Release Assembly
N. Fan Motor
O. Vent Hood
P. Plenum Assembly
Q. Damper Assembly
R. Discharge Nozzles (Duct) (2)
S. ANSUL Detector Brackets w/ Fusible Links (3)
T. Lift and Mounting Pads
*Supplied and installed separately.
**For service technician use.
D
K
B
F
J
E
C
G
H
I
L
A
O
P
N
M
Q
R
S
T
