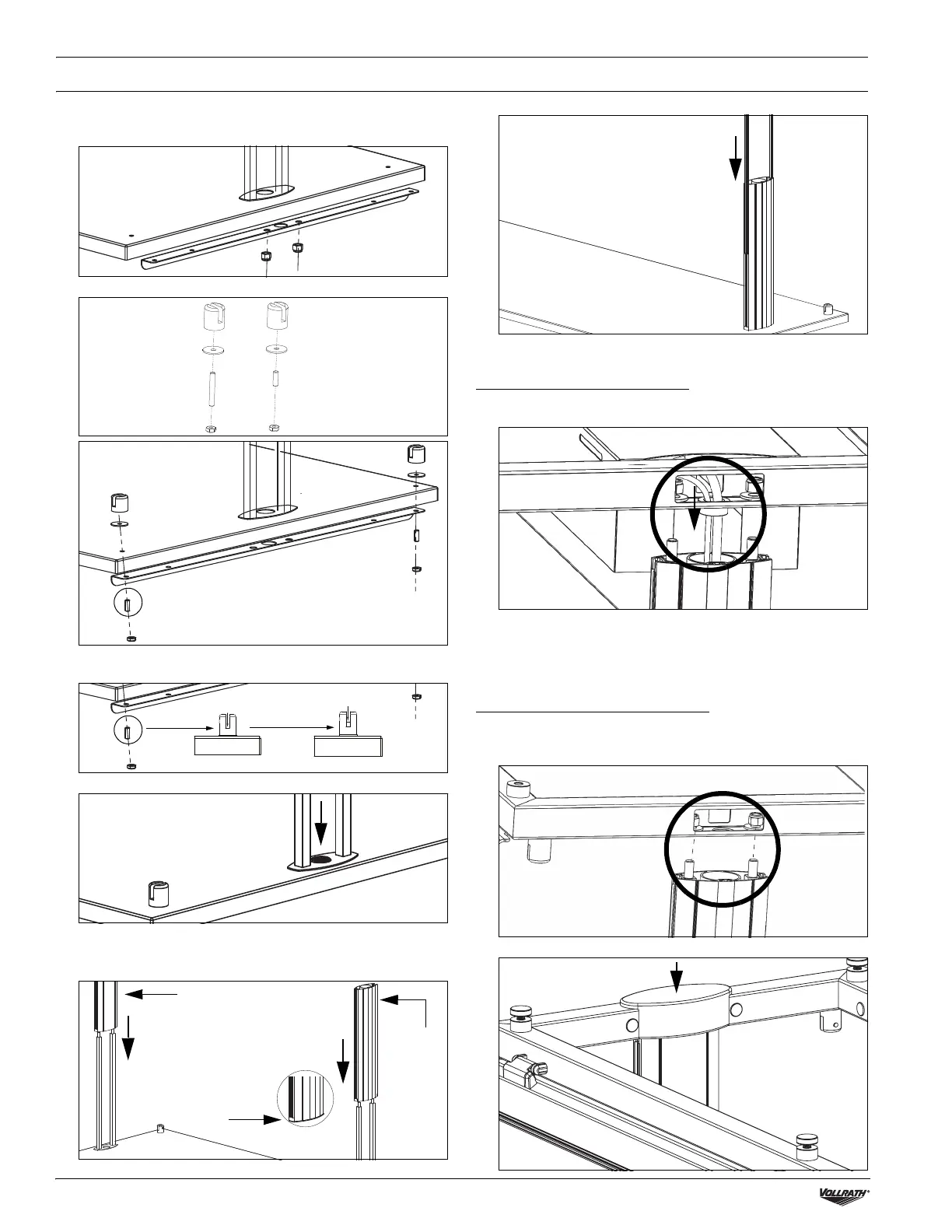

2 Low Profile Hinged Glass Breath Guards Installation Instructions
BREATH GUARD INSTALLATION (CONTINUED)
3. Position the stiffening bracket on the underside of the countertop
and over the tie rod extensions. Secure the tie rods to the base frame
with the included nuts.
4. Install the gaskets and standoffs to the countertop.
5. Position the stud so it is flush with the bottom of the slot in the
standoff.
6. Insert the grommet into the power supply hole.
7. Slide the uprights over the tie rods:
• Smooth side facing inward and the grooved side facing outward
• Spacer support tab must be at the bottom
8. Slide the glass gaskets into slots of the uprights.
If Your Breath Guard:
Includes a heat strip and/or lights
9. Thread the wires through the upright and into the cabinet below. Use
the included washers and nuts to attach the tie rods to the top frame.
10.If your breath includes a heat strip and/or lights, continue on page 7
with step 6.
11.If your breath guard contains only lights, continue below with step
13.
Does not include heat strips or lights
12.Place the top frame over the uprights and thread the tie rods
through the holes in the frame. Use the included washers and nuts
to attach the tie rods to the top frame.
13.Install the end caps.
Solid-surface
and laminate
countertops: use
longer mounting
hardware
Stainless steel
countertops: use
shorter mounting
hardware
Correct
Incorrect
Smooth side
Grooved
side
Spacer
support tab
