Descriptions and Functions

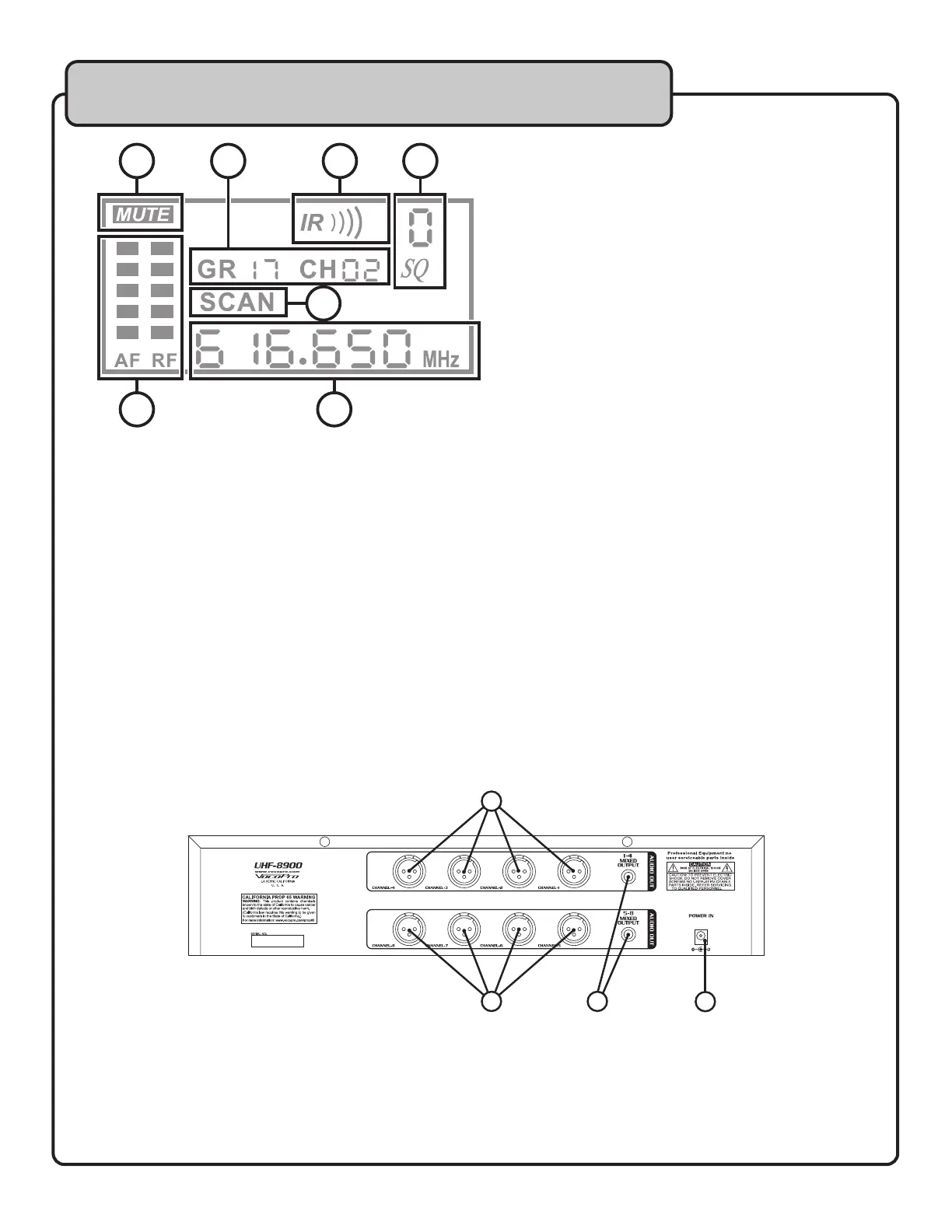

Rear Panel
1. Independent XLR Channel Outputs - These 8 balanced jacks output audio from each module independently.
2. Mixed Audio Output - These unbalanced jacks output the audio of all the modules in their respective rows.
3. Power Adapter Plug* - Attach the power adapter here to provide power to the receiver.
1 2
3
1
1
6 7
5
2 3 4
Module Display Window
1. MUTE Indicator - Displays when corresponding mic is off or disconnected. The Mute Mode is an automatic function.
2. Group and Channel - Displays the group and channel that the module is set to. *See Displaying the Group & Frequency
page for details.
3. IR (infrared) Mode Indicator - Indicates when the module is in IR Mode, which is used to assign a microphone to a module.
4. Squelch* - Displays the current Squelch level for this module.
5. SCAN Mode Indicator - Shows when this module is in SCAN mode, which is used to search for an interference free
frequency.
6. Lock - Setting alterations are disabled for that module when displayed.
Note: Press Menu+Set buttons simultaneously to toggle the Lock
6. AF/RF Level Bars - The RF bar displays signal strength of the synced microphone. The AF bar displays the strength of
the audio signal being received from the microphone.
7. Channel Frequency - Displays what frequency this module is currently set to.
* See commonly asked questions for denition
