1. POWER button - Turns the UHF-3200 On and Off.
2. SIGNAL INDICATOR LEDs - These will light up when signals are received from the microphone channels.
3. POWER (LED) - Indicates whether the UHF-3200 is ON or OFF. When it is lit, the power is ON.
4. VOLUME controls - Adjusts the individual VOLUME of the receiver’s 2 microphone channels.
5. ANTENNAS - Provide the RF signal.
6. AC POWER connection - Main power jack for connection to an AC electrical outlet or power strip/surge
protector.
7. MIC CHANNEL OUTPUTS - These ¼” outputs are for connection to amplifiers, effects devices or mixers. OUT A
corresponds to CHANNEL 1 and OUT B corresponds to CHANNEL 2.
8. MIXED OUTPUT - Output mic channels A and B simultaneously from this output using a ¼” cable.

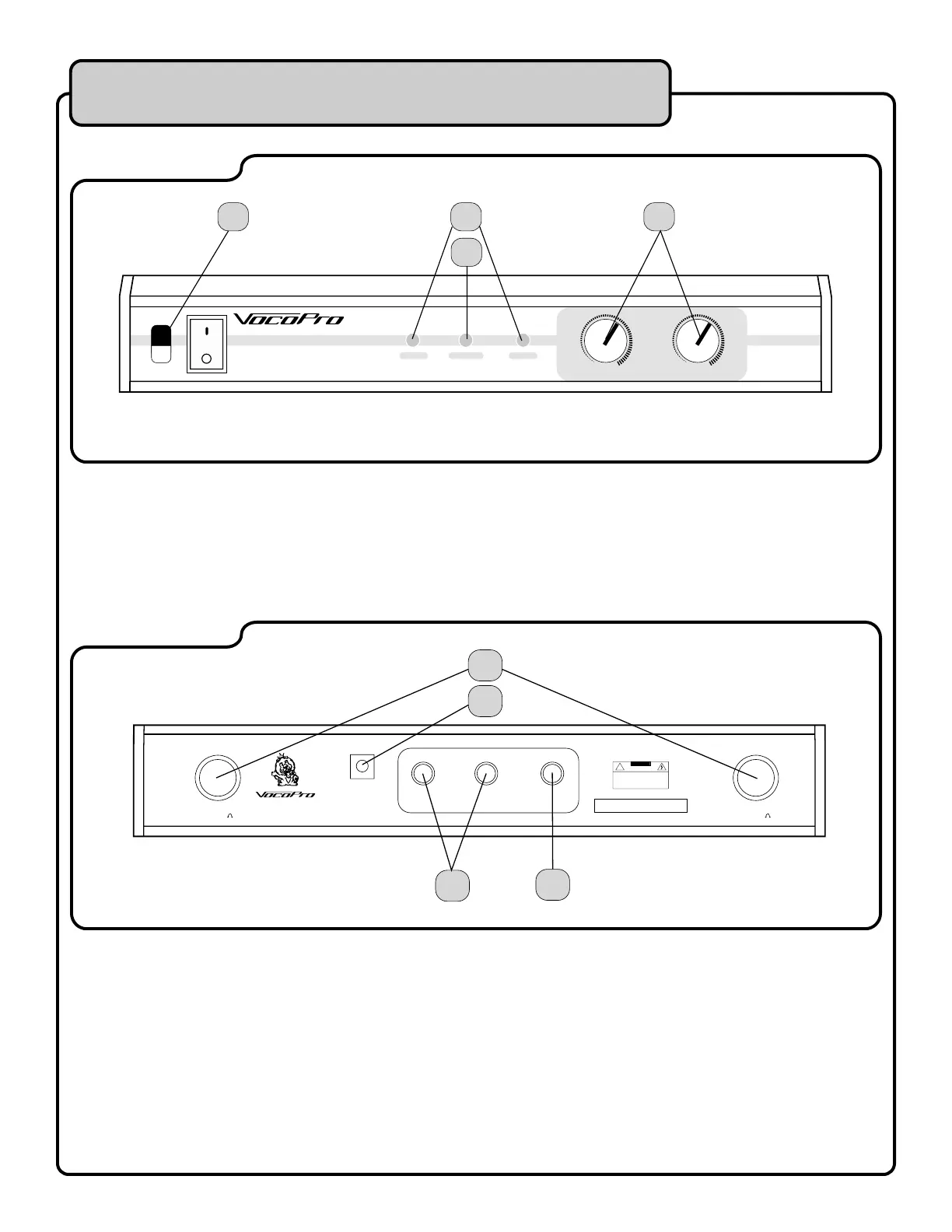

Front and rear panel descriptions
Front panel
Rear panel
UHF DUAL CHANNEL WIRELESS
MICROPHONE SYSTEM
UHF-3200
CH. A CH. B
MIN MAX MIN MAX
VOLUME
POWER
A B
ON
OFF
1
2
3
4
CH. B OUT
DC INPUT
13V-18V .300mA
ANT-IN
TNC-50
CH. A OUT MIX OUT
CHANNEL-B CHANNEL-A
Professional Equipment no
user serviceable parts inside
!
CAUTION
RISK OF ELECTRICAL SHOCK
DO NOT OPEN
CAUTION: TO PREVENT ELECTRIC SHOCK,
DO NOT REMOVE COVER SCREWS
NO USER-SERVICEABLE PA
RTS INSIDE.
REFER SERVICING TO QUALIFIED
PERSONNEL
SERIAL NO:
www.vocopro.com
LA VERNE CALIFORNIA
U. S. A
ANT-IN
TNC-50
5
6
7
8
