DESCRIPTIONS & DETAILS

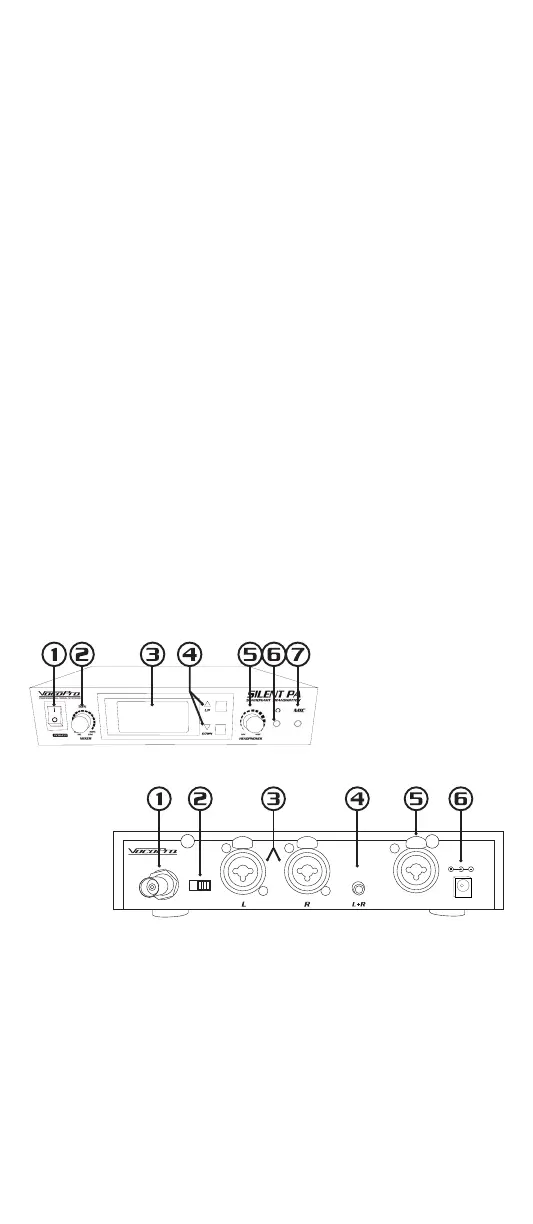

STATIONARY TRANSMITTER (ST)
FRONT PANEL
1. Power - This powers the ST OFF/ON.
2. Mixer Knob - This balances the audio signals plugged into
the MIC and LINE IN jacks.
• Turn completely counter-clockwise for only Microphone
audio.
• Turn completely clockwise for only Line audio.
• Turn knob to middle position for 50/50 mix of both
Microphone and Line audio.
Note: Microphones plugged into the L/R XLR-1/4” Combo
Jacks will be inaudible when Mixer knob is set to 100% MIC.
3. Frequency Display - This LCD display shows the current
channel and its frequency.
4. Channel Selectors - These buttons select the channel to
be used.
• Up - This button cycles the channel selector upwards
numerically.
• Down - This button cycles the channel selector
downwards numerically.
5. Headphone Volume - This knob adjusts the volume of the
headphone jack.
6. Headphone Jack - This jack outputs both mic & music
signal via an 1/8” Stereo jack.
Note: Audio will still be transmitted if headphones are
inserted in the headphone jack.
7. Mic In - This jack is available for a microphone with an
1/8” connection.
SILENT PA
MIC IN
MIC IN
ANT
LINE
IN
48V
PHANTOM
LINE IN
DC 12-15V IN
PUSH PUSHPUSH
STATIONARY TRANSMITTER (ST)
REAR PANEL
1. Ant - Connect the antenna to this post.
2. Input Selector - This switch determines the assignment
of the L/R XLR-1/4” Combo Jacks:
• LINE IN - When set to this position, the L/R XLR-1/4”
Combo Jacks are LINE inputs able to accept signal from
an instrument or music source (i.e. Laptop, smartphone,
MP3 player, etc.).
15
