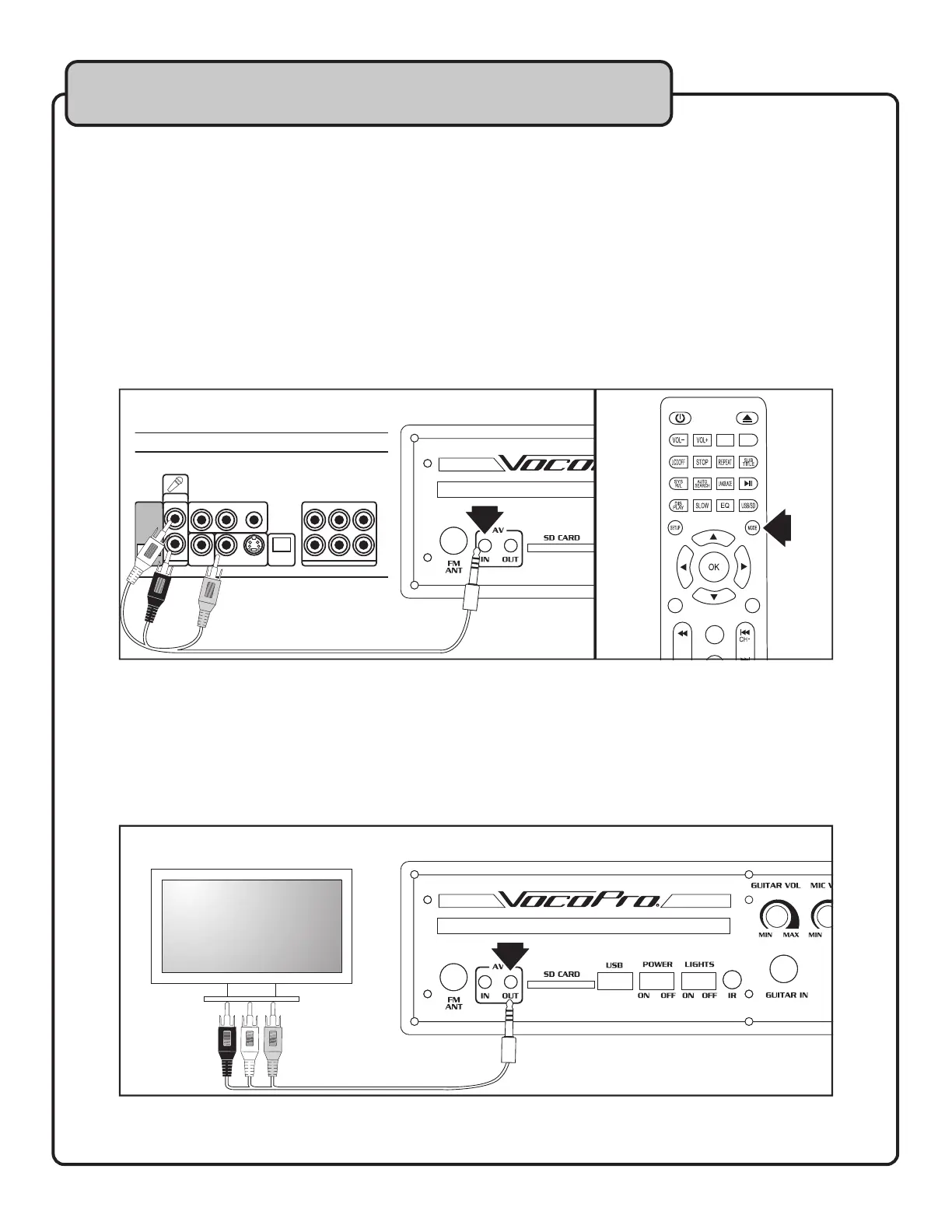

Getting Connected
The Karaoke RockOnRoller is an all-in-one karaoke solution, there were no additional connections required to
use the system. The additional connections that can be made are the AV Output & Input; these are available
to send the karaoke video to a larger display or to accept video from another source, respectively. The
original RCA-to-1/8” cable must be used to get audio and video from the AV Out/In.
USING THE AV IN
–
ACCEPT AUDIO/VIDEO FROM AN EXTERNAL SOURCE:
• On the source player, connect the RED/WHITE/YELLOW cables to their appropriate outputs:
•Red - Right channel audio
•White - Left channel audio
•Yellow - Video signal
• On the Karaoke RockOnRoller, connect the 1/8” end of the cable into the AV Input located on the back.
• Set the Karaoke RockOnRoller Input Mode to AV In.
USING THE AV OUT
–
SEND AUDIO/VIDEO TO AN EXTERNAL DEVICE:
• On the Karaoke RockOnRoller, connect the 1/8” end of the cable into the AV Output located on the back.
• On the external device, connect the RED/WHITE/YELLOW cables to their appropriate inputs:
•Red - Right channel audio
•White - Left channel audio
•Yellow - Video signal
• Set the external device to the appropriate input channel.
Rear Panel
RockOnRoller
Example Source
DVD Player Rear Panel
TITLEMENU
MUTE
PROG
L Y Pb/Cb Pr/Cr
R
Mixed Out
Mic + Music
Out
COAXIALHDMI VIDEO S-VIDEO OPTICAL
L Y Pb/Cb FL CENTER SL
5.1 CH Audio Output
FR SW SR
FL CENTER
100~240V 50-60Hz
DOUBLE INSULATION. WHEN SERVICING
USE ONLY IDENTICAL REPLACEMENT PARTS.
SLPr/Cr
R
Mixed Out
Mic + Music
Out
5.1 CH Audio Output
COAXIALHDMI VIDEO S-VIDEO OPTICAL
SCART OUTPUT
FR SW SR
Model Number: DVX-890K
AC Power: 100~240V 50/60Hz
Power Consumption: 12W
Manufactured under License from Dolby
Laboratories. DOLBY, PRO Logic and the
double-D symbol are trademarks of
Dolby Laboratories. Confidential unpubl-
ished works. © 1992-1997 Dolby
Laboratories Inc. All Rights Reserved.
WARNING: SHOCK HAZARD. DO NOT OPEN!
RISK OF ELECTRIC SHOCK.
DO NOT OPEN!
CAUTION!
WARNING:
To Reduce The Risk of Fire or Electric Shock, Do
Not Expose This Apparatus to Rain or Moisture.
Rear Panel RockOnRoller
Example External
Device
