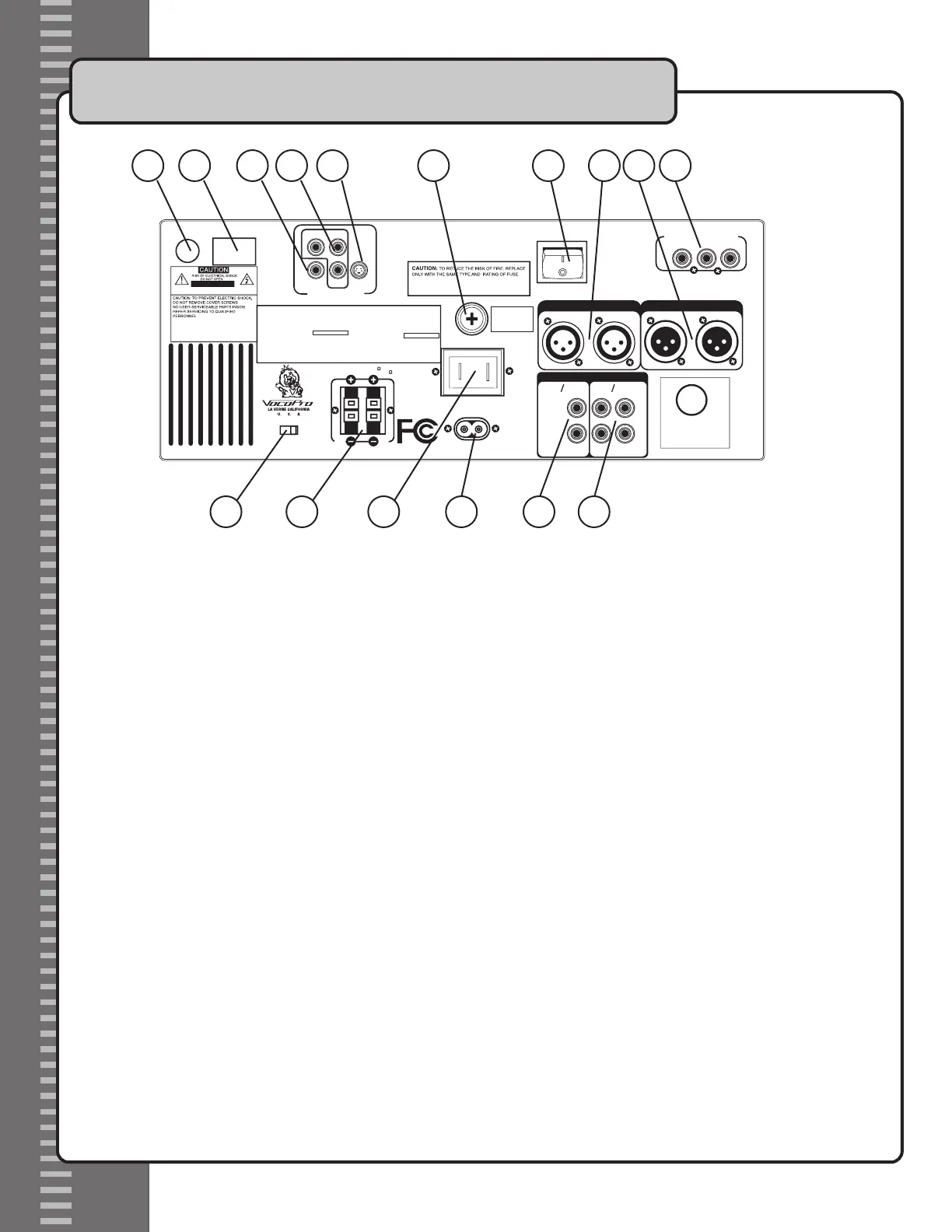

Rear Panel Descriptions
1. FM Antenna Input - Connect the FM antenna here.
2. AM Antenna Input - Connect the AM antenna here.
3. COAXIAL (Digital) Output - This digital output is for connecting to devices with a digital coaxial input.
4. COMPONENT Video Output - These jacks output VIDEO to a TV monitor via COMPONENT VIDEO cables. COMPONENT VIDEO outputs the
different color signals (U/Pb, V/Pr and R) and luminance signal (Y) separately in order to achieve high fidelity in reproducing colors. The de
-
scription of the component video output connectors might differ depending on the TV set or monitor (i.e. R/B/Y or Cr/Cb/Y or R-Y/B-Y/Y etc.).
Component video cables only transmit the video signal; separate cables are needed for audio signals. Please refer to the operating instructions
of the TV set or monitor for details.
5. S-VIDEO Output - This jack outputs to a display device (TV, TFT, etc.) using an S-VIDEO cable. S-VIDEO provides better color separation and
better resolution by separating the color and picture signals of a composite-video signal.
6. FUSE terminal - This terminal houses the GIG STAR’s main system FUSE. NOTE: If fuse replacement is necessary, only replace with the same
type and rating of fuse.
7. POWER switch - This switch turns the GIG STAR’s MAIN POWER ON/OFF.
8. BALANCED AUDIO OUTPUT jacks - These XLR jacks are for connecting MASTER output to an external device with balanced cables.
9. BALANCED MIC 1-2 INPUT (XLR) - These jacks are for connecting microphones via BALANCED XLR-type microphone cables.
NOTE: Both the XLR and ¼” MIC jacks cannot be used simultaneously for any given mic channel.
10. AV 1 INPUT jacks - These jacks are for connecting AUDIO/VIDEO OUTPUT from external AV SOURCES. Connect RCA-style AV cables (R, W,
Y) from these jacks to the AV OUTPUT jacks on your external AV devices.
11. INTERNAL/EXTERNAL SPEAKER selector - This selector toggles the GIG STAR’s master output to be played through either the BUILT-IN
speakers or EXTERNAL speakers connected to the EXTERNAL SPEAKER CONNECTORS.
NOTE: You cannot playback from both INTERNAL and EXTERNAL speakers simultaneously.
12. EXTERNAL SPEAKER connectors - These connectors are for connecting EXTERNAL SPEAKERS to be used for playback instead of the BUILT-
IN SPEAKERS. NOTE: Only connect one 8-ohm rated speaker to each speaker connector.
13. AC POWER outlet - This outlet provides AC POWER to an external device. NOTE: Do not connect any device with a power consumption level
higher than 200W.
14. AC~IN terminal - Connect AC MAIN POWER CORD from the wall outlet to this terminal.
15. VIDEO OUT 1-2 jacks (RCA) - These jacks are for connecting the GIG STAR’s VIDEO OUTPUT to TV or DISPLAY devices. Connect RCA-type
patch cables from these jacks to the VIDEO INPUT jacks on the TV or display devices.
16. AUDIO OUT 1-2 jacks (RCA) - These jacks are for connecting the GIG STAR’s AUDIO OUTPUT to amplifiers, recording or mixing devices. Con-
nect paired RCA-type patch cables from these jacks to appropriate INPUT jacks on external audio devices.
16
GIG STAR
MULTI-FORMAT KARAOKE ENTERTAINMENT SYSTEM
MUSIC EQ
MUSIC VOLUME
AV2 INPUT
PLAY
STOP PBC
AM/FM PRESET SEARCHAUTO ST/MO
PREV NEXT B-SCAN F-SCAN MUTE L/R
EJECT
DIGITAL KEY CONTROLLER
V O C A L CANCEL
V OC A L PA
RTNER
REPEAT
EQ ON
EQ OFF
PAUSE
DISC
TUNER
AV
1
AV
2
INPUT
POWER
+12dB
0dB
-12dB
+12dB
0dB
-12dB
60Hz 200Hz 400Hz 1KHz 3KHz 6KHz 16KHz
60Hz 200Hz 400Hz 1KHz 3KHz 6KHz 16KHz
HEADPHONES KEYBOARD
MIC VOLUME
MIC EFFECTS
VOL 2VOL 1MIC 2MIC 1
BASS TREBLE ECHO REPEAT DELAY
1 2 3 4 5 6 7 8 9 10
+10
VOLUME VOLUME VOLUME
GUITAR
TRACK / PRESET
MULTI-FORMAT
V I D E O
PROGRESSIVE SCAN / DVD / CDG / PHOTO CD / MP3 / CDR / CDRW / AM/FM
OPEN/CLOSE
POWE
R
DISC
SETUP
MENU
PRESET
MIC
STOP/AM/F
M
PAUSE/ST/M
C
MUSI
C
GIG STAR
B.SCAN F.SCAN
-SEARCH+ -PRESET+
PREV NEXT
LANG SUBTITLE ANGLE PBC
OS
D
SLOW STEP REPEAT A-B
L/R P/N TIME ZOO
M
MUTE
RESUME MODE CLEAR
V/
P
V/
C
b
RETURN
PLAY/AUTO
TITL
E
PROG
TUNER AV1 AV2
#
ENTER
=
1 2
3
4 5
6
7 8
9
0
+10
Digital Key Control
THE SINGER'S ULTIMATE CHOICE
www.vocopro.com
SÉECTEUR HAUT-PARLEURS
AV1 INPUT/ ENTÉE AV1
VIDEO/VIDÉO
L/GR/D
U
L
C
US
LISTED
(AUDIO PRODUCT)
E229438
6PA6
(PRODUIT AUDIO)
E229438
6PA6
INT
INTERNE
EXT
EXTERNE
SPEAKER SELECTOR
ON
ENFONCTION
OFF
HORS FONCTION
POWER
COMMUT
ATEUR
T2A/125V
AC IN
ENTRÉE AC
AC115V
60HZ 70W
AC 115V60Hz 200W
OUTLET UNSWITCHED
CA 115V60Hz 200W
SORTIE NON COMMUTÉE
FM/ANT
INPUT/ENTRÉE
AM/ANT
INPUT ENTRÉE
L/GR/D
BALANCED AUDIO OUTPUT BALANCED MIC INPUT
MIC 1 MIC 2
L/G
R/D
CLASS 2 WIRING
CÂBLAGE DE CLASSE
2
SPEAKER 8
HAUT
-PARLEURS 8
CAUTION DISCONNECT
SUPPLY CORD BEFORE
CHANGING FUSE
.
AVERTISSEMENT: DEBRANCHEZ
LE CORDON D’ALIMENTATION
AVANT DE CHANGER LE
FUSIBLE.
VIDEO SORTIE
OUT VIDÉO
AUDIO SORTIE
OUT AUDIO
L/G
R/D
1
1
2
2
OUTPUT / SORTIE
MUSIC & VOCALS
MUSIQUE &
PARTIE VOCALE
AVERTISSEMENT: PRIÈRE D’UTILISER LE
MÊME TYPE ET SPÉCIFICATIONS DE
FUSIBLE AFIN DE RÉDUIRE LES RISQUES
D’INCENDIE
Modèle: GIG STAR
VOCOPRO
www.vocopro.com
Puissance: AC ~ 115V, 60Hz, 70W
Materiel a rayonnem ent laser de Classe
1Ce materiel repond aux norm es DHHS
Reglements 21 CFR,chapitre 1,
sous-chapitre J
Fabriqué en Chine
Date de fabrication:
Cet appareil repond aux norms de la
partie 15 des Reglements du FCC.Son
emploi est assujetti aux deux conditions
sui vantes: (1)Cet appar eil ne cause pas
d’interferences dangereuses et, (2) C et
appareil doit accepter toute interference
pouvant causer un malfonctionnement
.
Model: GIG STAR
VOCOPRO
www.vocopro.com
Rated:AC~115, 60HZ, 70W
Class1 Laser Product
This product complies with DHHS
Rules21CFR Chapter1, Subchapter
J
Made in China
Manufactured Date
:
This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two Conditions:(1)This device
may not cause harmful Interference,and
(2)This device must accept any
interference that may cause undesired
operation
Y U/Pb
COAXIAL V/Pr S-VIDEO
DVD
OUTPUT / SORTIE
NE PAS RETIRER LES VIS DU COUVERT.
LES PIÈCES À L’INTÉRIEUR NE PEUVENT
ÊTRE CHANGER
PA
R L’UTILISATEUR. VEUILLEZ
CONSULTER UN SPÉCIALISTE
AVERTISSEMENT
RISQUES DE CHOCS ÉLECTRIQUE
NE PAS OUVRIR
1 2 3 4 5 6 7 8 9 10
11 12 13 14 15 16
