VCD DVD
AUX
CD OUT
AUDIO
R
AUDIO
L
VIDEO
AMP
INPUT
PRE AMP
OUTPUT
VCD-D
FL-IN
CD-DAUX-D
DVD-D
SL-IN
SC-IN SW-IN
FR-IN
SR-IN
FC-IN
SW-OUT
6.1CH INPUT
DIGITAL
IN
MULTI CH
INPUT

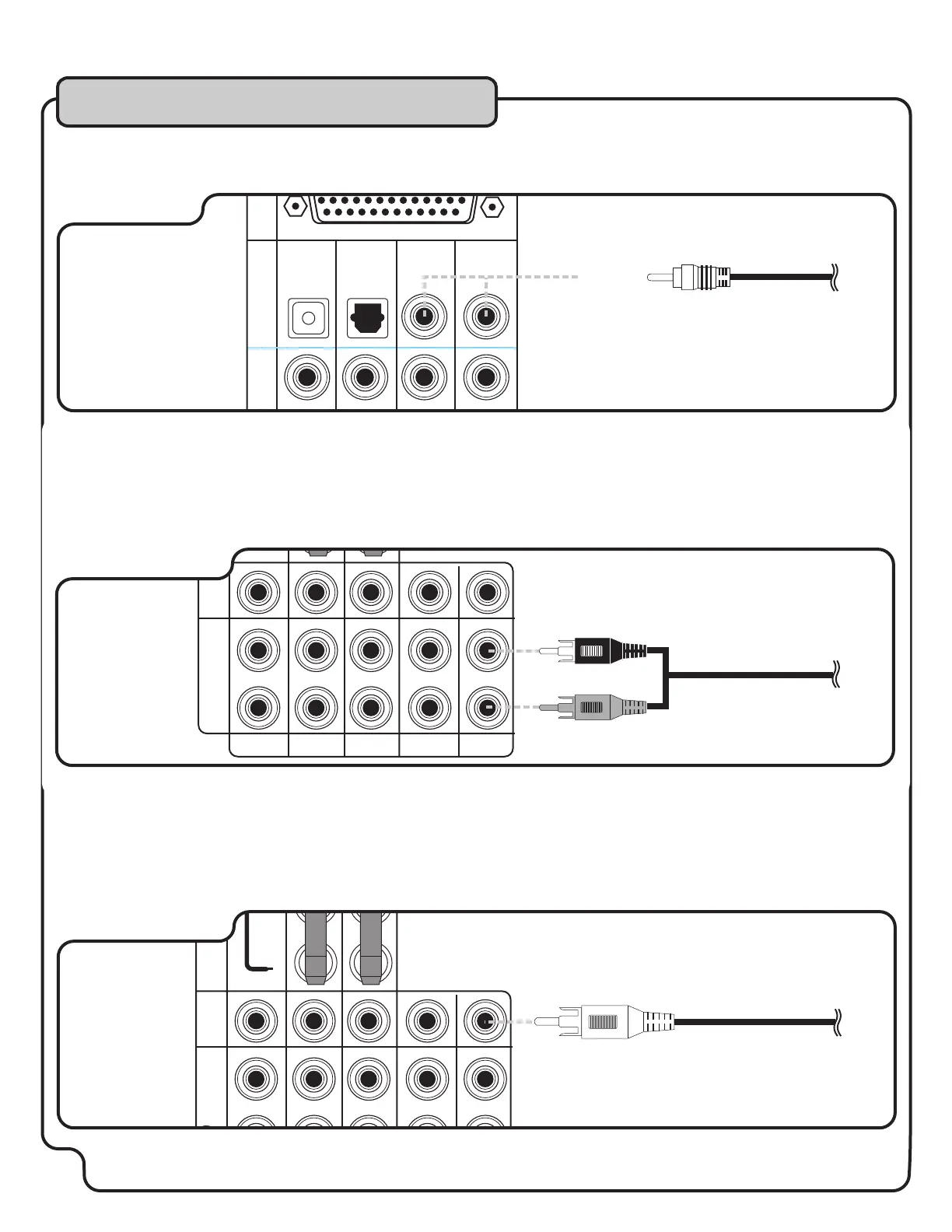

Audio Connections (cont.)
16
External Device
(DVD Player for example)
Audio Out
Video Out
Coaxial Input
Coaxial
Inputs
Coaxial Input
VCD DVD
AUX
CD OUT
AUDIO
R
AUDIO
L
VIDEO
AMP
INPUT
PRE AMP
OUTPUT
Pre-Amp
Output
Pre-Amp Output
To Source
Device
To External
Device
To make a digital coaxial connection, using a 75-ohm shielded audio cable suited for digital audio, connect the
DIGITAL OUTPUT of the source device to the COAXIAL INPUT of your choice on the DTX-9900K.
Pre-amp Output Connection
The DTX-9900K's stereo pre-amp output carries the same audio signal that is fed to its internal amplifier for
speaker output. This output can feed an auxiliary audio device for system integration needs.
To make a pre-amp connection, using an RCA-type patch cable, connect the AUDIO INPUT jacks of your external
device to the OUT jacks on the DTX-9900K.
Video Connections
The DTX-9900K has four input channels and one output channel with RCA-type video jacks. This means up to
four A/V devices can be connected to the DTX-9900K. The video output jack is used to feed a video signal to a
television or display device.
To make a video connection, using an RCA-type patch cable, connect the VIDEO INPUT jack of your television or
display device to the yellow VIDEO OUT jack on the DTX-9900K.
Video Connection
To TV
VIdeo
Input
Video
Output
