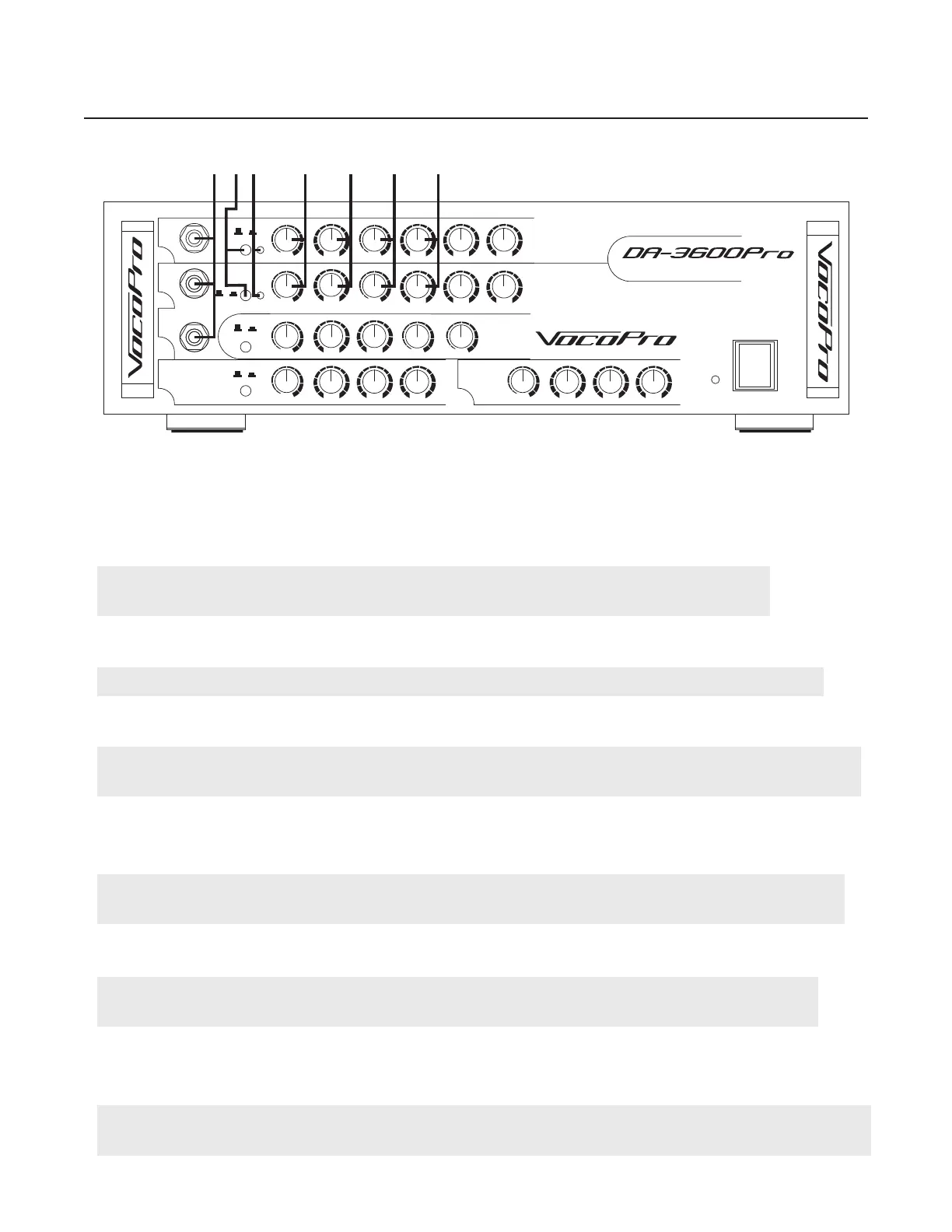

Front Panel Descriptions
7
1 2 3 4
1. 1/’4" MICROPHONE jacks (1,2 and 3) – Plug microphones with a 1⁄4" plug to these jacks.
2. +20dB GAIN pads – Press pad to an inward position to have the microphone output receive a +20dB GAIN
boost. Release pad to its outer position to have the microphone output revert back to NORMAL volume.
NOTE: The +20dB GAIN pad located next to the MIC 2 jack applies the GAIN to both MIC 2 and
MIC 3 channels.
3. MIC LED indicators – The MIC LED indicators illuminate when there is an active microphone signal detected
on that channel.
NOTE: The MIC LED indicator located next to the MIC 2 jack applies to both MIC 2 and MIC 3 channels.
4. VOL. control (MIC 1, 2-3) – This control increases/decreases the VOLUME level for the MIC channels.
Turn clockwise to increase MIC VOLUME and counter-clockwise to decrease the MIC VOLUME.
NOTE: The MIC VOL control located next to the MIC 2 jack controls the MIC VOLUME for both the MIC 2 and
MIC 3 channels.
5. BAL. control (MIC 1, 2-3) – This control fades the MIC 1, 2-3 output between the LEFT and RIGHT stereo
channels. Turn counter-clockwise to fade MIC 1, 2-3 output towards the LEFT channel and clockwise
to fade MIC 1, 2-3 output towards the RIGHT channel.
NOTE: The BALANCE control located next to the MIC 2 jack controls the BALANCE for both the MIC 2 and
MIC 3 channels.
6. ECHO control – This control increases/decreases the amount of ECHO applied to the MIC channels.
Turn clockwise to increase ECHO and counter-clockwise to decrease ECHO.
NOTE: The ECHO control located next to the MIC 2 jack controls the ECHO for both the MIC 2 and
MIC 3 channels
7. LO. control – This control increases/decreases the amount of LOW frequency response applied to the MIC
channels. Turn clockwise to increase the LOW frequency response and counter-clockwise to decrease the
LOW frequency response.
NOTE: The LO. control located next to the MIC 2 jack controls the LOW frequency response for both the MIC 2
and MIC 3 channels.
