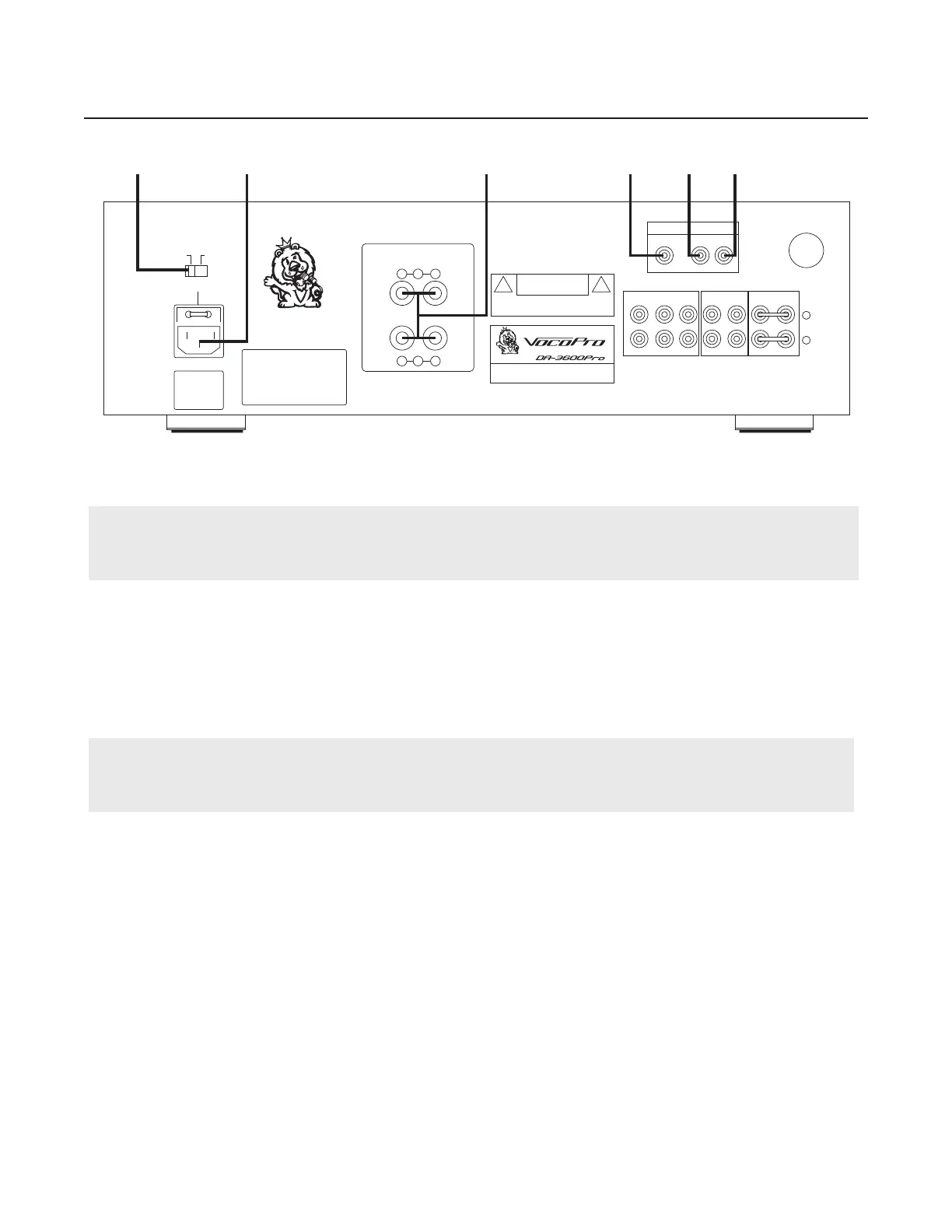

Rear Panel Descriptions
11
1. VOLTAGE SELECTOR toggle – This selector toggles between 110-120V and 220-240V power settings.
NOTE:Please ensure this toggle is set to the correct position, matching the receiving AC outlets power supply
before plugging it in an operating it. Doing so may cause severe damage to the unit and void your product
warranty.
2. AC~IN terminal – Connect AC MAINS POWER CORD from the wall outlet to this terminal.
3. SPEAKER BINDING posts (MDP) – Connect appropriate speaker cables from these SPEAKER OUTPUT jacks
to the INPUT jacks located on your speakers. Standard speaker wire or speaker cables equipped with
MDP (banana) plugs can be used with the DA-3600 Pro’s SPEAKER BINDING posts.
NOTE: To use standard speaker wire, unscrew the plastic color- coded (red-black) binds until you can access
the wire holes located on the inner-sides of the binds and slide the wire leads into them. Fasten them down
by re-tightening the binds.
4. VIDEO OUT jack (RCA) – Connect an RCA-ended patch cable from this jack to the VIDEO INPUT jack of a
TV or display device.
5. CDG VIDEO INPUT jack (RCA) – Connect an RCA-ended patch cable from this jack to the VIDEO
OUTPUT Jack on the device connected to the CDG channel.
6. DVD VIDEO INPUT jack (RCA) – Connect an RCA-ended patch cable from this jack to the VIDEO
OUTPUT jack on the device connected to the DVD channel.
