10. Firmware Upgrade
Please follow the steps as below to upgrade firmware by the Micro-USB port on the rear
panel:
1) Prepare the latest upgrade file (.bin) and rename it as “USERAPP.bin”
2) Connect the switcher to the PC with USB cable, and then power on the switcher. The
PC will automatically detect a U-disk named of “BOOTDISK”.
3) Double-click the U-disk, a file named of “READY.TXT” would be showed.
4) Directly copy the latest upgrade file (.bin) to the “BOOTDISK” U-disk.
5) Reopen the U-disk to check the filename “READY.TXT” whether automatically
becomes “SUCCESS.TXT”, if yes, the firmware was updated successfully, otherwise,
the firmware updating is fail, the name of upgrade file (.bin) should be confirm again,
and then follow the above steps to update again.
6) Remove the USB cable after firmware upgrade.

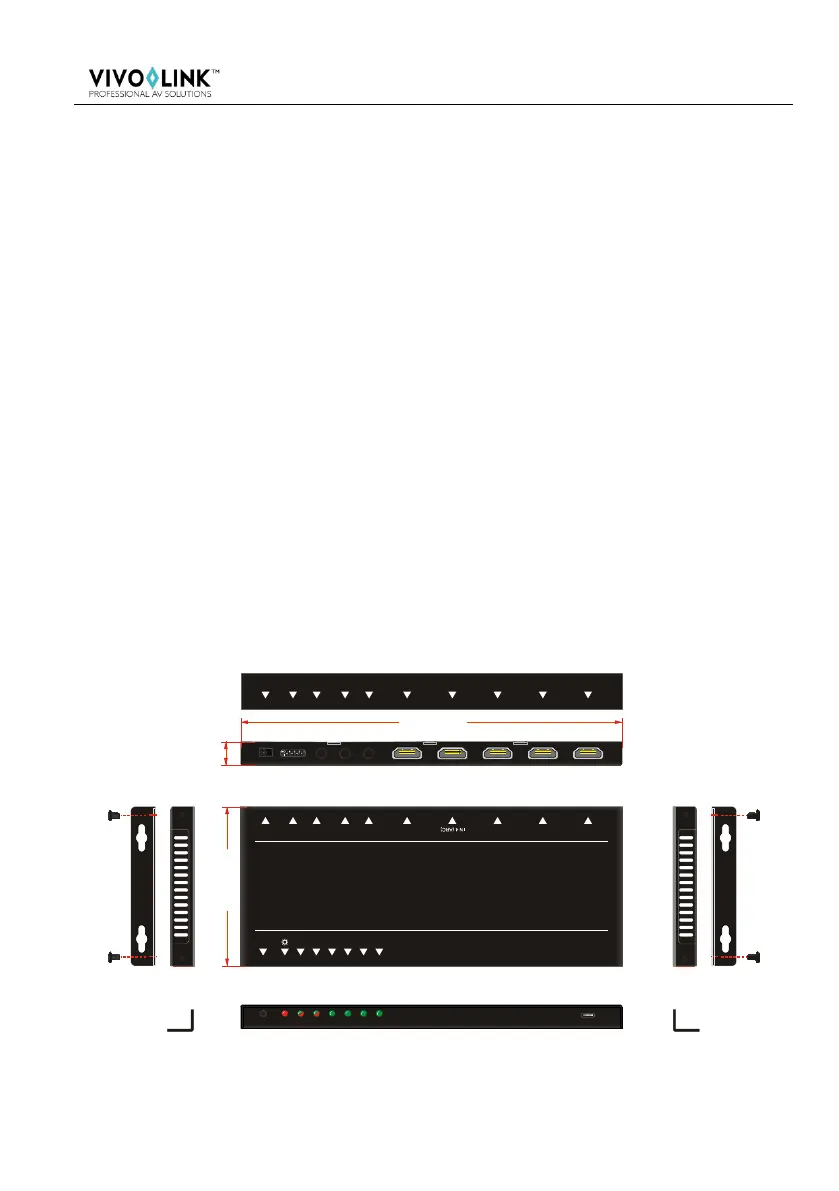

11. Panel Drawing
AUTO
SOURCE AUDIO MODE
1 2 3 4
DC 5V
EDID
IR IN
RS232
AUDIO
OUT
IN 1
IN 2
IN 3
HDMI 2.0 4x1 Switcher /w ARC & Audio Breakout
VGA
V
G
A
FIRMWARE
194.00 mm
81.00 m
m
12.00 m
m
DC 5V EDID IR IN RS232 AUDIO OUT
IN 1IN 2IN 3IN 4
