7.8 TEMP. TYPE SETTING Menu

MENU > FOR SERVICEMAN > TEMP. TYPE SETTING

The TEMP. TYPE SETTING is used for selecting whether the water flow

temperature or room temperature is used to control the ON/OFF of the heat

pump.

When ROOM TEMP. is enabled, the target water flow temperature will be

calculated from climate-related curves (refer to “9 Climate related curves”).

For installations without room thermostats, space heating and cooling modes can be controlled in one of two different

ways:

according to the M thermal Mono’s leaving water temperature alone

according to the room temperature detected by the M thermal Split user interface’s built-in temperature sensor

alone

WATER FLOW TEMP. sets whether space heating/cooling modes are

controlled according to the M thermal Mono’s leaving water temperature. If

YES is selected, the user is able to set the M thermal Mono unit’s leaving

water temperature set temperature on the user interface’s main screen.

ROOM TEMP. sets whether space heating/cooling modes are controlled

according to the room temperature detected by the temperature sensor in

the M thermal Mono user interface. If YES is selected, the user is able to set

the room temperature set temperature on the user interface’s main screen, no

matter what is the setting of WATER FLOW TEMP.

DOUBLE ZONE sets whether there are two zones.

If set WATER FLOW TEMP. and ROOM TEMP. to YES, meanwhile set DOUBLE ZONE

to NON or YES, the following pages will be displayed. In this case, the setting value of zone 1 is T1S, the setting value of

zone 2 is TS(The corresponding TIS2 is calculated according to the climate related curves.)

Homepage (zone 1) Addition page (zone 2)

(Double zone is effective)

If set DOUBLE ZONE to YES and set ROOM TEMP. to NON, meanwhile set WATER FLOW TEMP. to YES or NON, the following pages

will be displayed. In this case, the setting value of zone 1 is T1S, the setting value of zone 2 is T1S2.

◄

2

◄

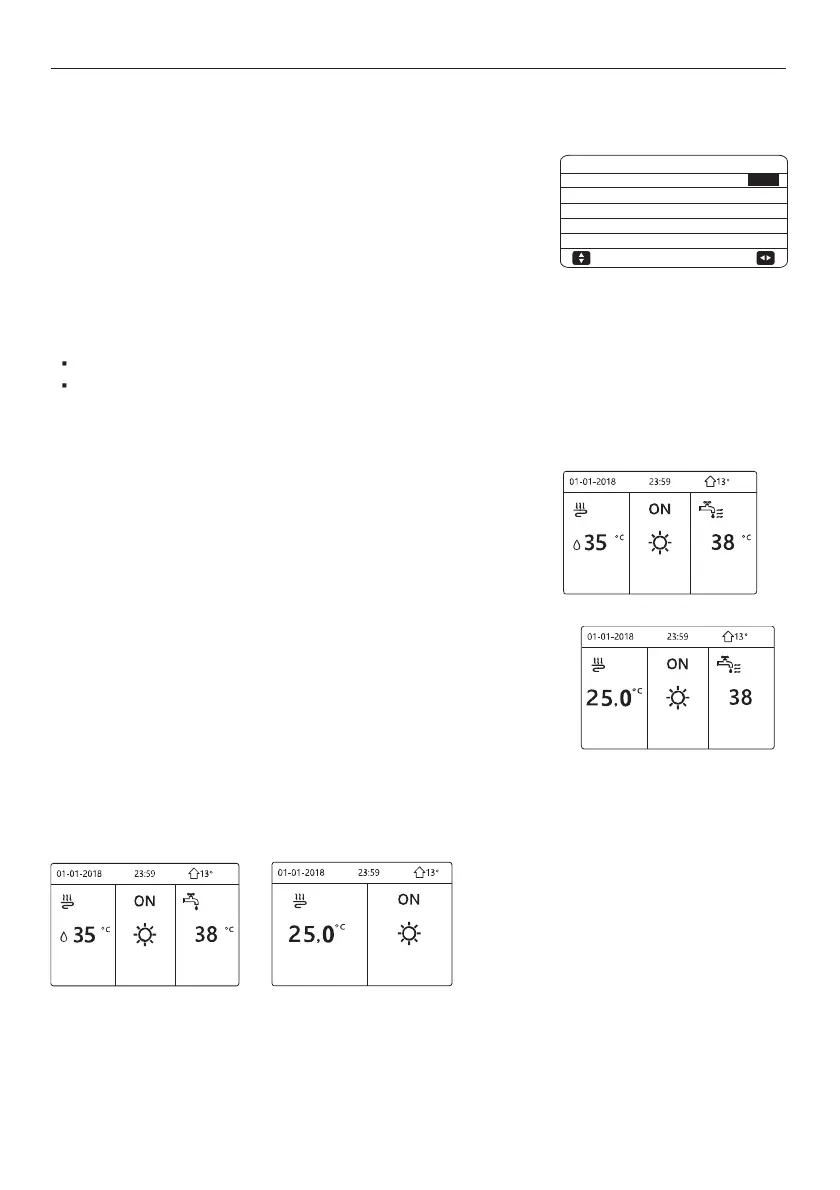

Figure 3-7.19: TEMP. TYPE SETTING menu

Figure 3-7.20: Only set WATER FLOW TEMP to YES

Figure 3-7.21: Only set ROOM TEMP to YES

Figure 3-7.22: DOUBLE ZONE to NON or YES

Figure 3-7.23: DOUBLE ZONE to YES and set ROOM TEMP. to NON meanwhile set WATER FLOW TEMP. to YES or NON

NON

YES

5 TEMP. TYPE SETTING

5.1 WATER FLOW TEMP.

5.2 ROOM TEMP.

5.3 DOUBLE ZONE

ADJUST
