VIVAX ENG

27

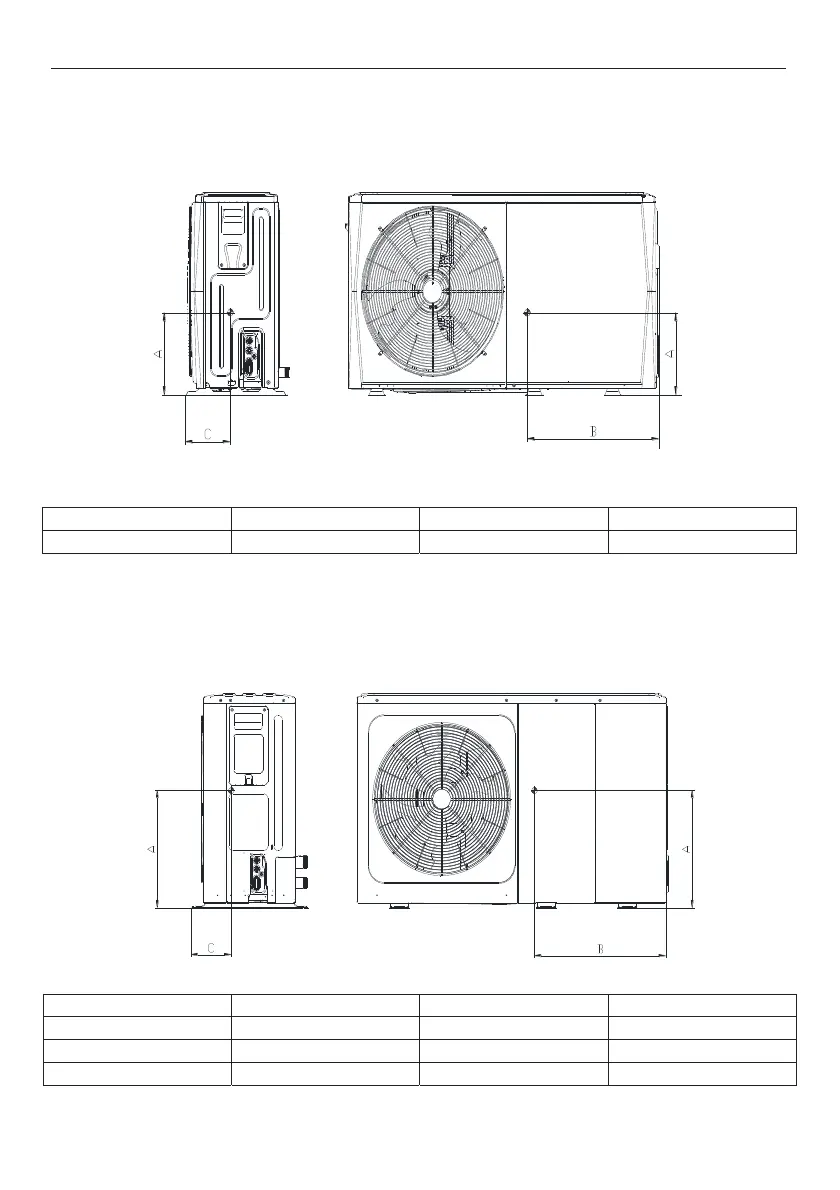

3 Dimensions and Center of Gravity

4/6kW models

Figure 2-3.1: HPM-14(22)CH40(65)AERIs R32-1 / HPM-14(22)CH40(65)AERIs R32-1H3 dimensions and center of gravity (unit: mm)

unit

˖

mm

Model

A

B

C

4/6kW

295

540

190

8/10/12/14/16kW models

Figure 2-3.2: HPM-28(34)CH84(100)AERIs R32-1(1H3)/HPM-41(48,53)CH120(140,155)AERIs R32-3(3H9) dimensions and center of gravity (unit:

mm)

unit

˖

mm

Model

A

B

C

8/10kW

330

580

280

12-16kW 1Ph

290

605

245

12-16kW 3Ph

200

605

245
