ENG VIVAX

12

5.2.2 Mode set control

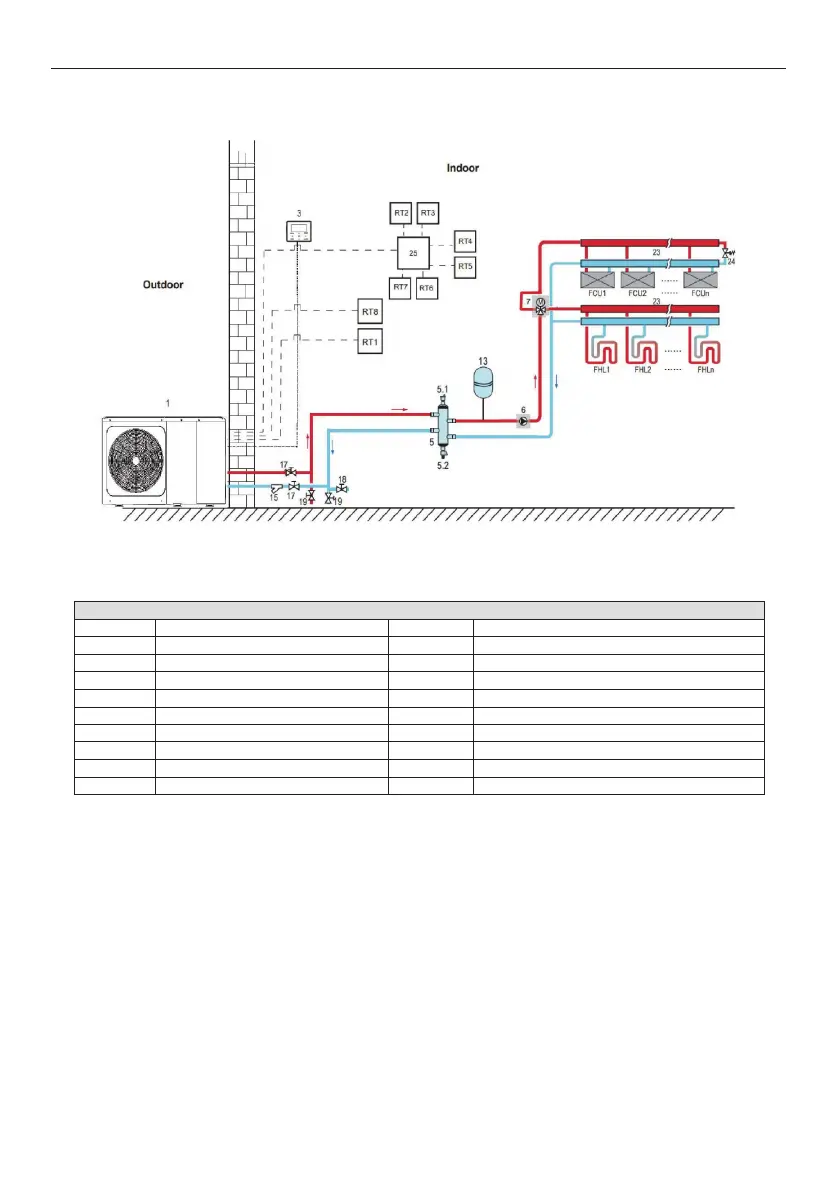

Figure 1-5.3: Application 2- Mode set control

Legend

1

Outdoor unit

17

Shut-off valve (Field supply)

3

User interface

18

Filling valve (Field supply)

5

Balance tank (Field supply)

19

Drainage valve (Field supply)

5.1

Automatic bleed valve

23

Collector/distributor (Field supply)

5.2

Drainage valve

24

Bypass valve (Field supply)

6

P_o: Zone A circulation pump (Field supply)

25

Hydraulic adapter box (Optional)

7

SV2: 3-way valve (Field supply)

RT 1…7

Low voltage room thermostat (Field supply)

13

Expansion vessel (Field supply)

RT8

High voltage room thermostat (Field supply )

15

Filter (Accessory)

FHL1…n

Floor heating loop (Field supply)

FCU1...n

Fan coil unit (Field supply)

Notes:

1. The example is just for application illustration; please confirm the exact installation method according to the installation manual.

Space heating

Cooling or heating mode is set via the room thermostat, water temperature is set on the user interface. 1) When any “CL”

of all the thermostats close, system will be set at cooling mode. 2) When any “HL” of all the thermostats close and all “CL”

open, system will be set at heating mode.

The circulation pumps operation

1) When the system is in cooling mode, which means any “CL” of all the thermostats closes, SV2(7) keeps OFF, P_o(6) starts

running;

2) When the system is in heating mode, which means one or more “HL” close and all “CL” open, SV2(7) keeps ON, P_o(6)

starts running.
