12
J1 L-N 230 Vac 50/60 Hz power supply
J2 1 Single pulse contact (NA) K
2 Common to contacts
3 Contact for photocells (NC)
4 Common to contacts
5 Safety strip contact during opening and closing
(NC)
6 Common to contacts
7 Positive flash light indicator (max 20 W)
8 24 Vdc positive voltage for safety strip self test
power supply
9 24 Vdc positive voltage for auxiliary unit power
supply
10 24 Vdc negative voltage for auxiliary unit power
supply
J3 11 Beacon power supply (24 Vdc)
12 Red LED connection to signal run down battery in
flashing lamp
13 K Cover single pulse contact (NA) on flashing
lamp
14 Common to contacts
J4 15 Antenna earthing
16 Antenna plant
J5 MOTOR + Faston connector for motor wiring - red wire
MOTOR – Faston connector for motor wiring - black wire
J6 ENCODER S Faston connector for encoder wiring - white wire
ENCODER - Faston connector for encoder wiring - black wire
J7 Battery Charger Connector for battery charger board
J8
DO NOT TOUCH THE JUMPER! THE
OPERATOR IS DISABLED IF THE JUMPER IS
REMOVED!
J9 LSC Contact for closing stop limit switch
LSO Contact for opening stop limit switch
COM Common to contacts
J10 Connector for no. 2 motor clutch SLAVE board
J11 RADIO Built-in radio module
J12 PRI TRANSF Faston connector for primary transformer
connection
J13 SEC TRANSF Faston connector per secondary transformer
connection
VR1 TRIMMER RUN Trimmer for high speed adjustment operations
VR2 TRIMMER
LOW SPEED
Trimmer for low speed adjustment operations
VR3 TRIMMER TCA Trimmer for automatic closing time adjustment.
DISABLED DEFAULT AND DL9 LED OFF
JP1 Activation of radio code clearing
JP2 Available area for future applications and
installations
P1 S1-PROG. Programming control lever
F1 T3,5A Mains supply input protection fuse
F2 T8A Motor protection fuse
TF 130 VA transformer

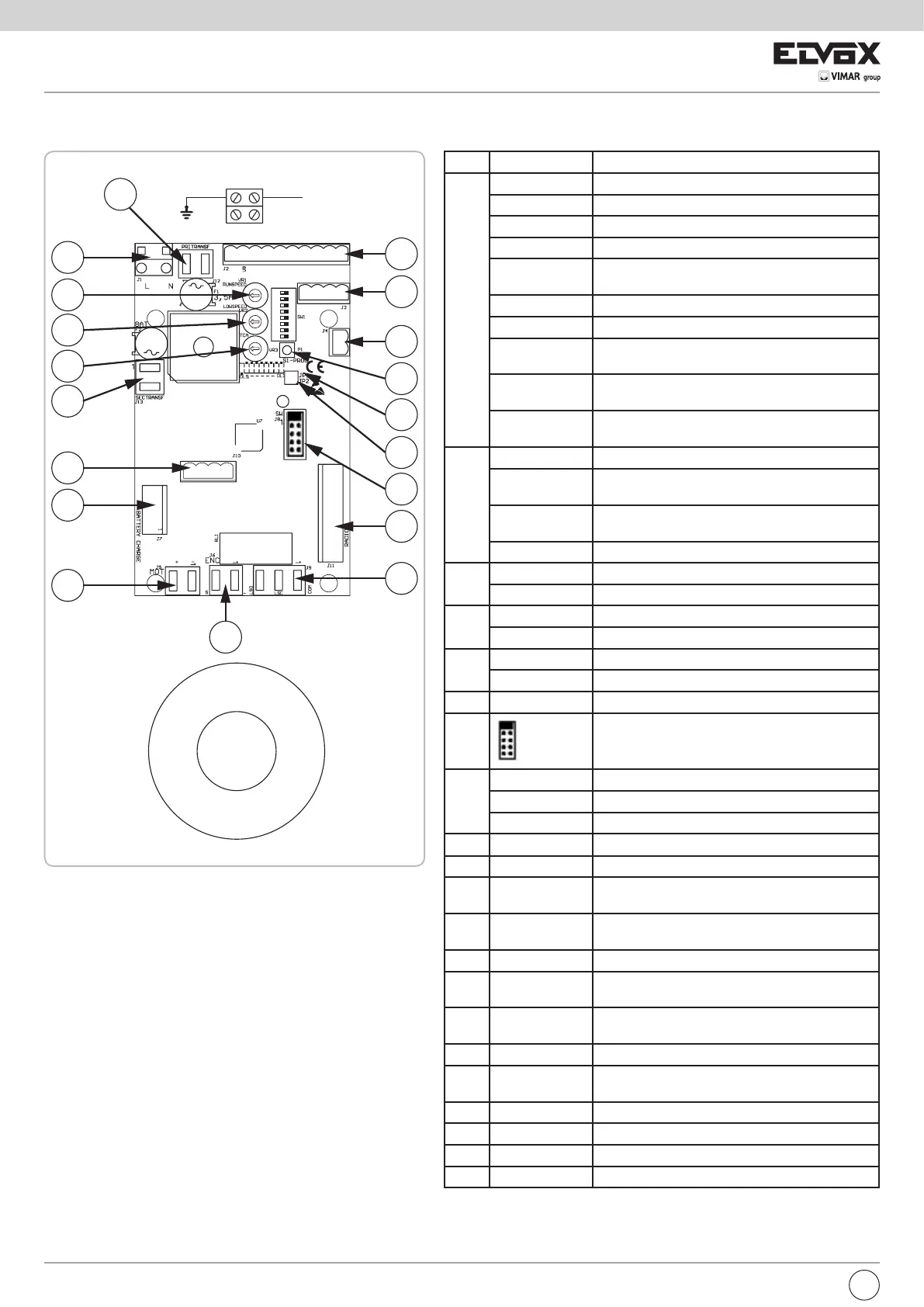

A - CONNEXIONS
1
11
15
16
121314
2345768910
J12
J1
VR1
VR2
VR3
J13
J10
J7
J5
J6
J2
J3
J4
S1
JP1
JP2
J8
J11
J9
TF
ON
1 2 3 4 5 6 7 8
MOTOR EARTHLINE EARTH
EN
