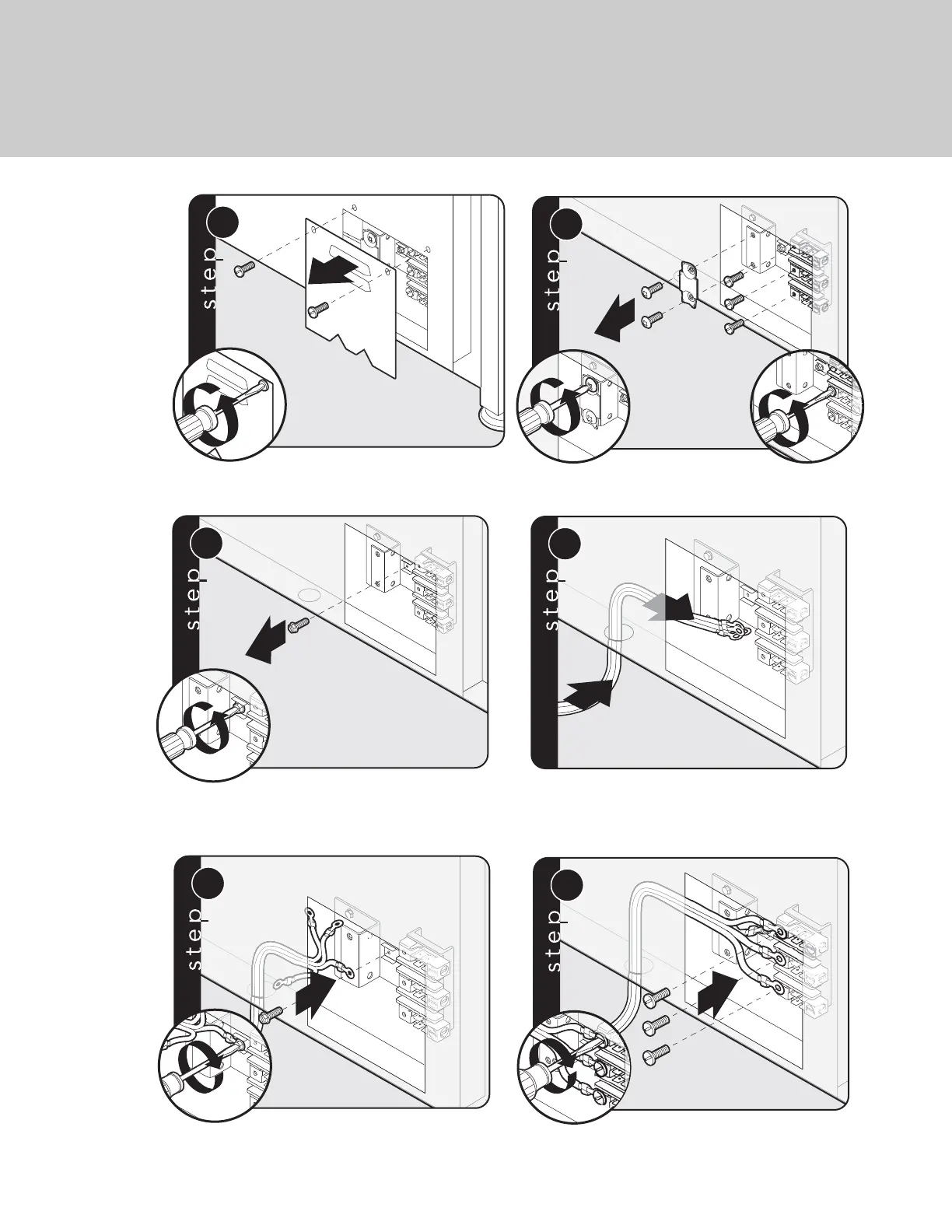

Electrical Connection (4-wire)
1
2
Remove access door.
Remove supply cord strain relief
bracket and three supply cord mounting screws on
the terminal block.
3
Remove grounding screw. Cut-off
and discard ground strap.
4
Feed supply cord up through hole in bottom
of range back.
5
Attach ground lead (green)
with ground screw that was removed.
6
Attach line #1 (red) and line #2 (black)
leads to outside terminal. Attach neutral wire (white) to
center terminal on terminal block.
