16
Cooktop
Bracket
Screw
Countertop
1
Cooktop
Bracket
Eye Bolt
Countertop
2

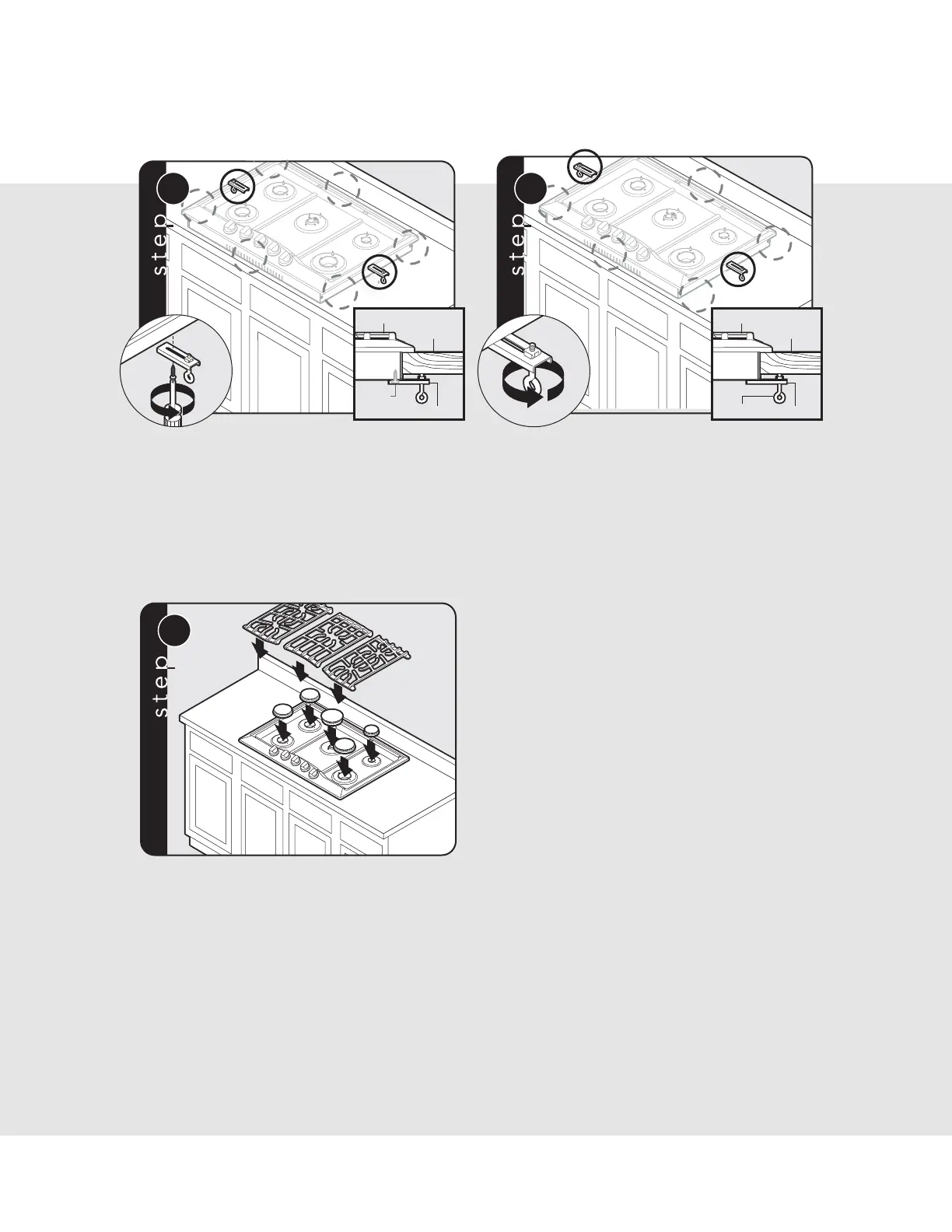

Screw hold down brackets to the burner box using the #10 x
1/2” sheet metal screws. There are 6 bracket assemblies
included. There must be a minimum of 2 brackets installed
with the possibility of up to 6 in locations noted depending
on installation
Screw the eye bolt into the self-retaining nut and
tighten firmly against bottom of countertop.
Bracket Installation
1
1
1
1
1
2
2
2
1
Final Installation
Replace the burner caps and grates.
Note:
The narrow edge of grate goes toward center of unit.
