Viking | RVL 3-Stack Install | MVSOE6301, MVSOC6301, MVWDE6301

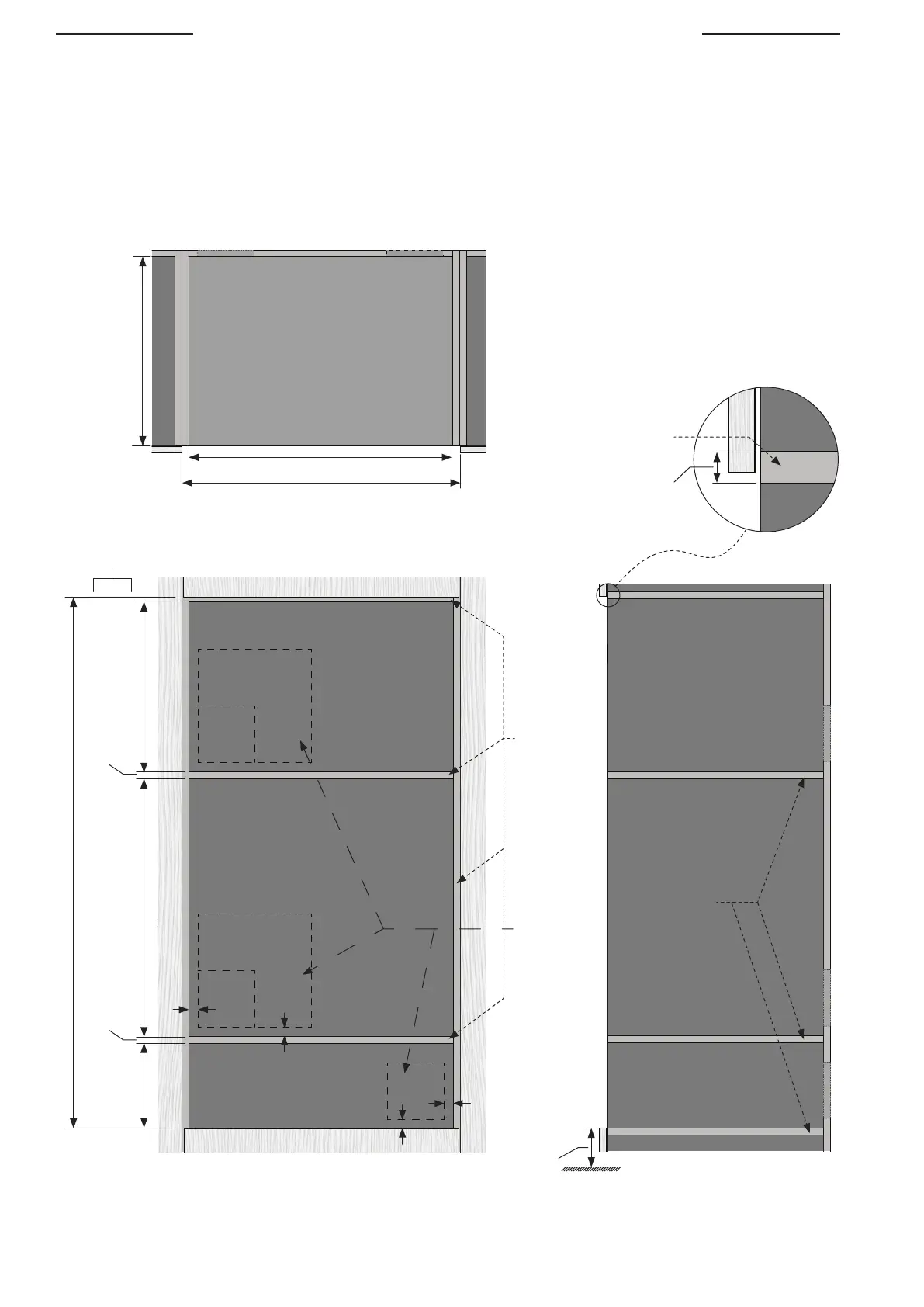

Standard Install Cabinetry Dimensions
3-Stack Cabinetry Specifications -
Single Wall Oven, Steam Oven & Warming Drawer
(MVSOE6301 & MVSOC6301 & MVWDE6301)
Top
Cutout Width: 28 ⁄" [724 mm]
Min Depth
23 ⁄" [590 mm]
Front
57 ⁄" [1454 mm]
9 ⁄"
[233 mm]
18 ⁄" [467 mm]27 ⁄" [706 mm]
⁄" [19 mm] ⁄" [19 mm]
Side
All exposed cabinetry wood
end grain should be finished or
finished with veneer.
Shelving:
⁄" [19 mm]
⁄" [19 mm]
Finishing Shelf
(Blocks view of cabinet interior)
Cutout Heights
Opening Between Adjacent Panels
30 ⁄" [766 mm]
Minimum
4/" [121 mm]
Floor
Location for power conduit hole.
Conduit hole should be at least 6x6",
but no more than 12x12". About 1"
oset from the edge of the cavity.
1"
1"
min: 6x6"
max: 12x12"
1"
1"
min: 6x6"
