Integrated
panel ush
with top and
side of door.
Magnetic Gasket
remove starting at a
corner, grasp and pull
away from the door.
Step 3: Cut and drill the integrated panel
Depending on your model cut the integrated door panel to
the dimensions shown in Figures 15
to 18. The window
cut out is for glass door models only. If your appliance has
a lock also drill the lock hole in the panel, see Figure 21.

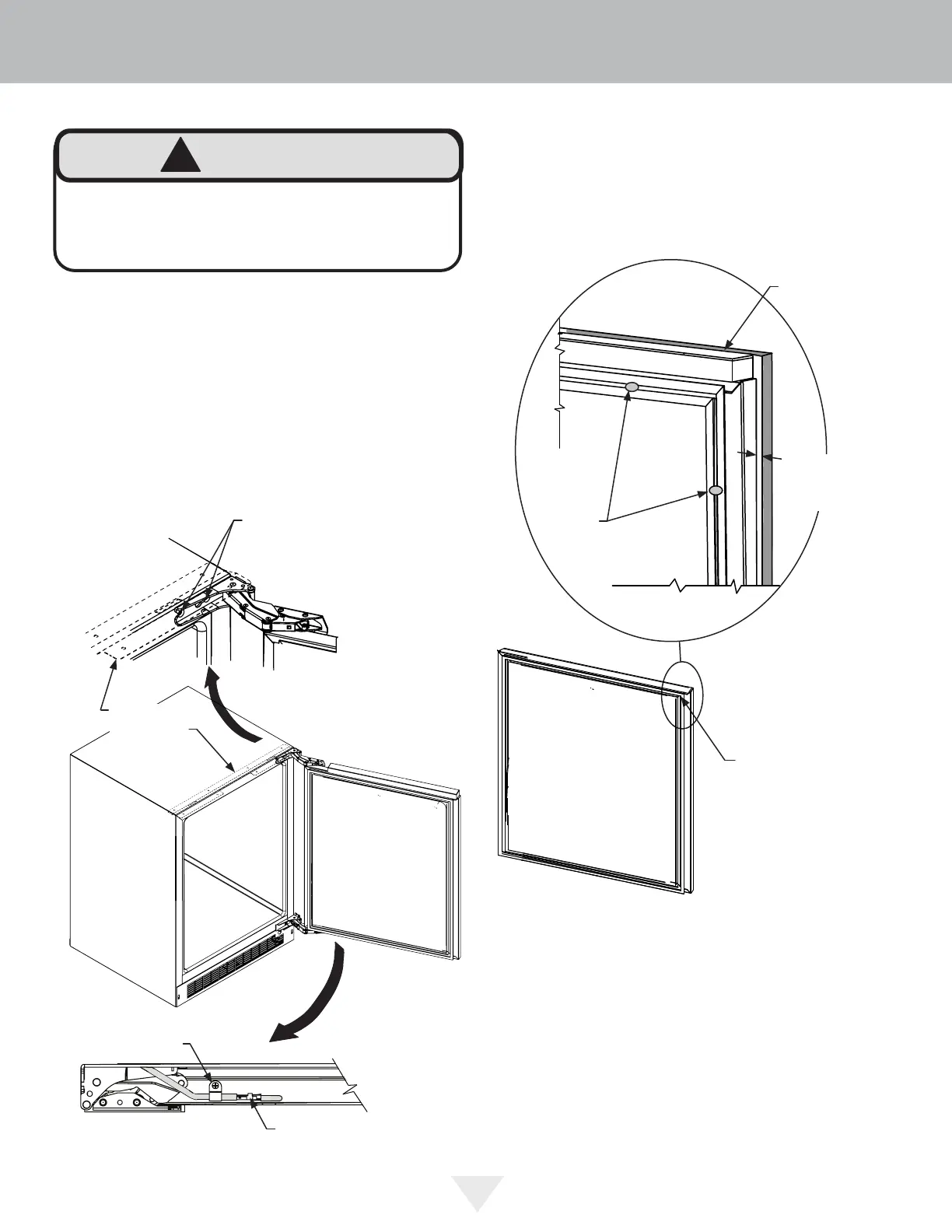

Integrated panel
to be centered
on width of door.
Figure 20
Holes in
gasket
retainer.
Figure 20a
Step 2: Remove the door gasket
With the door laying on a at surface and starting at a
corner of the door remove the magnetic door gasket from
the interior side of the door, see Figure 17. Set the gasket
aside on a at surface.
There are 10 holes in the gasket retainer extrusions, (3 on
each side and 2 at the top and bottom which are used to
fasten the panel to the front of the door. The screws are
provided in the literature pack along with the door lock,
which is provided on certain models.
Loosen (do not remove ) these
2 phillips head screws on the
top and bottom hinges
!
WARNING
Use extreme caution with the articulated hinges. The
hinge is self closing and many pinch points exist prior
to built-in installation. Do not remove the cabinet "Z"
bracket from the top of the cabinet.
Figure 19b
Bottom of
door
"P" clamp
and screw
Wire connector
see Figure 6
Figure 19
Figure 19a
Cabinet
"Z" Bracket
INTEGRATED PANEL INSTALLATION
13
