1) Decide where you want to place the appliance. Slide it
into place, being careful not to damage the floor, leaving
1" (2.5 cm) of clearance from the rear wall to allow room for
the anti-tip bracket.
2) Raise the rear leveling legs approximately
¹
⁄4" (6 mm) to
allow engagement with the anti-tip bracket. Level the unit by
adjusting all the leveling legs as required. Turning the
leveling leg counterclockwise will raise the unit and clock-
wise will lower the unit.
3) Make sure the appliance is in the desired location, then
mark on the floor the rear and side corner of the cabinet
where the anti-tip bracket will be installed. If the installation
does not allow marking the rear corner of the cabinet, then
make temporary lines on the floor marking the front corner of
the cabinet, excluding the door. Slide the appliance out of
the way. From the temporary line extend the sidewall line
back 21
1
⁄2" (54.6 cm) as shown in Figure 11.
4) Align the anti-tip bracket to the marks on the floor so the
side of the bracket lines up with the side of the cabinet mark,
and the "V" notches on the anti-tip bracket line up with the
end of the 21
1
⁄2" (54.6 cm) line (Rear of cabinet line).
5) Fasten the anti-tip bracket to the floor using the supplied
screw. (See Figure 11).
6) Slide the cabinet back into position, making sure the rear
cabinet leveling leg slides under the anti-tip bracket engag-
ing the slot.

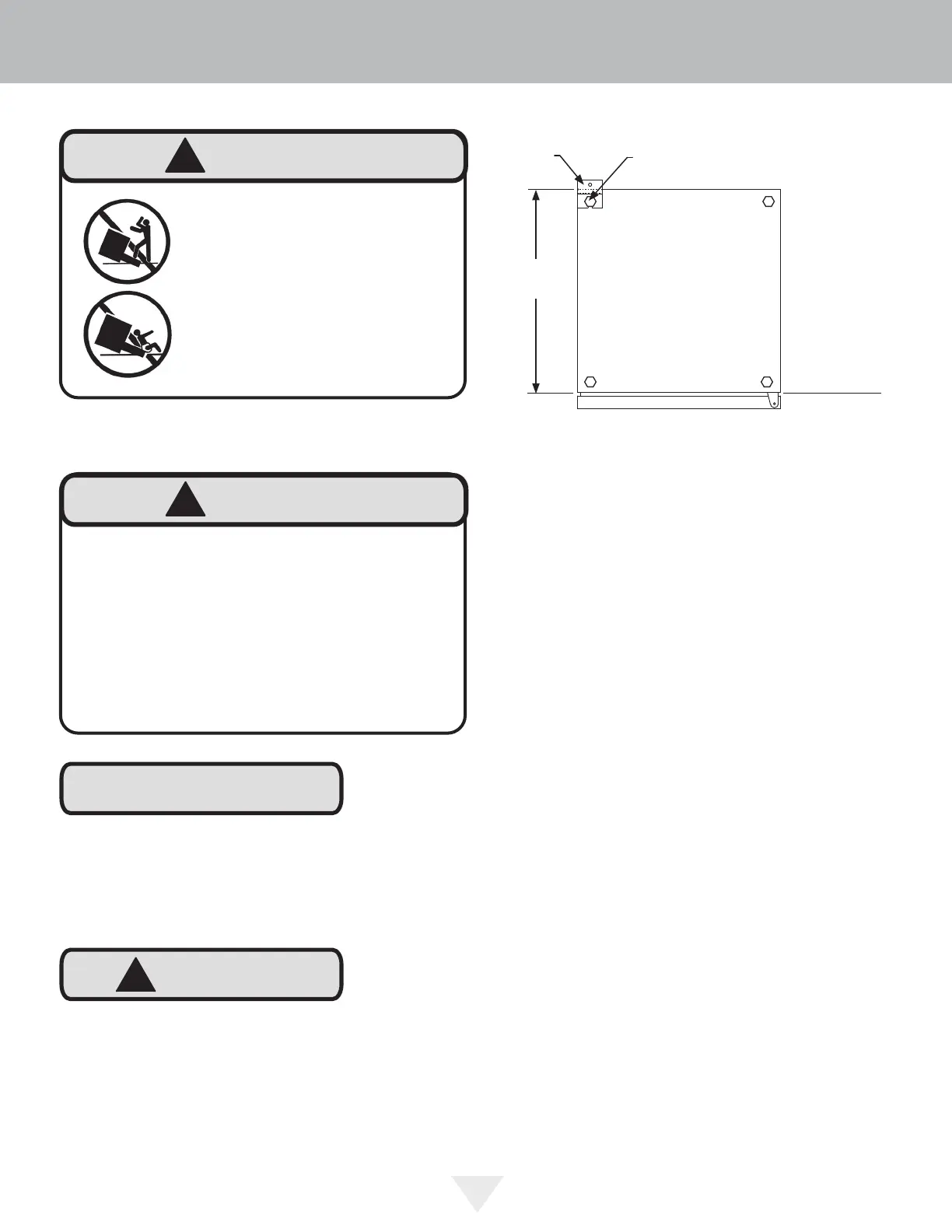

Front of cabinet
Figure 10
Step by step instructions for locating the
position of the bracket:
21
1
⁄2"
(54.6 cm)
Anti-Tip
Bracket
Leveling Leg
Bottom View of
Appliance
!
WARNING
• ALL APPLIANCES CAN TIP
RESULTING IN INJURY.
• INSTALL THE ANTI-TIP
BRACKET PACKED WITH
THE APPLIANCE.
• FOLLOW THE INSTRUC-
TIONS BELOW
!
CAUTION
NOTE
Any nished ooring should be protected with appropriate
material to avoid damage when moving the unit.
Floor Mount Installation
The anti-tip bracket is to be located on the floor in the left
or right rear corner of the wine cellar as shown in Figure
10.
If installing on a concrete oor, concrete fasteners are
required, (not included with the anti-tip kit).
Anti-Tip Device
!
WARNING
If your appliance is not located under a counter top
(freestanding), you must use an anti-tip device
installed as per these instructions. If the appliance is
removed from its location for any reason, make sure
that the device is properly engaged with the anti-tip
bracket when you push the appliance back into the
original location. If the device is not properly engaged,
there is a risk of the appliance tipping over, with the
potential for property damage or personal injury.
INSTALLING THE ANTI-TIP DEVICE
8
