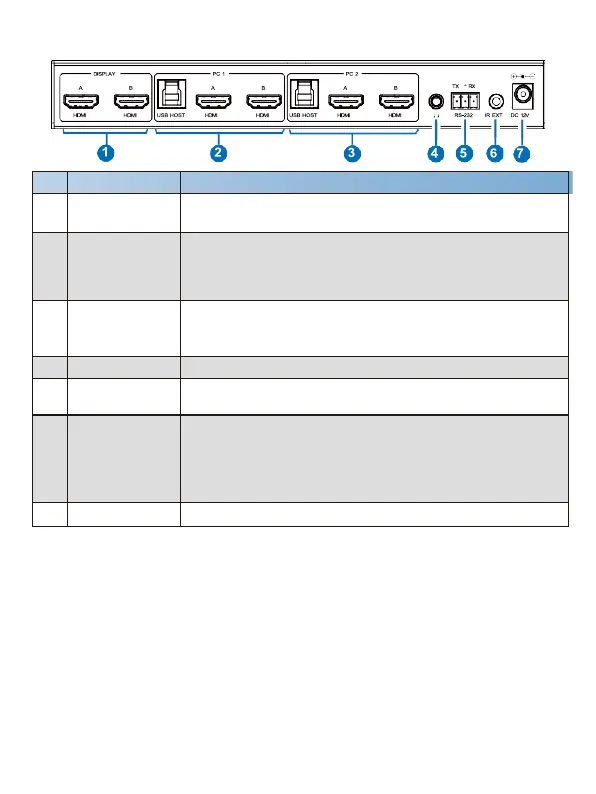

4.2 Rear Panel
No.
Name
Function Description
1
DISPLAY
HDMI A/B ports
HDMI signal output port, connected to HDMI display device
such as TV or Monitor with HDMI cable.
2
PC 1 ports
USB HOST: USB Host port, connected to PC 1. It can be
used for MCU software upgrade.
HDMI A/B: HDMI signal input ports, connected to HDMI
source device such as PC with HDMI cable.
3
PC 2 ports
USB HOST: USB Host port, connected to PC 2.
HDMI A/B: HDMI signal input ports, connected to HDMI
source device such as PC with HDMI cable.
4
L/R audio port
3.5mm analog audio output port.
5
RS-232 port
3-pin phoenix connector, connected to a PC or control system
for serial port upgrade.
6
IR EXT port
IR signal receiving port, connected with 38KHz IR Receiver
cable. If the IR signal receiving window of the unit is blocked
or the unit is installed in a closed area out of infrared line of
sight, the IR receiver cable can be inserted to the “IR EXT”
port to receive the IR remote signal.
7
DC 12V
DC 12V/1A power input port.
