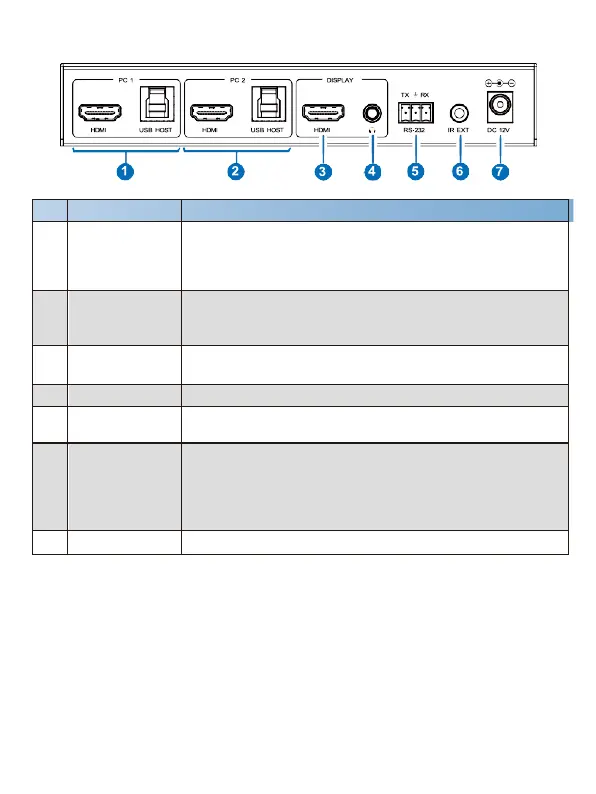

5.2 Rear Panel
No.
Name
Function Description
1
PC 1 ports
HDMI: HDMI signal input port, connected to HDMI source
device such as PC with HDMI cable.
USB HOST: USB Host port, connected to PC 1. It can be
used for firmware upgrade.
2
PC 2 ports
HDMI: HDMI signal input port, connected to HDMI source
device such as PC with HDMI cable.
USB HOST: USB Host port, connected to PC 2.
3
DISPLAY
HDMI port
HDMI signal output port, connected to HDMI display device
such as TV or Monitor with HDMI cable.
4
L/R audio port
3.5mm analog audio output port.
5
RS-232 port
3-pin phoenix connector, connected to a PC or control system
for serial port upgrade.
6
IR EXT port
IR signal receiving port, connected with 38KHz IR Receiver
cable. If the IR signal receiving window of the unit is blocked
or the unit is installed in a closed area out of infrared line of
sight, the IR receiver cable can be inserted to the “IR EXT”
port to receive the IR remote signal.
7
DC 12V
DC 12V/1A power input port.
