19User Manual Visit the ViewZ USA website at https://www.viewzusa.com

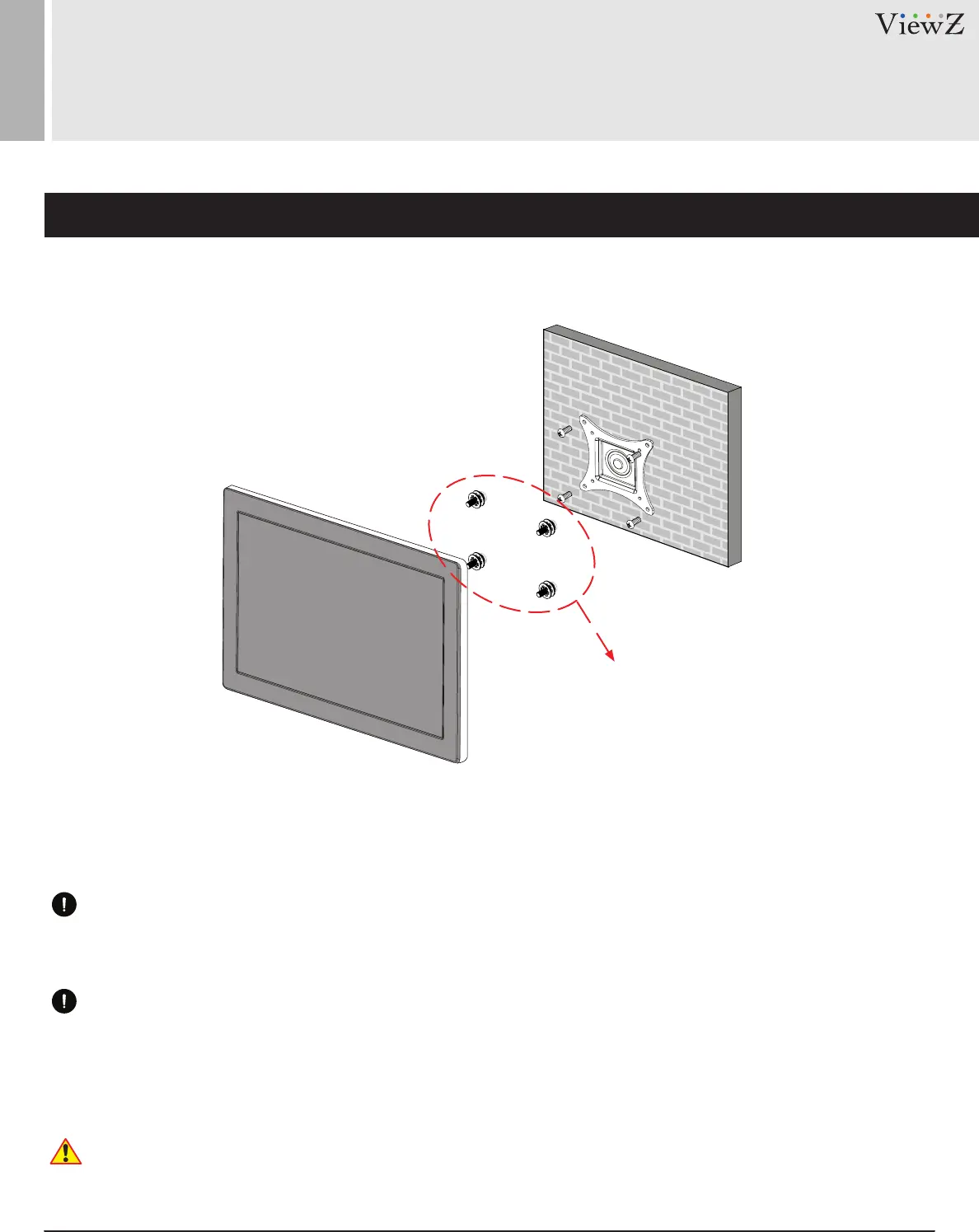

MOUNTING GUIDE
Wall Mounting (Optional)
VZ-CMX monitors are suitable for VESA wall mount (not included in the delivery).
1. VZ-24HX, VZ-27HX : VESA WALL MOUNT 75mm x 75mm, 100mm x 100mm
2. VZ-32HX : VESA WALL MOUNT 200mm x 200mm
3. VZ-43HX : VESA WALL MOUNT 300mm x 300mm
Aenon!
VZ-24HX, VZ-27HX : You must use 4 * M4 x L10 screws to assemble this monitor and the wall mount bracket.
VZ-32HX : You must use 4 * M6 x L8 screws to assemble this monitor and the wall mount bracket.
VZ-43HX : You must use 4 * M8 x L8 screws to assemble this monitor and the wall mount bracket.
Mounng Safety !
At least two people are recommended to safely install the mount.
WARNING !
If user uses screws longer than
M4 x L10 mm for VZ-24HX, VZ-27HX,
M6 x L8 mm for VZ-32HX,
M8 x L8 mm for VZ-43HX,
it may cause damage to the unit. Please use bolt of correct size and length as instructed.
M4 x L10 screws for VZ-24HX , VZ-27HX
M6 x L8 screws for VZ-32HX
M8 x L8 screws for VZ-43HX
