EN - English - Instructions manual
4 MNVKUPTPSUL_2222_EN

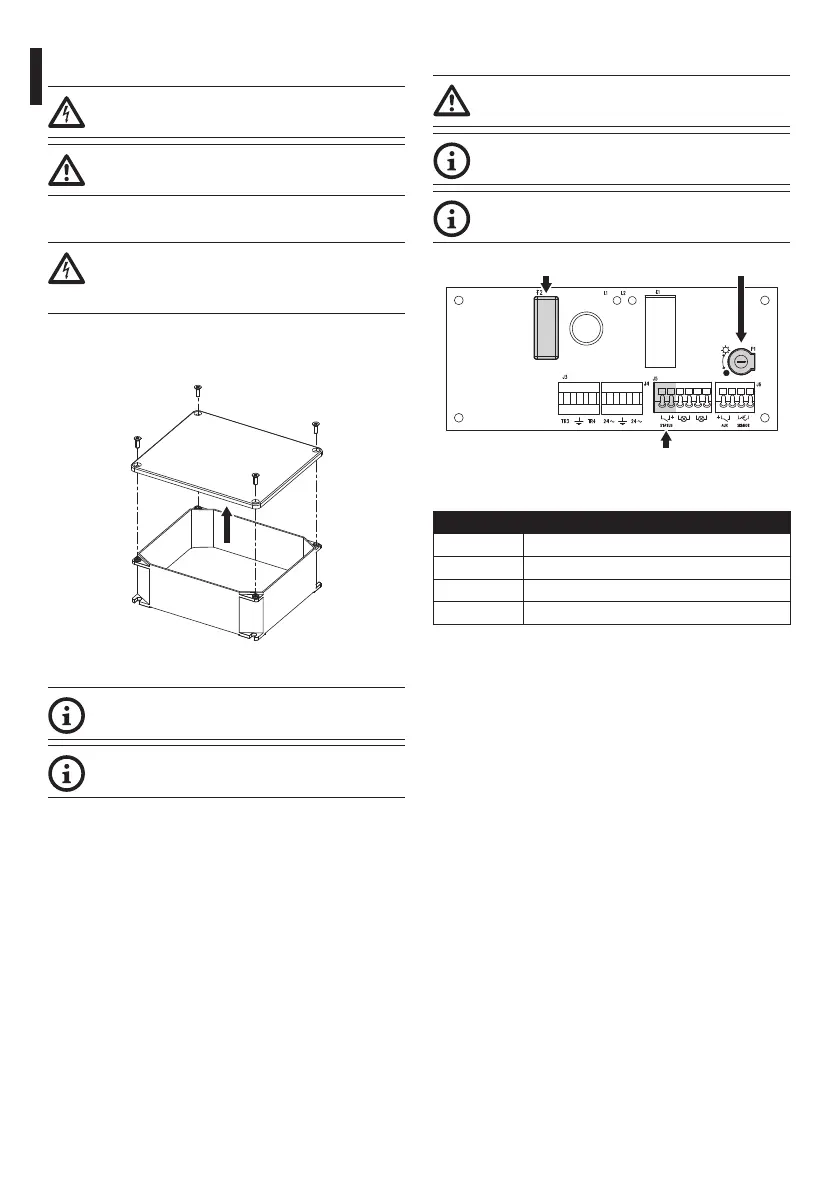

6 Assembling and installing
Before starting any operation, make sure the
power supply is disconnected.
The assembly and installation must be
performed only by skilled personnel.
6.1 Installation
Electrical connections must be performed
with the power supply disconnected and the
circuit-breaker open.
6.1.1 Open the box
Open the box taking care not to damage the seals.
Fig. 1
After installation and wiring, close the
product again.
Position the gaskets correctly and tighten the
cable glands.
6.1.2 Board description
Connect the safety earth to the relative
terminal of the power supply connector.
The board may appear dierent to that
illustrated.
Depending on the product version, the board
may not be equipped with all functions.
P1F2
J5
Fig. 2
BOARD DESCRIPTION
Connector Function
J5 Day/Night status
P1 Sensitivity adjustment trimmer
F2 Fuse holder and fuse
Tab. 1
