Instruction manual - English - EN
7MNVCNXW_2222_EN
6.6 Cooling circuit
The housing is equipped with an input and output
joint on the cooling circuit, both of which are
threaded 1/2” Gas.
Installation and dispersal of heat requirements
mean the position of the input and output joints on
the cooling circuit must be adapted to the specific
situation.

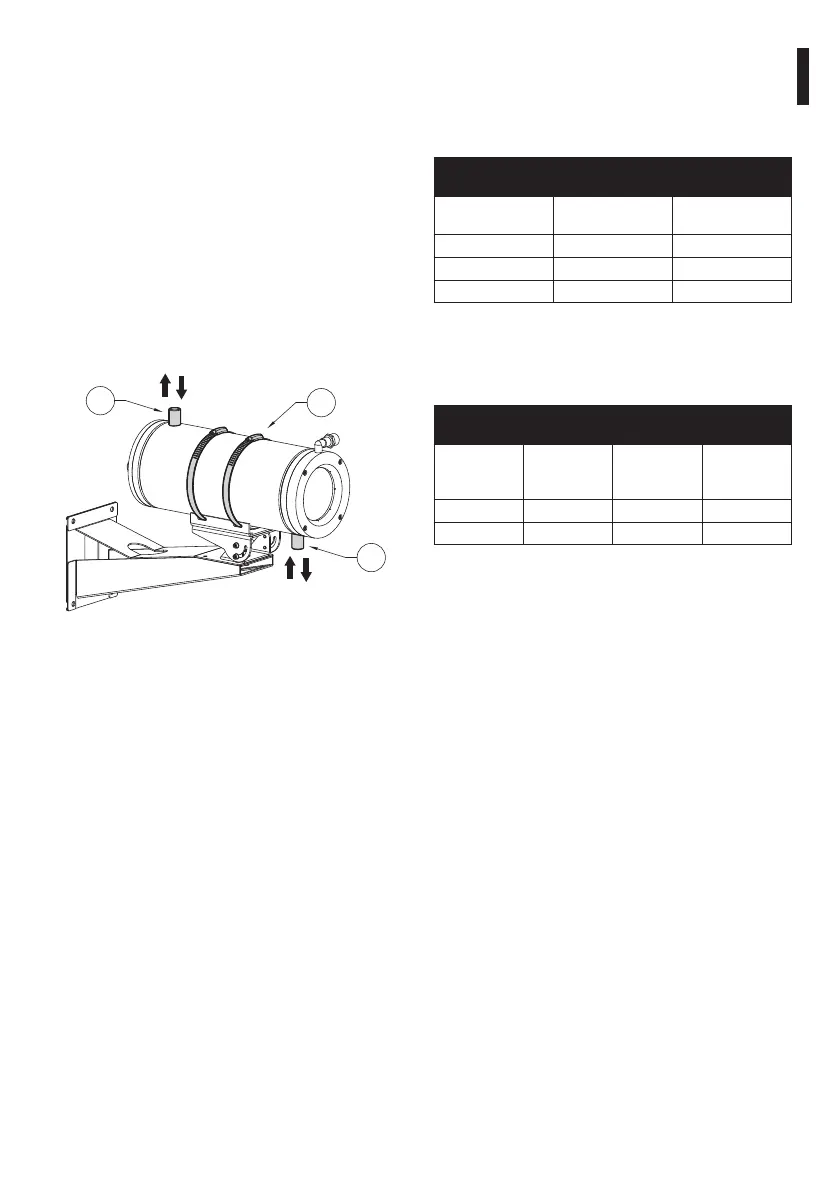

The two joints on the cooling circuit placed near
the front (01) and rear (02) flange can be used
indifferently for cooling liquid input and output.
If necessary, the housing can be rotated on its fixing
base by loosening the two fixing clips (03).
01
02
03
OUT/IN
IN/OUT
Fig. 7
6.6.1 Examples of system dimensioning
The following test data refer to use of water as
a cooling liquid, with an input temperature of
the housing of 20°C and a maximum ambient
temperature of 400°C.
WATER COOLING CIRCUIT WITH INPUT WATER AT A
TEMPERATURE OF 20°C
T environment
(°C)
Water flow rate
(l/min)
T inside housing
(°C)
200 2 32
300 2.2 41
400 6.5 44
Tab. 1
The following test data refer to cooling with air, at
an input temperature of the housing of 17°C and a
maximum ambient temperature of 80°C.
AIR COOLING CIRCUIT WITH INPUT AIR AT A TEMPERATURE OF
17°C
T envi-
ronment
(°C)
Air pressure
(bar)
Air capacity
(m³/h)
T inside
housing
(°C)
80 1 10 45
80 2 15 35
Tab. 2
