Instruction manual - English - EN
7MNVCNTW_2222_EN
6.6 Front flange with air barrier
The flange with air barrier is equipped with a 1/4”Gas
thread joint and a reduction from 1/2”Gas to 1/4”Gas.
This joint must be connected to the circuit with
compressed air supplied by a compressor.

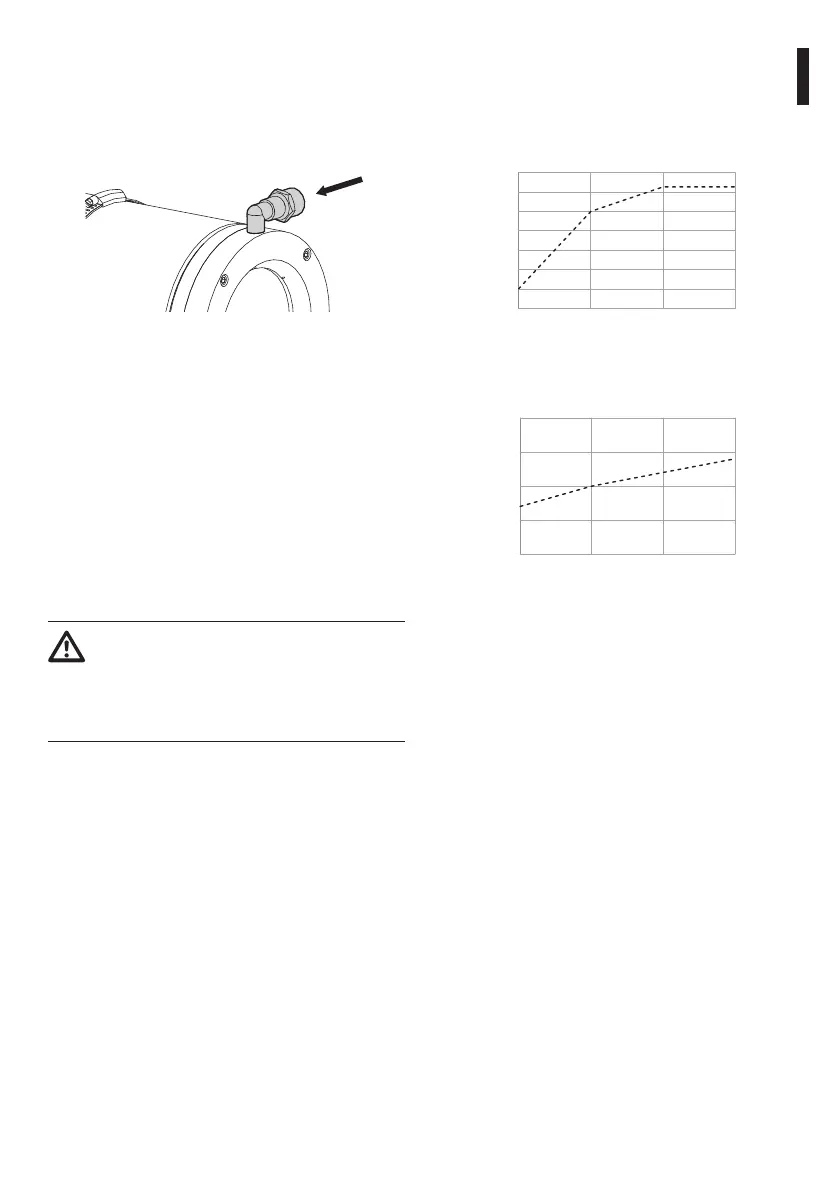

Fig. 5
6.6.1 Suggested air capacity and
pressure
Upstream of the housing , you are advised to install:
• Pressure gauge.
• Adjustment valve.
• Optional filters unit for compressed air cleaning
(NXFIGRU2, filtration 0.1μm).
This allows you to:
• Know and adjust the pressure to supply to the
air barrier.
• Conduct simple maintenance.
Too high pressure values can cause
breakage of the window. Strictly comply
with the maximum values listed below:
• System pressure: 4bar max
• Recommended minimum pressure: 2bar
For example purposes, the system pressure-output
pressure and system pressure-air capacity graphics
are outlined which are useful for compressor
dimensioning. All the values must be considered as
purely approximate.
0
0.4
0.2
0.6
0.8
1
1.2
1.4
1 2 3 4
System pressure (bar)
Output pressure (bar)
Fig. 6
1
0
0
1 2 3 4
10
5
15
20
System pressure (bar)
Air capacity (m³/h)
Fig. 7
