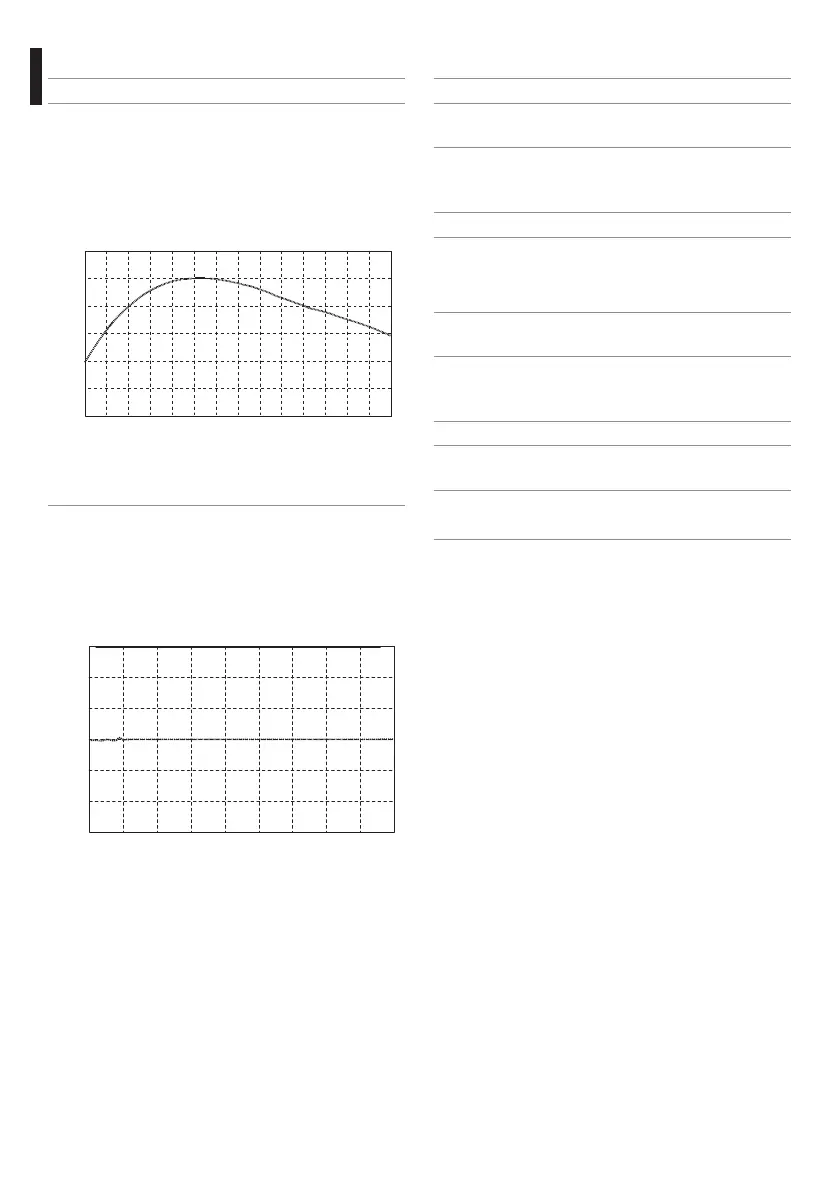

EN - English - Instruction manual
10 MNVCNTW_2222_EN
10.3 Housing's window
Usable diameter: 65mm (2.6in)
Zinc selenide (ZnSe) window
• Thick: 4mm (0.16in)
• Operating temperature: 200°C (392°F) max
• Spectral range: from 7.5μm up to 14μm
Wavelength [μm]
Transmittance [%]
ZnSe 4mm, AR/AR
70
75
80
85
90
95
100
10 1187
7,5 8,5 9,5 10,5 11,5 12,5 13,5
9 12 13 14
Fig. 10 Zinc selenide transmittance.
Sapphire glass window
• Thick: 1mm (0.03in)
• Operating temperature: 400°C (752°F) max
• Spectral range: from 0.75μm up to 4.5μm
2
2,5
10,5
70
75
80
85
90
95
100
1,5 3 3,5 4
4,5 5
Transmittance [%]
Sapphire glass 1mm
Wavelength [μm]
Fig. 11 Sapphire glass transmittance.
10.4 Electrical
Camera power supply
IN from 100Vac up to 240Vac, 50/60Hz - OUT 12Vdc,
1.25A
IN 230Vac, 50/60Hz - OUT 24Vac, 400mA
10.5 Environment
For indoors and outdoors installation
Maximum working temperature with water cooling:
• zinc Selenide glass: 200°C (392°F)
• sapphire glass window: 400°C (752°F)
Maximum working temperature with air cooling:
80°C
Relative humidity: from 5% up to 95%
10.6 Certifications
Electrical safety (CE): EN60065, EN62368-1
Electromagnetic compatibility (CE): EN50130-4,
EN61000-6-3
IP protection degree (EN60529):
• IP66
EAC certification
