EN - English - Instruction manual
8 MNVCHTV32_2222_EN

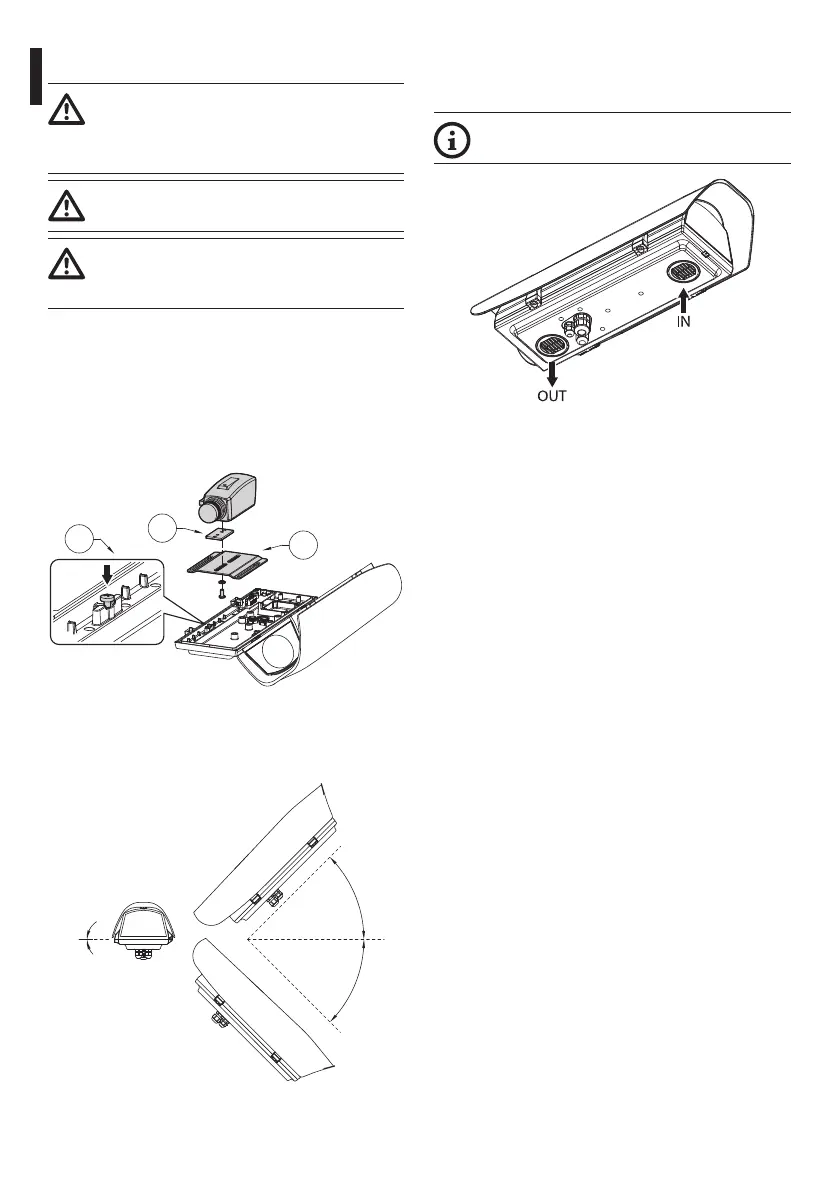

6.4 Connecting the power supply
CAUTION! The type of cable used must be
compatible with the planned use. Comply with
the national regulations in force on electrical
installation.
Connect the safety earth to the relative terminal of
the J1 connector.
Earth cable should be about 10mm longer than
the other two, so that it will not be disconnected
accidentally if pulled.
Insert the cables inside the housing using the cable glands.
The cable glands are suitable for conductors with diameters of
between 5mm and 10mm. The section of the cable inside the
housing must be sufficiently long to allow connection. Suitably
lock the cable glands.
Remove the conductors protective sheathing and connect
them to terminal (J1, 6.3 Board description, page 7).
01
03
02
To guarantee weatherproof protection, install the housing on
the support following the inclination limits as shown in the
picture.
0˚
45°
45°
Fig. 4 Maximum tilt of the transversal axis: 0°.
Maximum tilt of the longitudinal axis: ±45°.
6.5 Installation of the version
with double filter for air renewal
During installation pay attention to the
orientation of the air inlet filter fins.
Fig. 5
Depending on the angle of inclination of the
housing, the orientation of the filter fins must
prevent water penetrating in case of rain:
