Instruction manual - English - EN
7MNVCHOV32_2222_EN

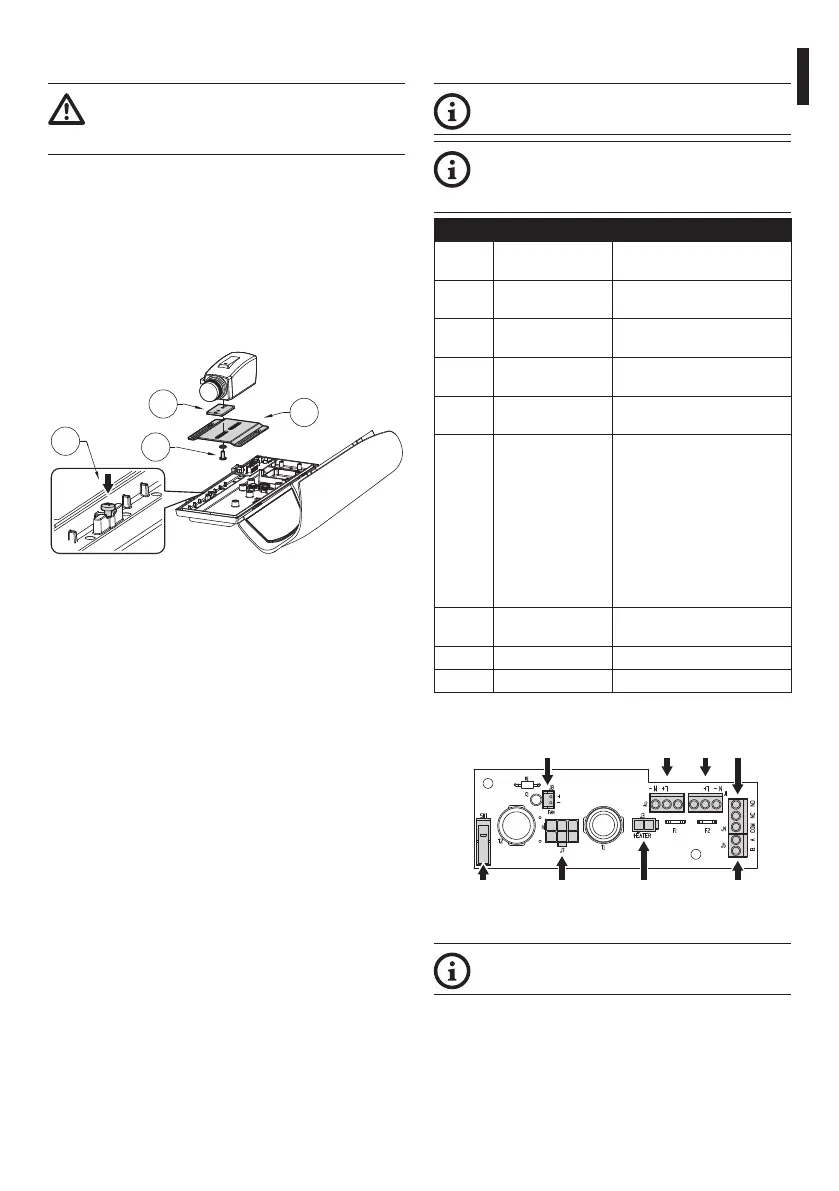

6.2 How to install the camera
Power supply can be provided by the
board supplied with the product. Make
sure the voltage values are appropriate.
Open the housing as described in the relative
chapter (6.1 Housing opening, page 6).
Partially loosening the fastening screws (01).
Remove the internal slide (02) by sliding it until the
holes coincide with the slide fastening screws.
Fasten the camera with the 1/4" screw (03). To
position the camera and lens correctly, if necessary,
use the supplied spacers. (04).
01
03
02
03
Fig. 2
Reposition the internal slide and tighten the screws
that had been loosened previously.
Remove the conductors protective sheathing and
connect them to terminal (J5, 6.3 Board description,
page 7).
The camera’s power supply cable conductors must
be tied up with a cable tie next to the terminal. Keep
the signalling and power supply cables separated
from each other.
6.3 Board description
The board may appear different to that
illustrated.
Depending on the product version, the
board may not be equipped with all
functions.
BOARD DESCRIPTION
Connec-
tor
Function Notes
J1 Power supply for
the board (V
IN)
J2 Auxiliary output
(VOUT)
Same voltage applied on J1
J3 Heater power
supply
J4 Tamper switch
contacts
Only some models
J5 Camera power
supply (V
OUT)
Depending on the power sup-
ply model the two connectors
have different use.
If powered in 12vdc connector
A corresponds to polarity +,
while connector B corresponds
to polarity - .
If powered in 24vac connectors
A and B are equivalent and
correspond to the voltage Vac.
J7 Power supply conn
ector/jumper
Jumper present only in ventila
-
ted models
J8 Fan power supply
SW1 Tamper switch Only some models
Tab. 1
J1 J4J2J8
J7SW1 J3
J5
Fig. 3
Nominal section of the cables used: from
0.2mm² (24AWG) up to 2.5mm² (13AWG).
