Instruction manual - English - EN
7MNVCHGV_2222_EN
6.2 Fixing with wall mount
bracket
Fasten the housing to the bracket using the screws
provided.

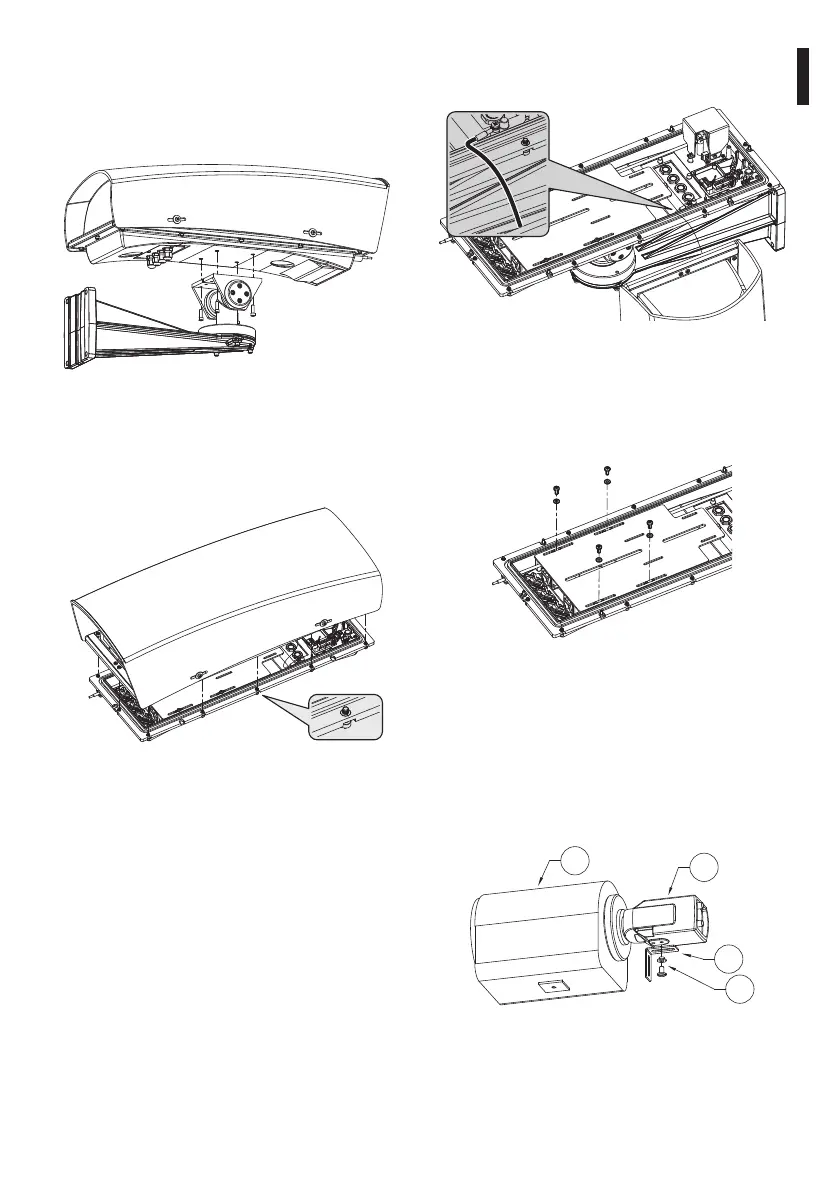

Fig. 2
6.3 Housing opening
Loosen the leak-proof screws placed on the sides
and lift the upper part of the housing.
Fig. 3
Lift the upper body with the integrated sunshield
and leave it hanging on the anchorage cable.
Fig. 4
6.4 Slide removal
To remove the slide it is necessary to unscrew the
fixing screws as shown in figure.
Fig. 5
6.5 Fasten the lens and the
camera
Fasten the camera (02) to the lens (01).
Fasten the L shaped bracket (03) to the camera using
the nylon washer and the 1/4" screw (04).
01
02
03
04
Fig. 6
