Instruction manual - English - EN
11MNVCHGV_2222_EN

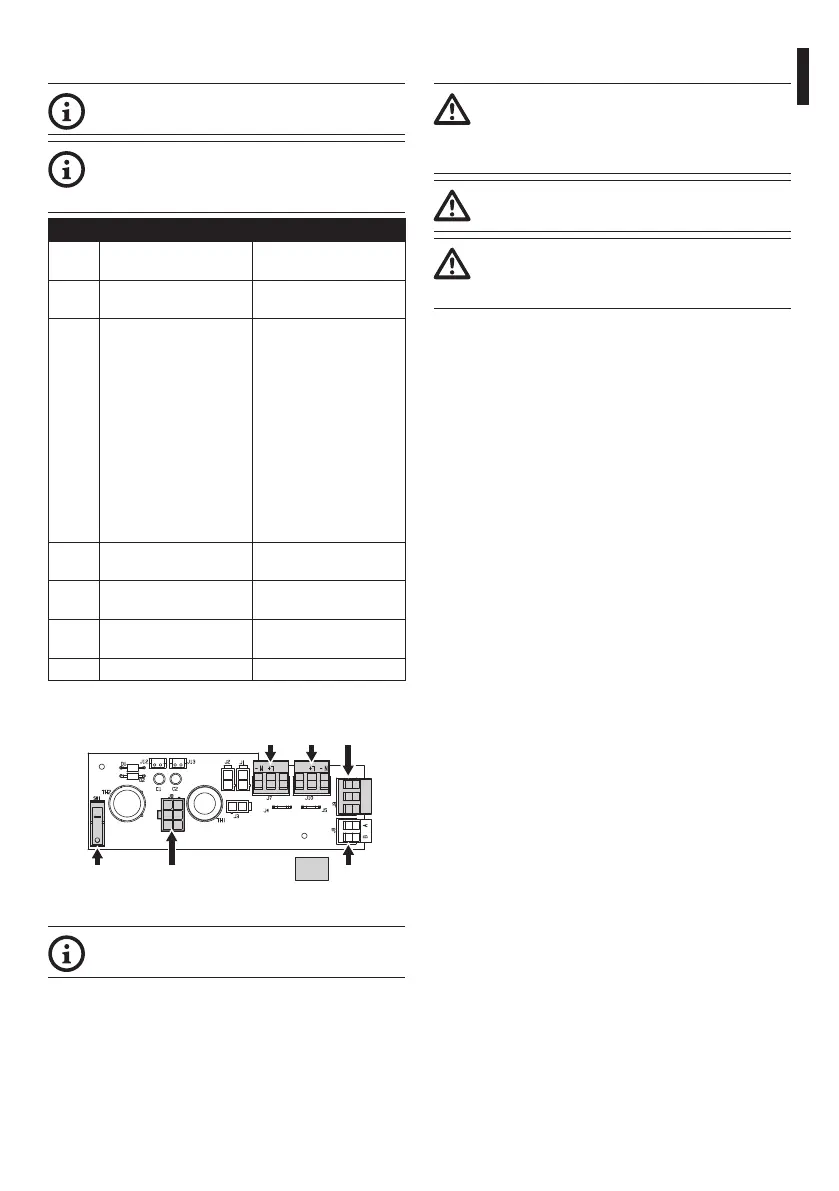

6.8 Board description
The board may appear different to that
illustrated.
Depending on the product version, the
board may not be equipped with all
functions.
BOARD DESCRIPTION
Con-
nector
Function Notes
J6 Camera power supply
(V
OUT)
J7 Power supply for the
board (VIN)
Depending on the power
supply model the two
connectors have different
use.
If powered in 12vdc
connector A correspon-
ds to polarity +, while
connector B corresponds
to polarity - .
If powered in 24vac con-
nectors A and B are equi-
valent and correspond to
the voltage Vac.
J8 Power supply/jumper
connector
J9 Tamper-proof switch
contacts (SW1)
Jumper present only in
ventilated models
J10 Auxiliary output (V
OUT) Same voltage applied
on J7
SW1 Tamper-proof switch Only some models
Tab. 1
J9
J6 J8 SW1
J7 J10
Fig. 20
Nominal section of the cables used: from
0.2mm² (24AWG) up to 2.5mm² (13AWG).
6.9 Connecting the power supply
CAUTION! The type of cable used must be
compatible with the planned use. Comply
with the national regulations in force on
electrical installation.
Connect the safety earth to the relative
terminal of the power supply connector.
Earth cable should be about 10mm longer
than the other two, so that it will not be
disconnected accidentally if pulled.
Insert the cables inside the housing using the cable
glands. The cable glands are suitable for conductors
with diameters of between 5mm and 10mm. The
section of the cable inside the housing must be
sufficiently long to allow connection. Suitably lock
the cable glands.
Connect the conductors to the terminal (board
power supply, 6.8 Board description, page 11).
