EN - English - Instruction manual
8 MNVCHGV_2222_EN

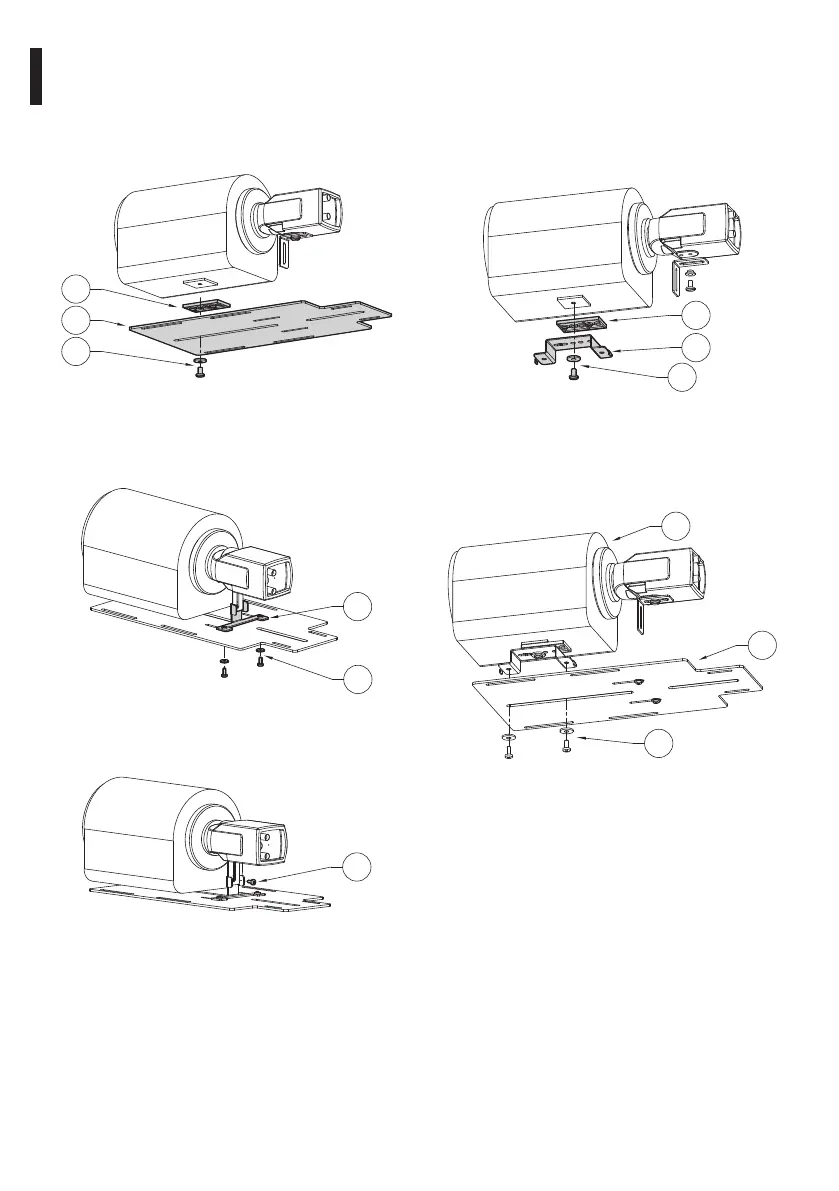

Position the lens on the slide (02) interposing the
plastic spacer (01). Fasten everything with the nylon
washer and the 1/4" screw (03).
If necessary, use the additional spacers to correctly
position the camera and lens.
01
02
03
Fig. 7
Fasten the aluminium plate (01) on the slide by
means of the screws and relative washers (02).
01
02
Fig. 8
Fasten the L shaped bracket with the screw (01).
01
Fig. 9
6.5.1 Use the spacer H-20
You can fasten a spacer H-20 (02). Fasten the camera
and the L shaped bracket (6.5 Fasten the lens and
the camera, page 7). Interpose a plastic spacer (01) of
the required thicknessand fix it by means of washer
and screw (03).
02
03
01
Fig. 10
Position the lens with the spacer (01) on the slide (02)
and fasten using the washers and the screws (03)
supplied.
03
01
02
Fig. 11
Finish the installation as shown in the images (Fig. 8,
page 8 e Fig. 9, page 8).
